M-SATA Hard Drive

Removing The M-SATA Hard Drive

1. Follow the procedures in Before Working On Your Computer.
2. Remove the battery.
3. Remove the base cover.
4. Remove the hard drive.

NOTE: If you need to remove the M-SATA hard drive to subsequently remove any
other part in the computer, then do not remove the hard drive bracket and the SATA
interposer.

NOTE: The Latitude E6220 offers the SATA or M-SATA hard drive.

NOTE: The SATA interposer must be removed and installed while removing and
installing the M-SATA hard drive

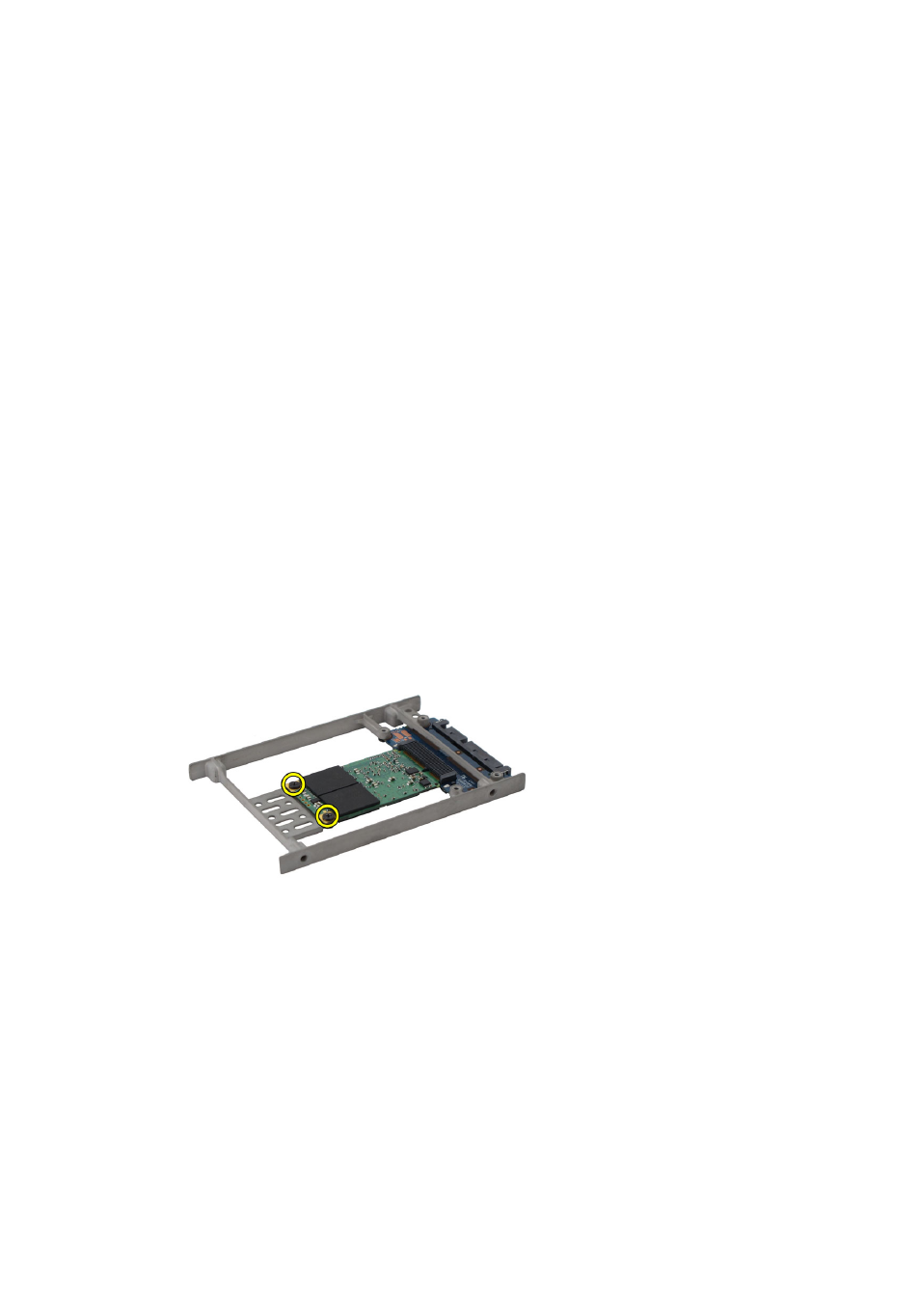

5. Remove the screws that secure the Solid State Drive (SSD) in place.

6. Remove the SSD.
