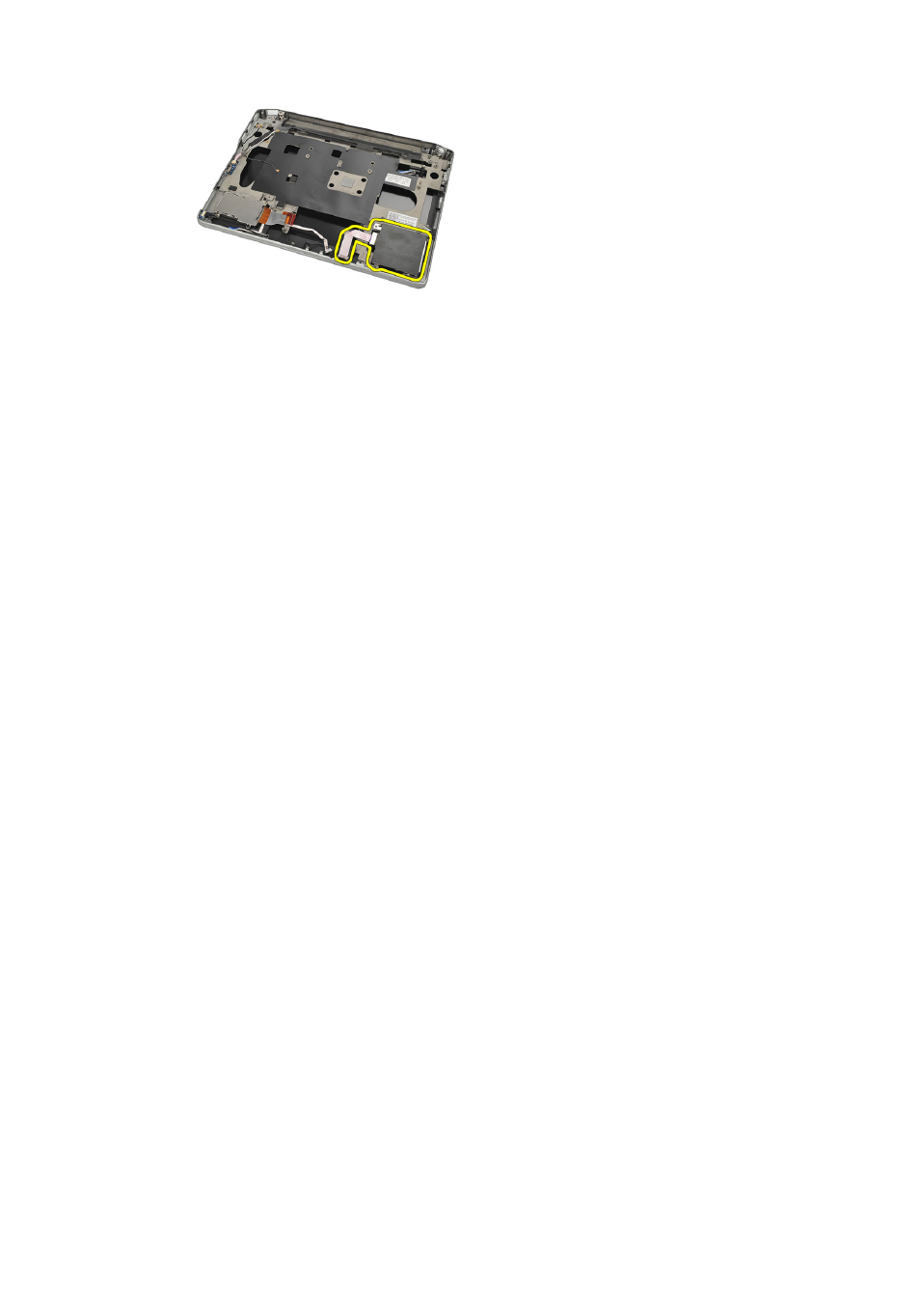

Installing The Smart Card Cage
1. Insert the smart card cage into its compartment.
2. Tighten the screw to secure the smart card cage.
3. Install the system board.
4. Install the coin-cell battery.
5. Install the DC-in-Connector.
6. Install the heatsink.
7. Install the bottom chassis.
8. Install the keyboard.
9. Install the palm rest.
10. Install the speakers.
11. Install the bluetooth module.
12. Install the Wireless Wide Area Network (WWAN) card.
13. Install the Wireless Local Area Network (WLAN) card.
14. Install the hard drive.
15. Install the memory.
16. Install the base cover.
17. Install the subscriber identity module (SIM) card.
18. Install the battery.
19. Install the secure digital (SD) Card.
20. Follow the procedures in After Working Inside Your Computer.
