13

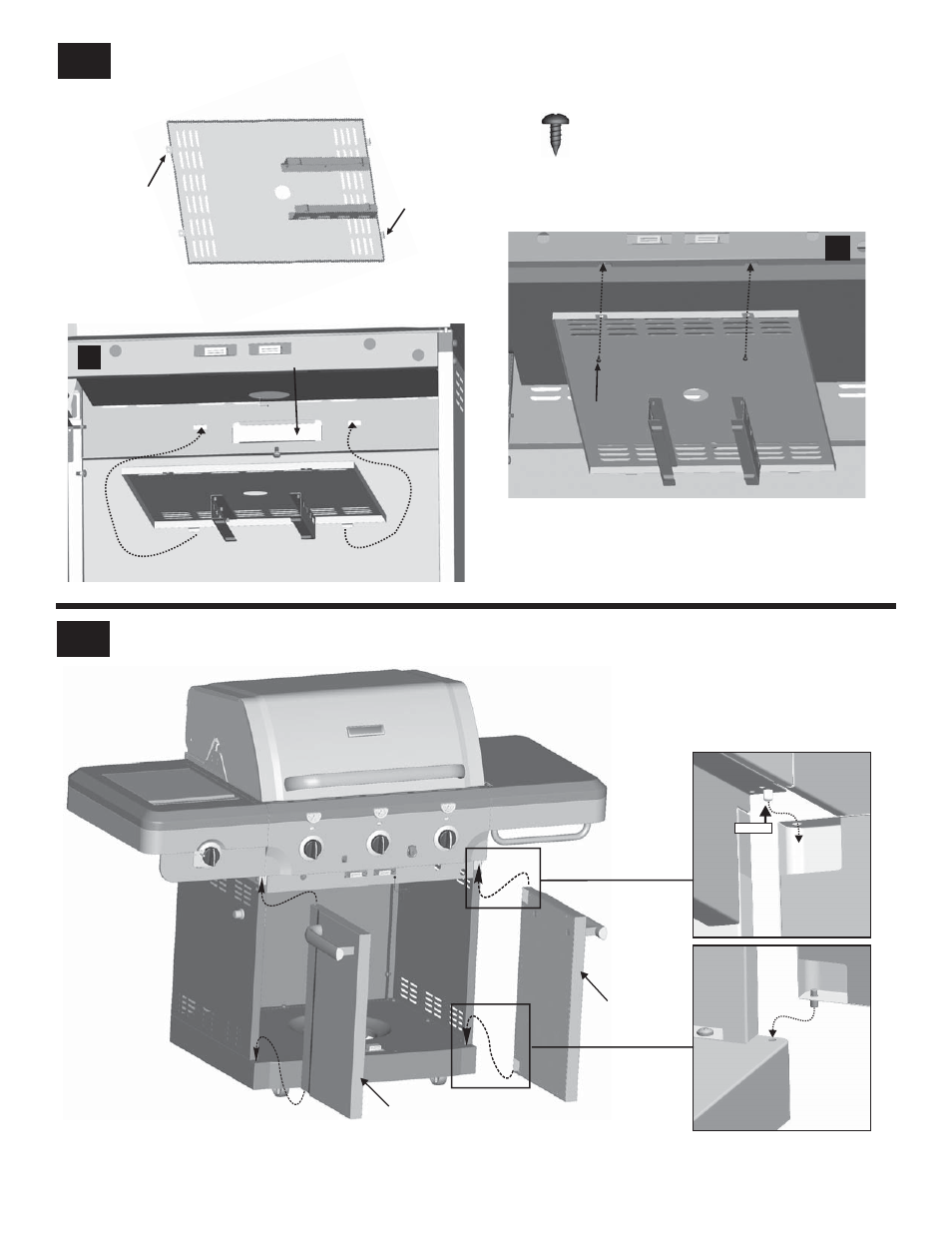

Inside of cart, insert rear shield tabs into slots next to grease tray opening on upper back panel, shown A.
Attach front shield tabs(with holes) under front brace with two #8x3/8” self-tapping screws, shown B.
Tank heat shield
Cart lower back panel
Front Brace
#8x3/8”
#8x3/8”
self-tapping screw
self-tapping screw
Qty. 2
for clarity of illustration
Note: some parts omitted
B
Upper back panel
Grease tray opening
rear tab
front tab
(w/hole)
Rear
Front
Tank heat shield
A
14
Insert hinge pin on bottom of doors into hole in bottom shelf. Press upper hinge pin in front brace, align hinge hole on top of
door, and release hinge pin into door.
Left door
Hinge pin
on bottom
of door
Top of
door
PRESS
Right door
23
