Parts of the Printer
Dell 7330 Mono Laser Printer
2-2
Parts of the Printer
This section includes:
■ Front View on page 2-2
■ Rear View on page 2-2
■ Internal Components on page 2-3

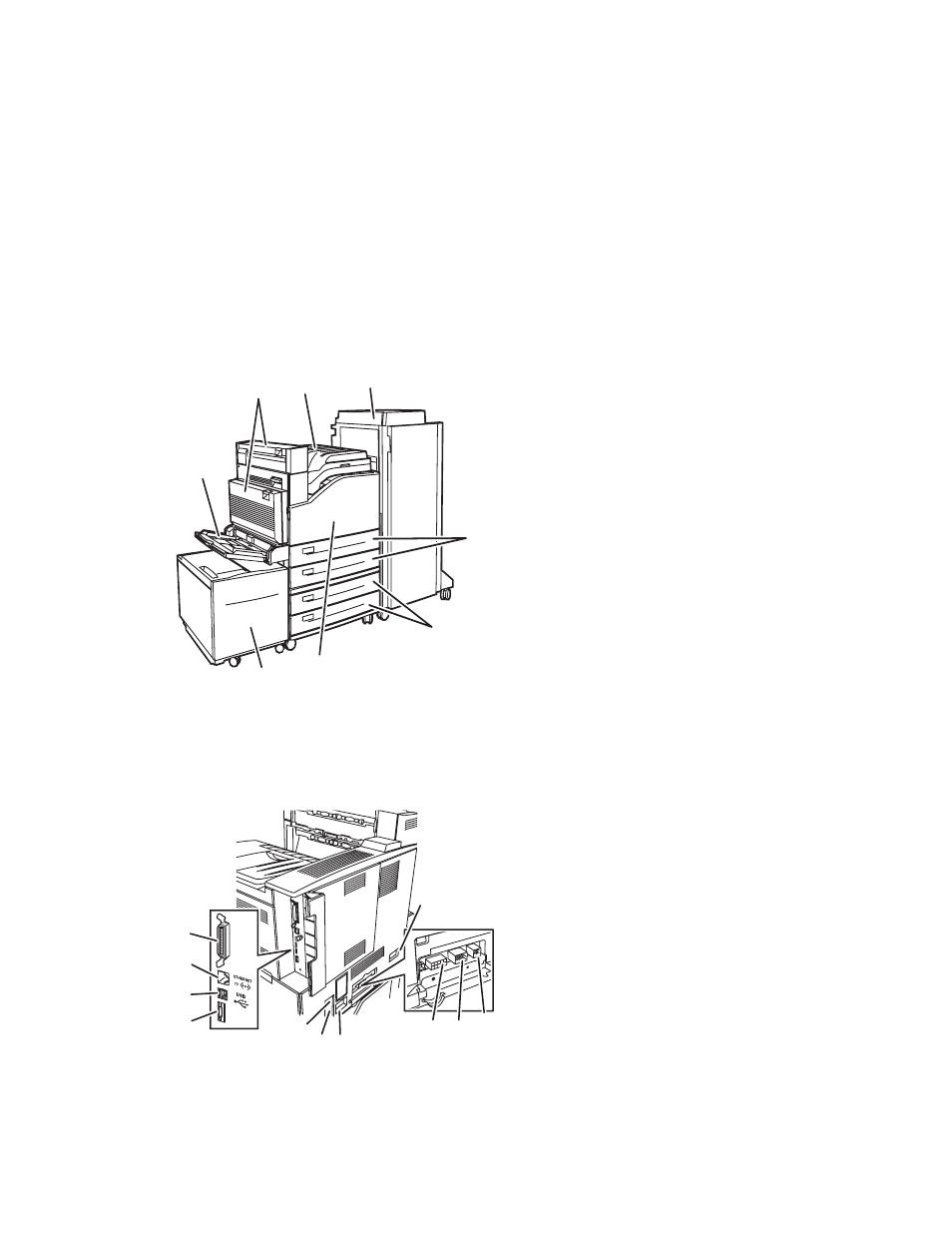

Front View
Rear View
1. Tray 1 (MPT)
2. Duplex Unit
3. Standard Output Tray
4. Optional 3500-Sheet Finisher or Stacker
5. Two 500-Sheet Feeders (Trays 2 and 3)
6. Optional 1000-Sheet Feeder (Trays 4 and 5)
7. Front Door
8. Optional 2000-Sheet Feeder (Tray 6)
1. Parallel connection
2. Ethernet 10/100/1000 Base-T connection
3. USB connection
4. Configuration card
5. Ground Fault Interrupt (GFI) reset
6. Power cord connection
7. Finisher or Stacker power cord connection
8. 2000-Sheet Feeder (Tray 6) connection
9. Finisher or Stacker connection
10. 1000-Sheet Feeder (Trays 4 and 5)
connection
11. Duplex Unit connection
7
3
2
1
8
5
4
6
7330-107
7330-119
7
9 10 11
8
5
6
1
2
3
4
