Dell 7330dn Mono Laser Printer - Manual (Page 173)

Clearing Paper Jams
Dell 7330 Mono Laser Printer
6-31

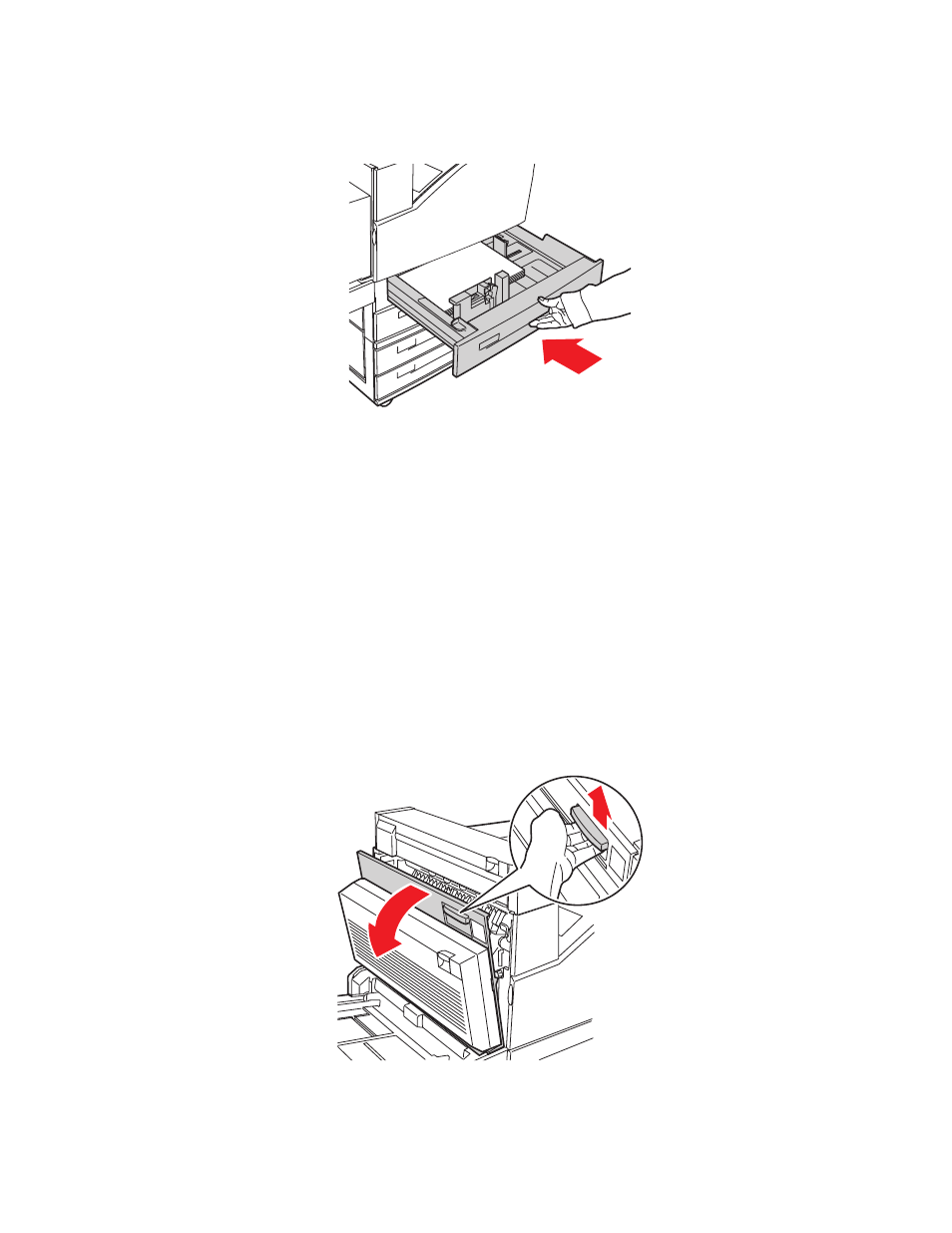

3. Push the tray completely into the printer.
4. Specify the size of the paper by doing the following:
a. In the control panel menus, select Printer Setup , and then press the OK button.
b. Select Paper Handling Setup , and then press the OK button.
c. Select Tray [2 - 5] Setup , and then press the OK button.
d. Select Auto Sensed, Custom , or a listed paper size, and then press the OK button.
e. If you selected Custom , specify the width and height of the paper. Select Custom
Width , press the OK button, scroll to the width of the paper, and then press the
OK button. Select Custom Height , press the OK button, scroll to the height of the
paper, and then press the OK button.
5. Open Door A.
Warning: Use caution; some components inside Door A may be hot.
7330-032
7330-001
D
A
E
A
