Modem
Dell™ Inspiron™ 500m Service Manual
Removing the Modem
1. Follow the instructions in " Preparing to Work Inside the Computer ."
2. Remove the keyboard .
3. Remove the display assembly .
4. Remove the palm rest .
5. Remove the M2 x 3-mm screw.
6. Disconnect the modem cable from the modem.
7. Pull up on the pull-tab to disconnect the modem from the system board connector.
Installing the Modem
1. Connect the modem cable to the modem.
2. Route the modem cable.
CAUTION: Before performing the following procedures, read the safety instructions in your Owner's Manual.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.

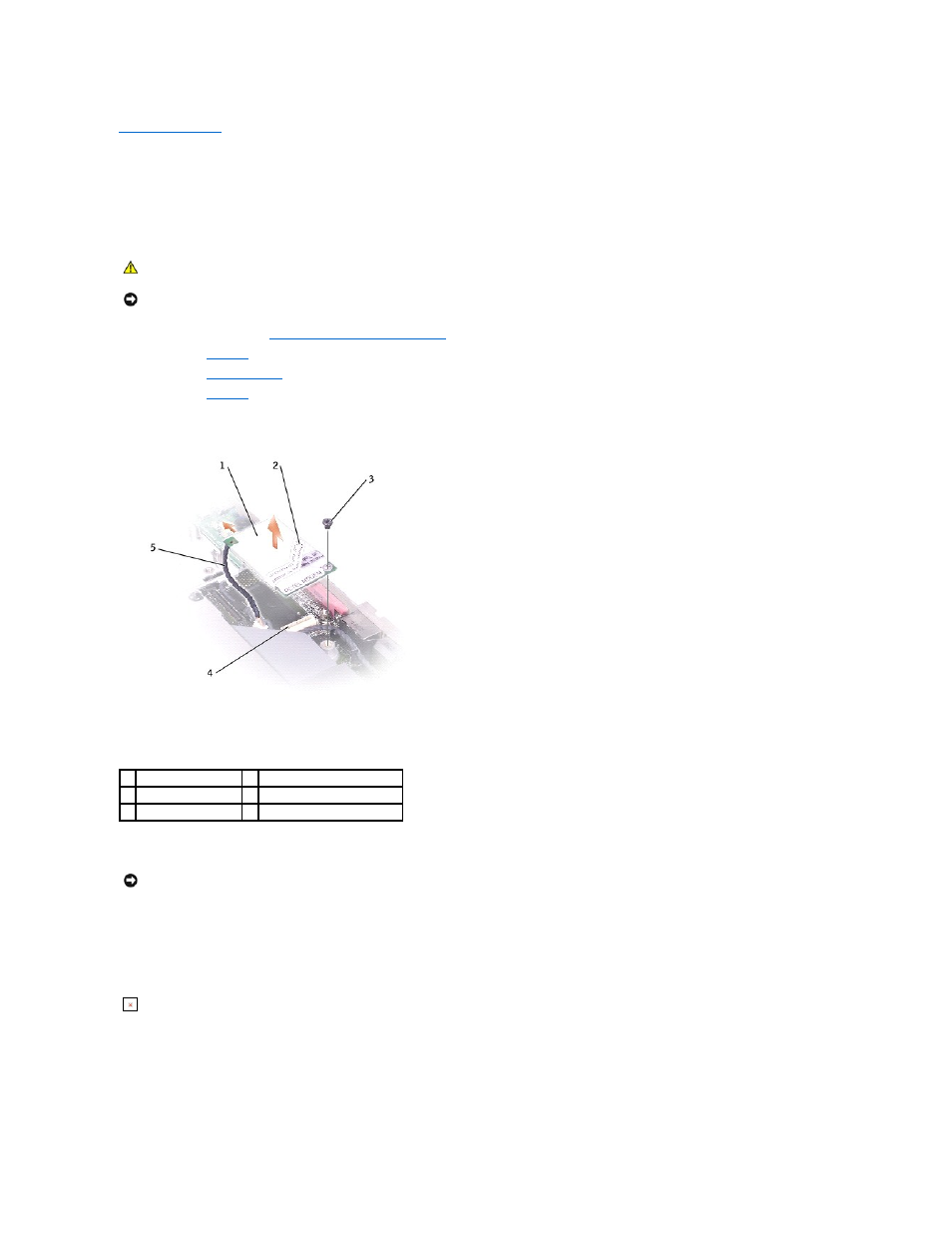

1 modem 4 system board connector
2 pull-tab 5 modem cable
3 M2 x 3-mm screw
NOTICE: Do not disconnect the modem cable from the system board.
NOTICE: Ensure that the modem cable is routed correctly when you replace the modem.
