Palm Rest
Dell™ Latitude™ D510 Service Manual
1. Follow the instructions in " Preparing to Work Inside Your Computer ."
2. Remove the keyboard .
3. Remove the display assembly .

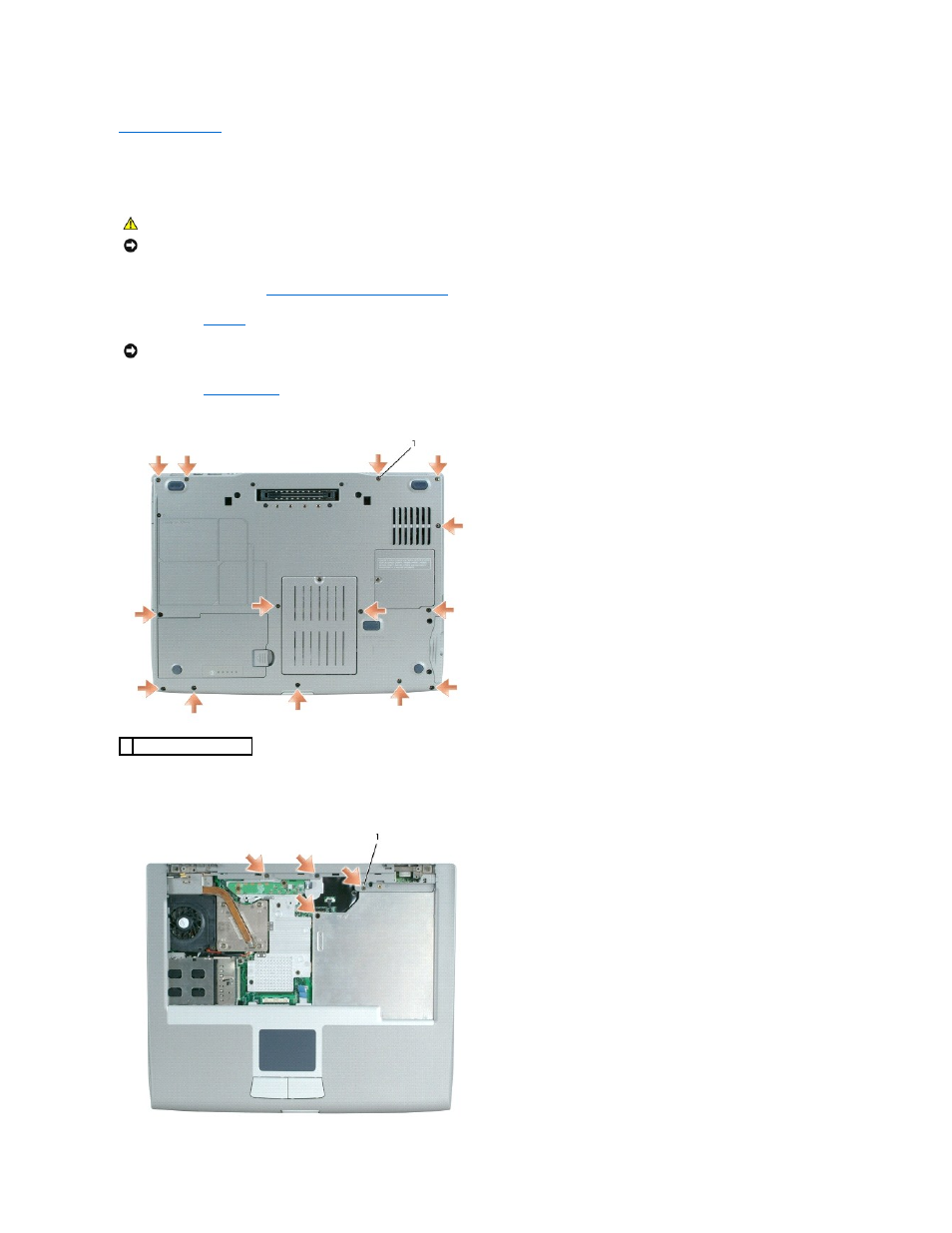

4. Turn the computer upside down and remove the 14 M2.5 x 8-mm screws.
5. Turn the computer top-side up and remove the three M2.5 x 5-mm screws labeled "P" from the top of the palm rest.
6. Remove the M2.5 x 5-mm screw labeled "P" from the metal shield.
CAUTION: Before performing the following procedures, read the safety instructions in your Product Information Guide.
NOTICE: To prevent damage to components inside your computer, discharge static electricity from your body before you touch any of your computer's
electronic components. You can do so by touching an unpainted metal surface.
NOTICE: You must remove the display assembly before you remove the palm rest; the display hinges pass through the back of the palm rest.
1 M2.5 x 8-mm screws (14)
