Dell Latitude D510 User Manual
Page 22
4.
Remove the keyboard:
a.
Remove the two M2.5 x 5-mm screws across the top of the keyboard.
b.
Slide the keyboard towards the display until it is free of the palm rest and hold it slightly above the computer, to allow access to the keyboard
connector.
c.
Pull the keyboard connector tab to disconnect the keyboard connector from the system board.
d.
Set the keyboard aside.
Back to Contents Page
NOTICE:
The keycaps on the keyboard are fragile, easily dislodged, and time-consuming to replace. Be careful when removing and handling the
keyboard.

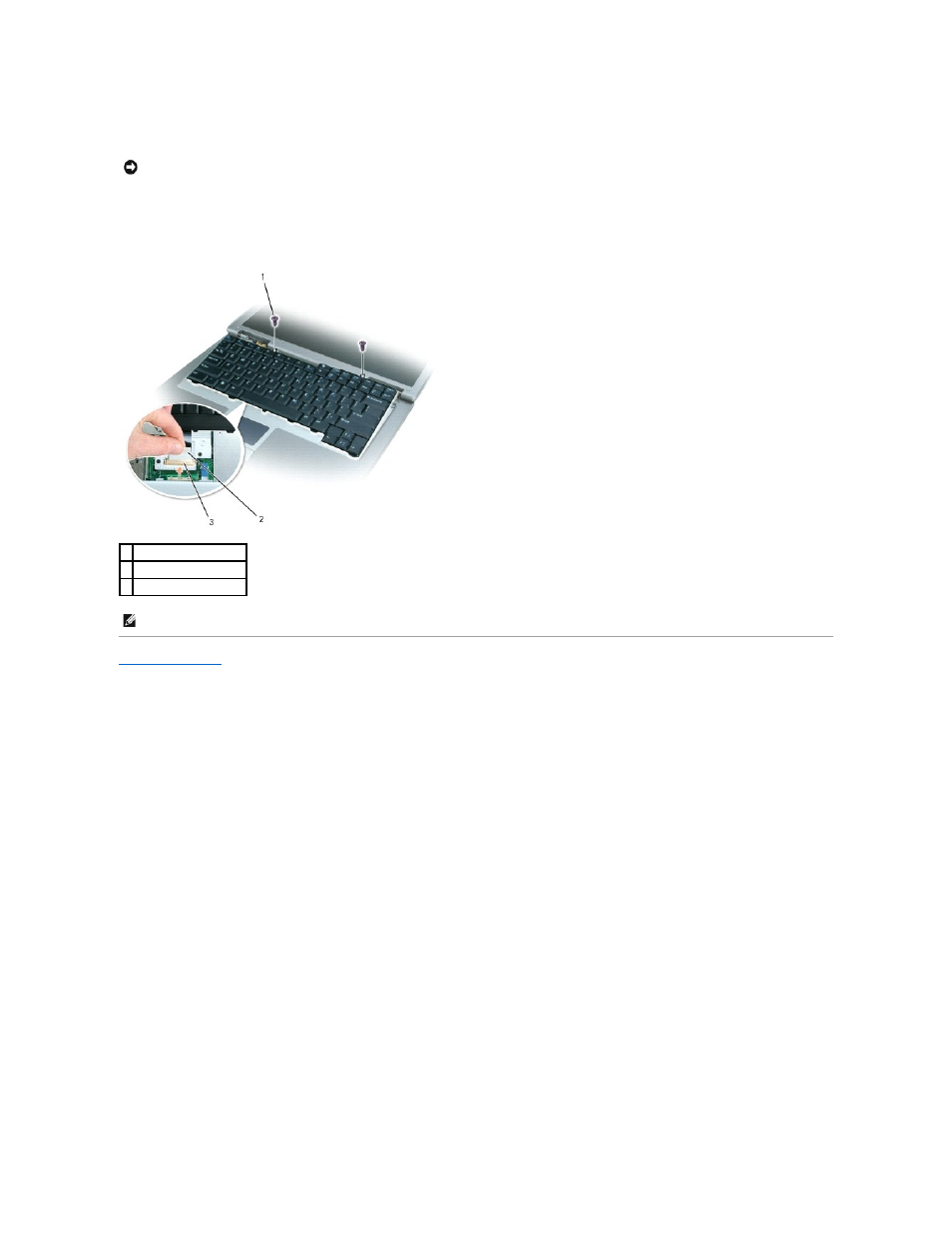

1 M2.5 x 5-mm screws (2)
2 keyboard connector tab
3 keyboard connector
NOTE:
When you replace the keyboard, ensure that the keyboard tabs are completely secured beneath the palm rest to avoid scratching it.
