Removing and Installing Parts
www
.dell.com | support.dell.com

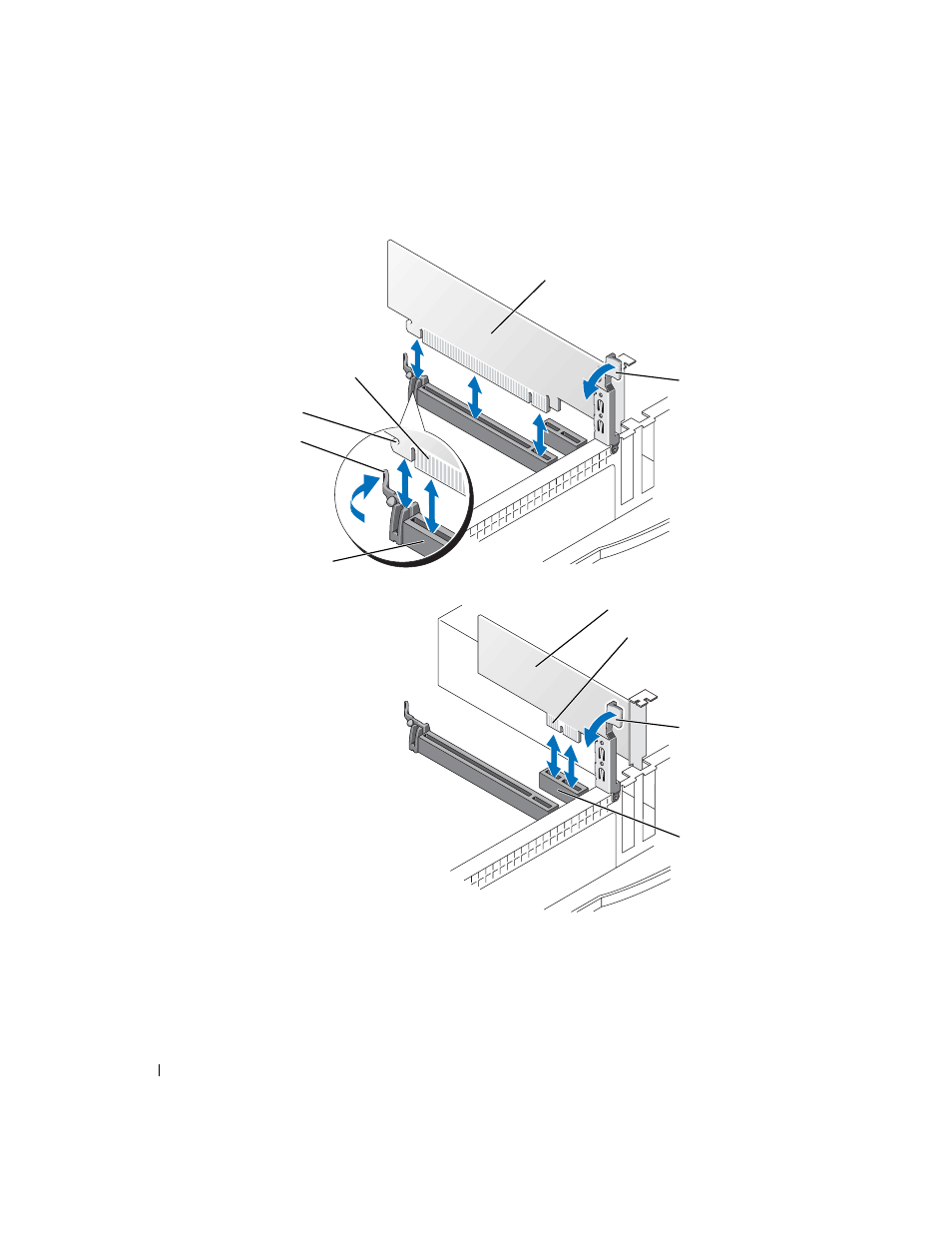

4 If you are replacing a card that is already installed in the computer, remove the card.
If necessary, disconnect any cables connected to the card. Gently pull the securing tab, grasp
the card by its top corners, and then ease it out of its connector.
edge connector
card connector
securing tab
securing slot
edge connector
card connector
x16 card
x1 card
retention arm
retention arm
