Removing and Installing Parts
www
.dell.com | support.dell.com

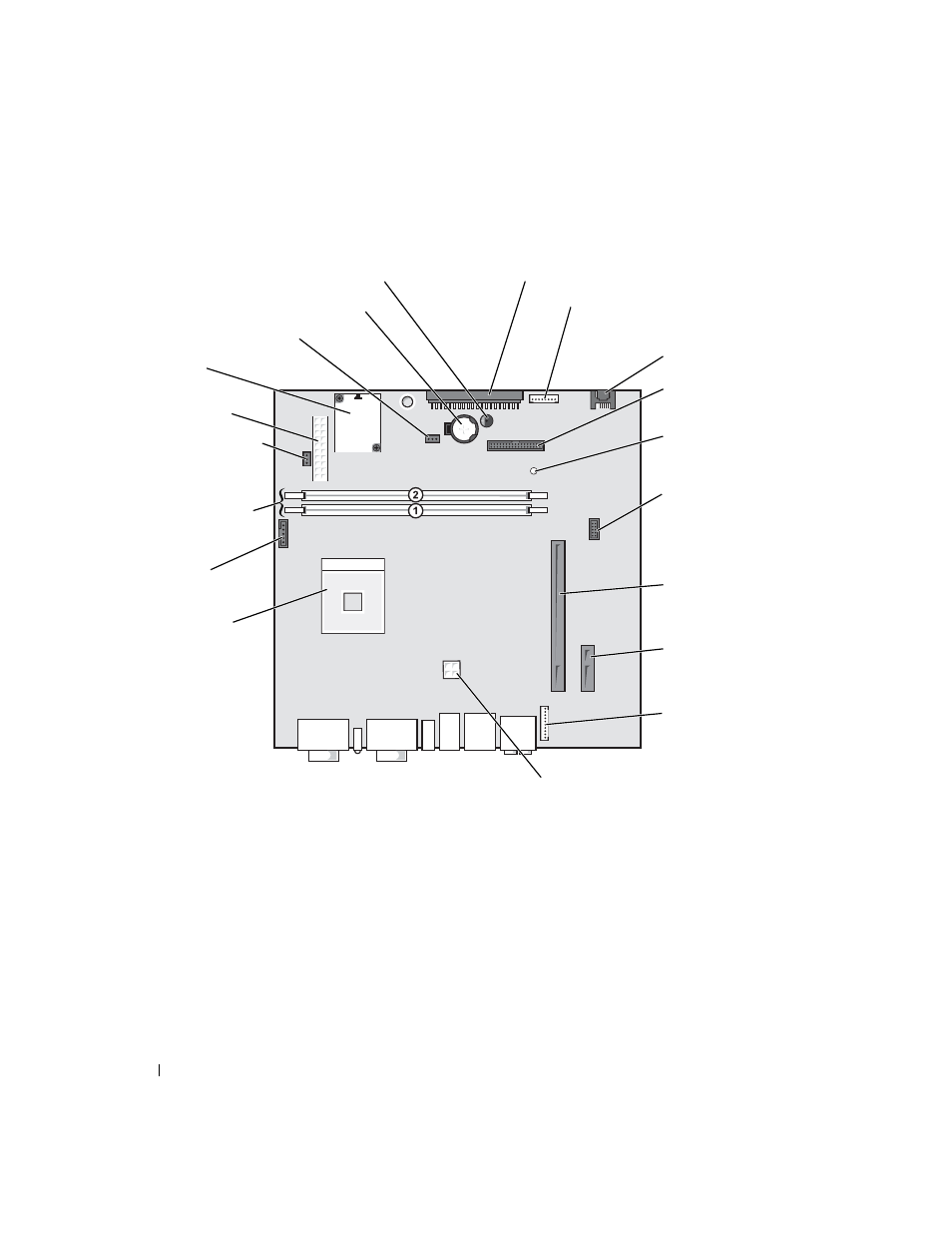

System Board Components
front-panel USB connector for Media
Card Reader (FPUSB)
battery socket (BATTERY)
PCI Express x16 card
connector (PEG)
back of computer
internal speaker (SPKR)
front-panel connector
(FRONT PANEL)
front-panel 1394
connector for Media
Card Reader
(FP1394)
PCI Express x1 card
connector (PCI_E1)
processor power connector (12V POWER)
processor and
heat-sink connector
memory module
connectors
(DIMM_1 and DIMM_2)
password jumper (PSWD)
modem (MDC1)
processor fan
connector (FAN)
front-panel audio
connector (FRONTAUDIO)
Standby Voltage Indicator
(AUX_PWR)
main power
connector (POWER)
IDE connector (IDE)
SATA connector (SATAO)
CMOS jumper (RTCRST)
