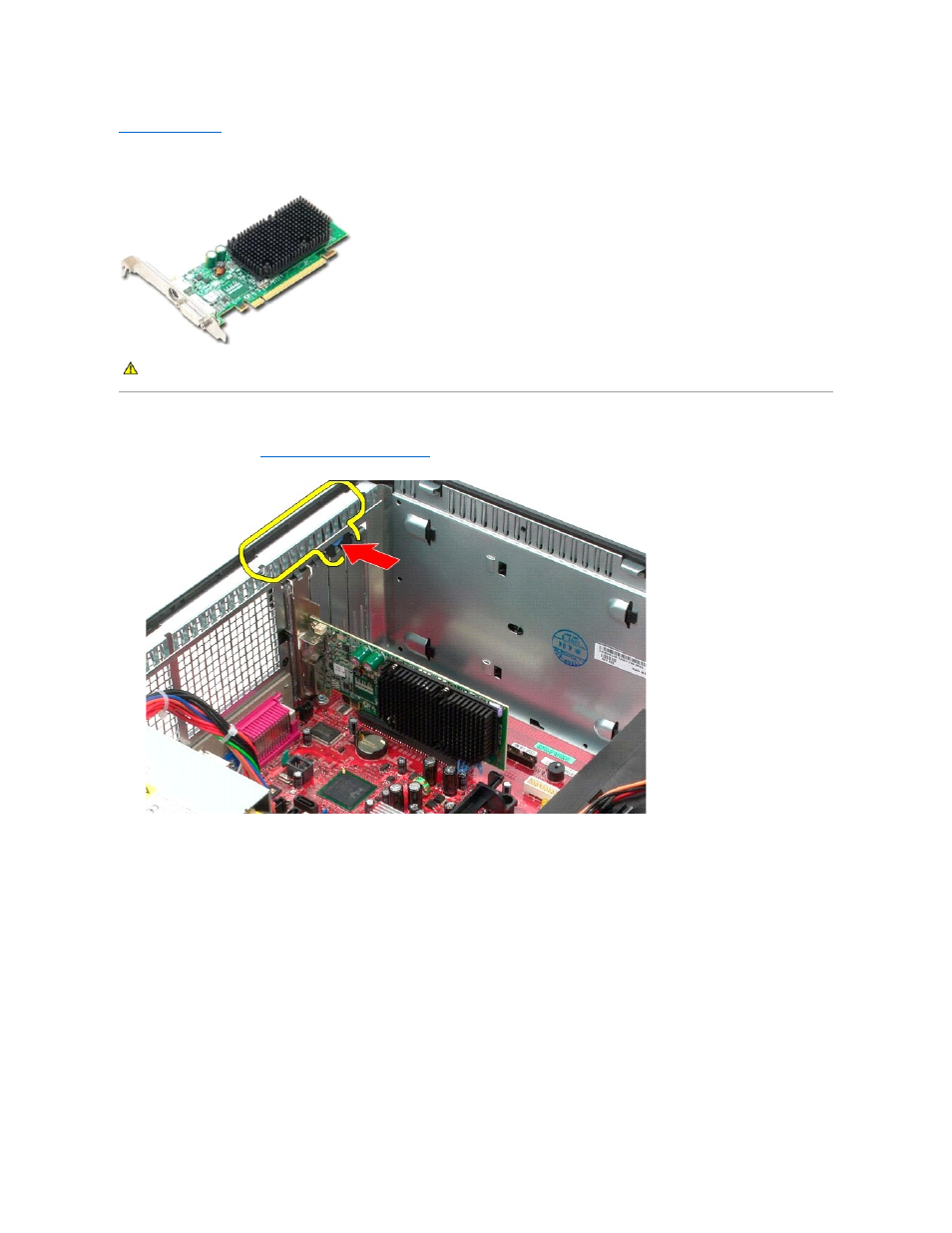

Video Card
Dell™ OptiPlex™ 580 Service Manual— Mini Tower
Removing the Video Card
1. Follow the procedures in Before Working Inside Your Computer .
2. Press the release tab on the card retention latch from inside, then pivot the latch open.
3. Pull the card retention tab on the system board connector away from the expansion card.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
