1-6 Rack Installation Guide
To install the rails in the rack, perform the following steps:
1. Slide the back mounting flange towards the center of the slide assembly to
slightly reduce the slide assembly's overall length (see Figure 1-4).
The mounting flange on each end of the slide assembly has two hooks that fit
through holes in the vertical rail.
2. Position the slide assembly mounting flange against the inner side of the rack's
front vertical rail so that the bottom hook is in the hole designated by the tem-
plate’s lower V-shaped notch.
3. Press the front mounting flange against the inside surface of the front rail, and
press down.
The mounting hooks move down, and the square latching tab pops into the
square hole just below the upper mounting hook.
4. Slide the back mounting flange backwards until the back mounting flange fits
snugly against the inner side of the back vertical rail.

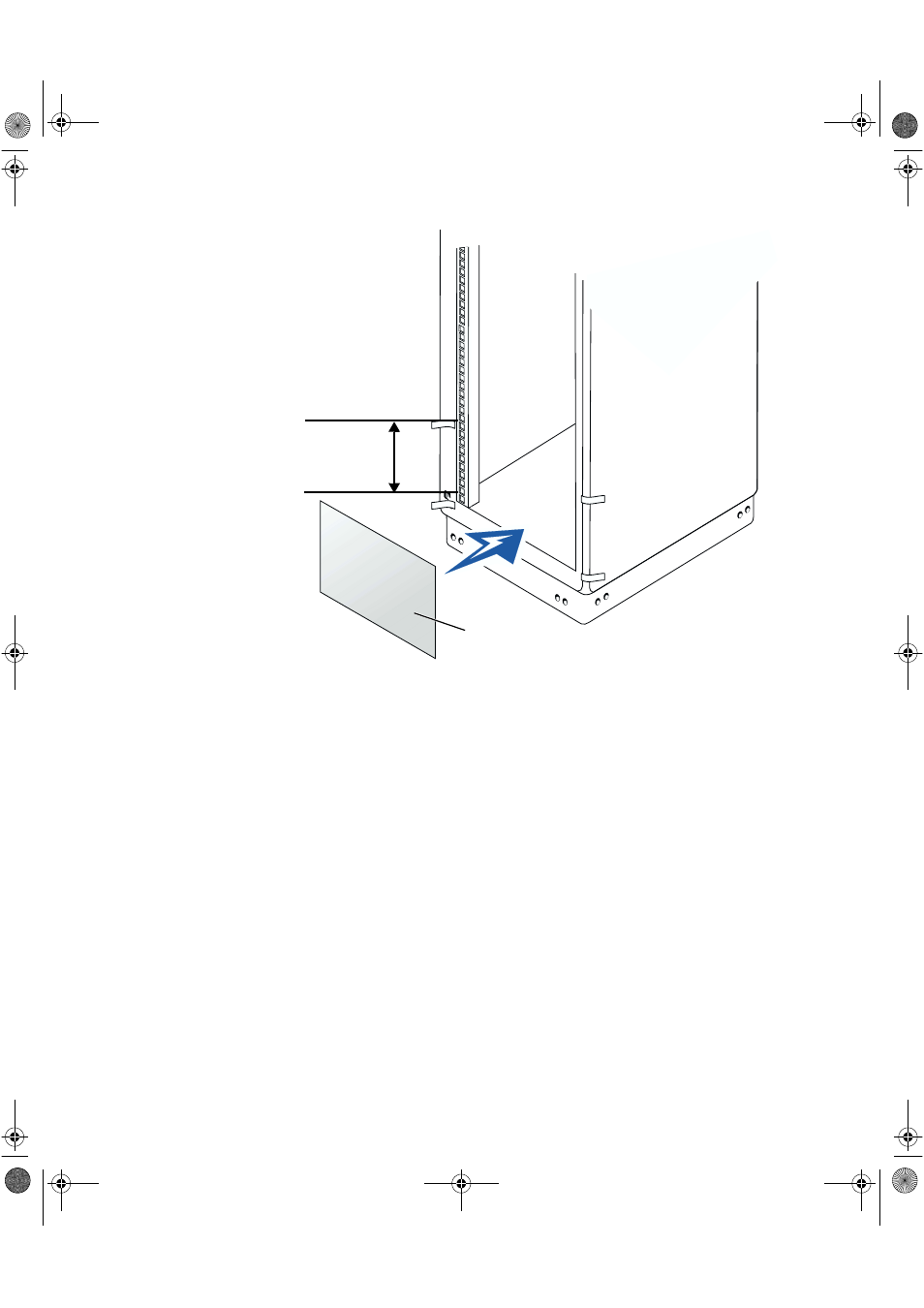

template
14 U (24.5 inches)
!
