support.dell.com Rack Installation Guide 1-5
Place the front of the template on the front vertical rails where you want to install
the system, and position the bottom of the template in line with the desired bot-
tom position of the system chassis.
Ensure that the printing on the template identifies the side facing outward as the
template front.
2. Mark the front vertical rails with a felt-tipped marker or place masking tape where
the system’s upper and lower edges will be located (see Figure 1-3).
3. Make a mark or place tape on the vertical rails next to the template’s V-shaped
notches.
4. At the back of the rack cabinet, repeat steps 2 and 3 to mark the back rail,
ensuring that the printing on the template identifies the side facing outward as
the template back.

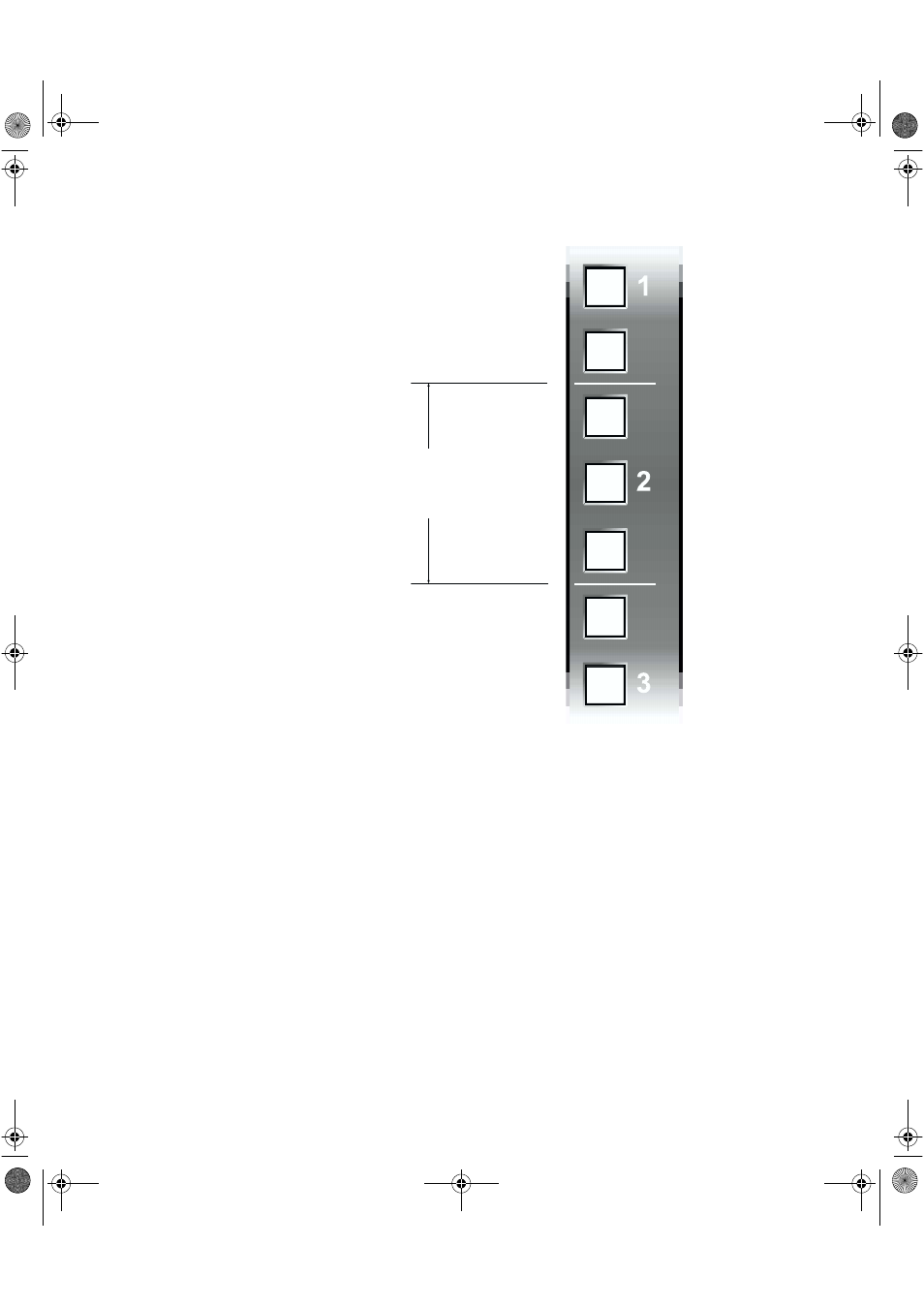

1.75 inches (1 U)
