Removing the drive, Removing the hard drive – Dell Precision M4800 (Late 2013) User Manual
Page 24
Removing the Hard Drive
1.
Follow the procedures in
Before Working Inside Your Computer
.
2.
Remove the:
a) battery
b) base cover
3.

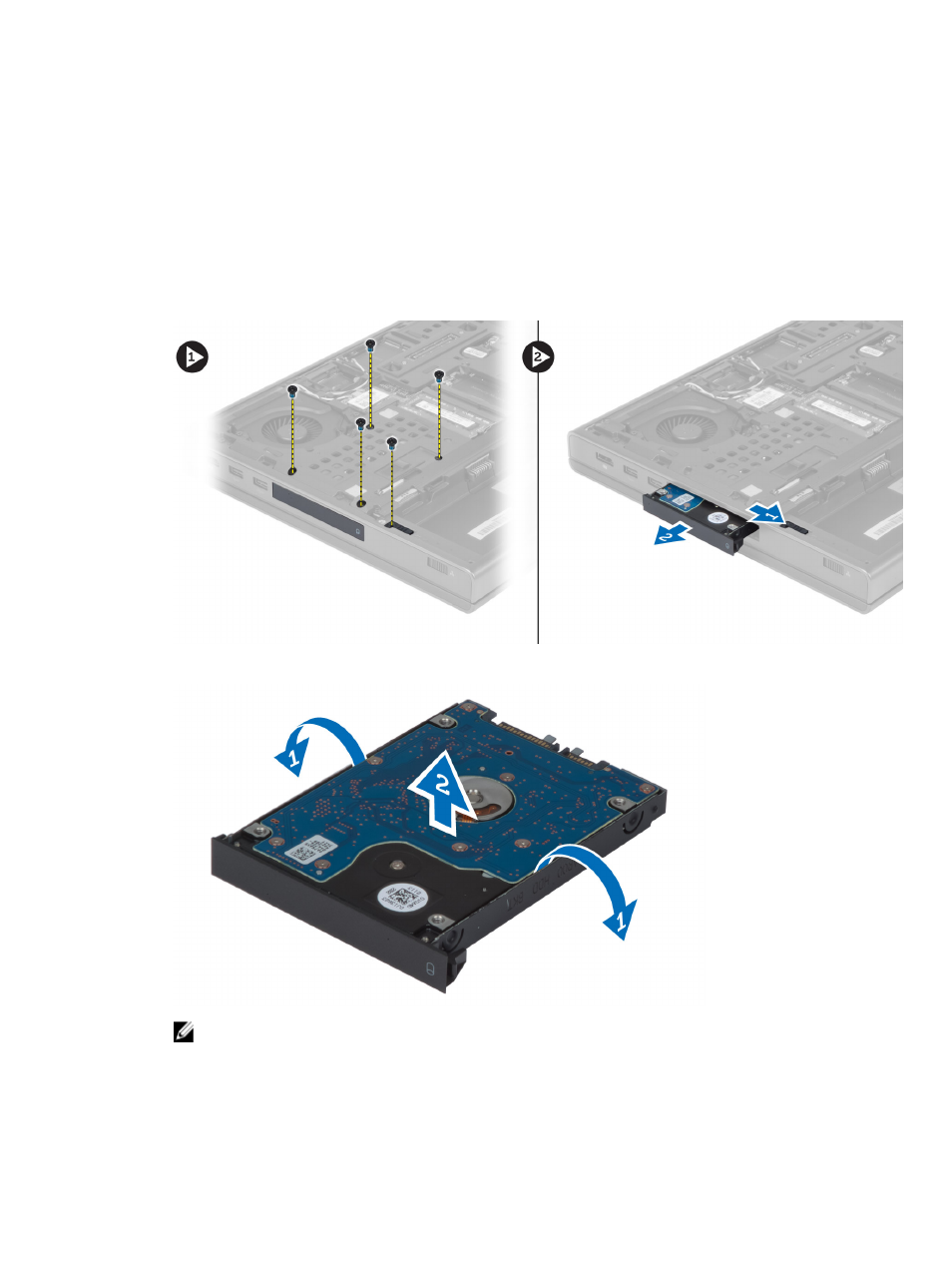

Remove the screws that secure the hard drive to the computer. Slide the hard -drive latch to the unlock position
and pull out the hard drive from the computer.
4.
Flex the hard-drive bracket outward and pull out the hard drive from the bracket.
NOTE: A rubber filler is installed to the hard-drive bracket for 7 mm hard drives. It is designed to prevent
vibrations and for correct installation of the 7 mm hard drives. 9 mm hard drives do not require the filler when
installed into the hard-drive bracket.
