86 | Removing the Display Assembly
Procedure
1 Disconnect the antenna cables from the connectors on the wireless Mini-Card(s).
See "Removing the Wireless Mini-Card(s)" on page 39.
2 Make a note of the antenna cables routing and remove the cables from the
routing guides.
3 Turn the computer over and open the display as far as possible.
4 Pull the antenna cables up through the slot on the computer base.
5 Pull the pull-tab to disconnect the display cable from the system-board connector.
6 Remove the screws that secure the display assembly to the computer base.
7 Lift the display assembly off the computer base.

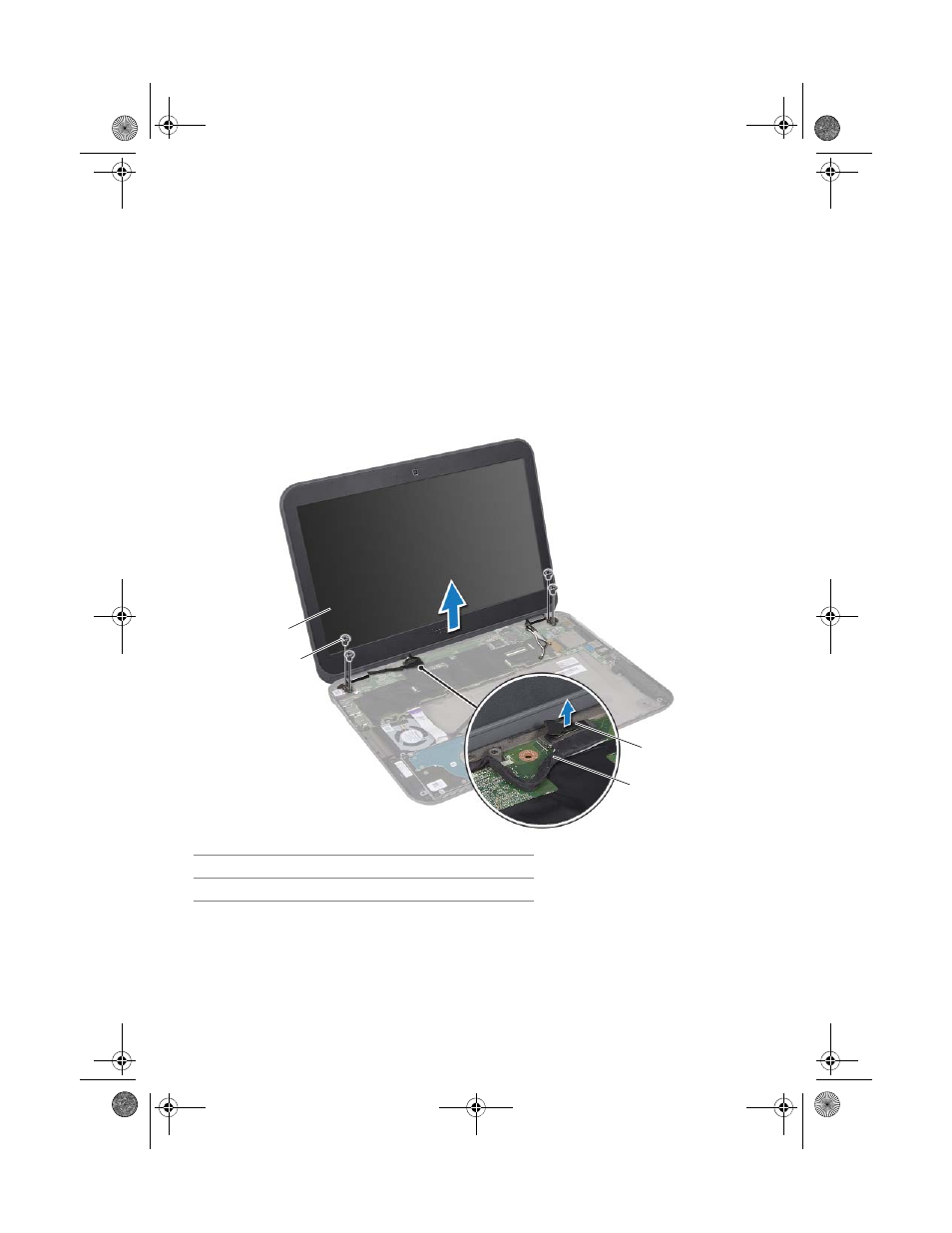

1 display assembly 2 screws (4)
3 display cable 4 pull-tab
