Removing the System Board | 77
4 Pull the pull-tab to disconnect the hard-drive cable from the
system-board connector.
5 Lift the connector latch and pull the pull-tab to disconnect the ribbon cable from
the system-board connector.
6 Remove the processor heat-sink. See "Removing the Processor Heat-Sink" on
page 81.

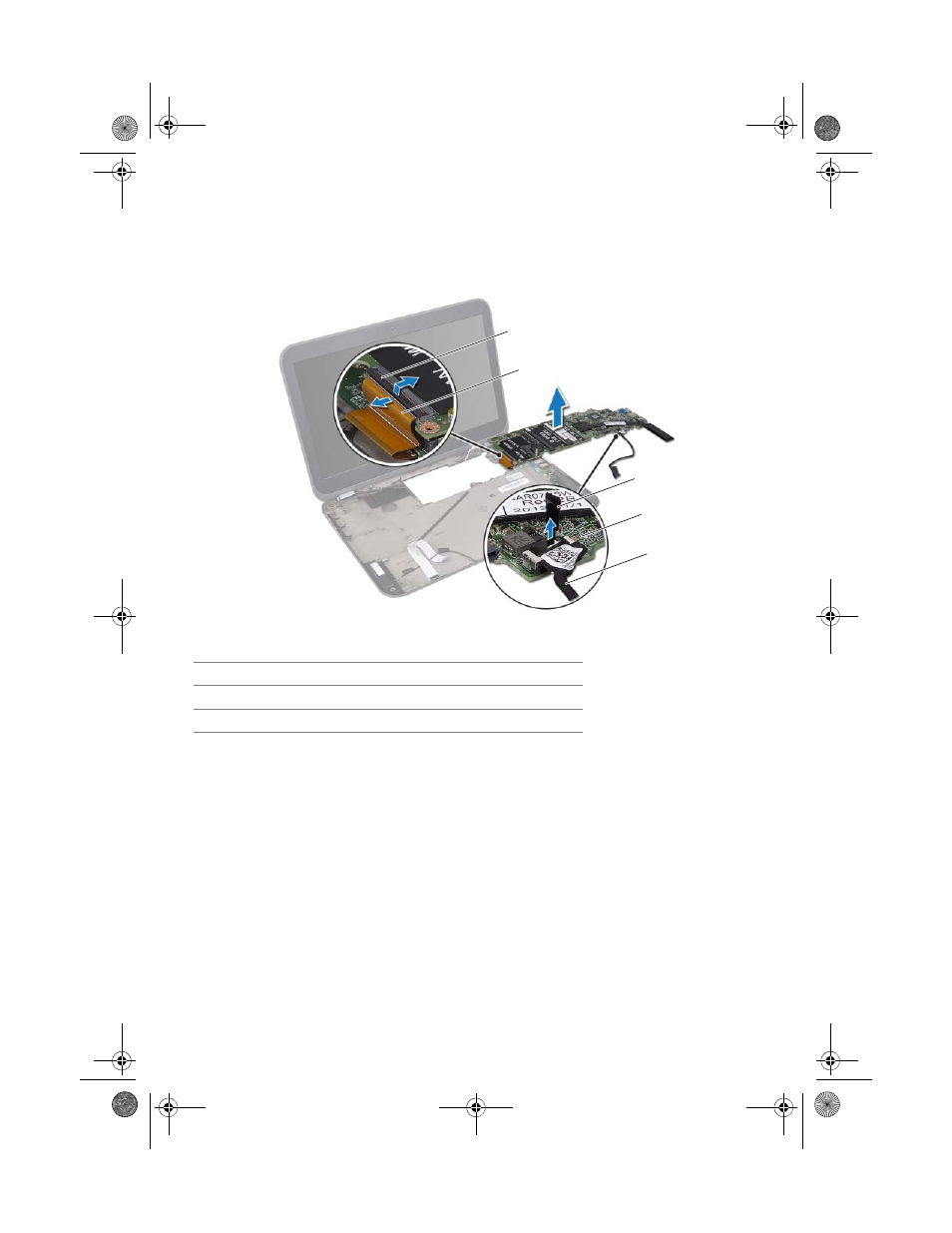

1 connector latch 2 ribbon cable
3 pull-tab 4 system-board assembly
5 hard-drive cable
