Timer Control Start-Up Procedures
Display
In normal operation the Time Of Day display
alternates with Volume Remaining and Tank in In
Service displays ( 9000SE Timer only). As treated
water is used, the Volume Remaining display
counts down (in gallons) from a maximum value
to zero or (----). Once this occurs a Regeneration
cycle initiates immediately or delayed to the set
Regeneration Time . Water flow through the valve
is indicated by the flashing Flow Dot Indicator.
Set Time of Day
When the valve is In Service, press either the
Set Up or Set Down button once to adjust the
Time Of Day by one digit. Press and hold to
adjust by several digits.
Start an Extra Regeneration Cycle
Press the Extra Regeneration button to start an Extra Regeneration tonight. Press and hold the Extra Regeneration
button for 5 seconds to start an Extra Regeneration immediately.
Set Control Programming
1. Press and hold both the Set Up and Set Down buttons for 5 seconds.
2. Set the Treated Water Capacity. Using the Set Up or Set Down buttons, set the amount of
treated water to flow through the unit before a Regeneration is required.
3. Press the Extra
Regeneration button.
4. Set the Regeneration
Time. Use the Set Up or
Set Down buttons to set
the desired time of day for
Regeneration to occur.
5. Press the Extra
Regeneration button.

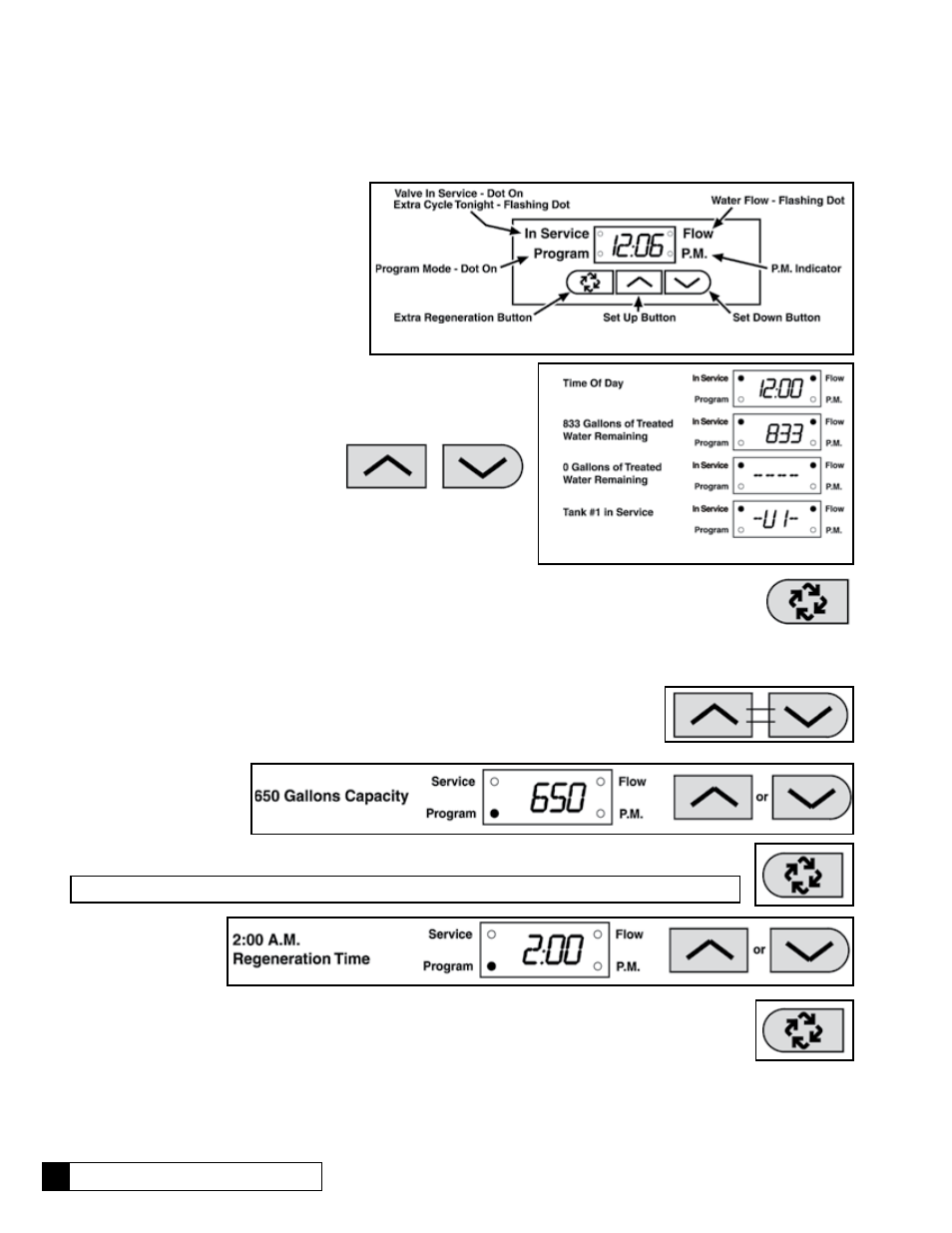

Figure 4 Timer Display During Normal Operation
Note: This does not display if Regeneration occurs immediately.
