Camera and Microphone Assembly
Removing the Camera and Microphone Assembly
1.
Follow the instructions in
Before You Begin
.
2.
Remove the center control cover (see
Removing the Center Control Cover
).
3.
Remove the keyboard (see
Removing the Keyboard
).
4.
Remove the display assembly (see
).
5.
).
6.
Remove the display panel (see
7.
Disconnect the camera cable connector from the camera and microphone asssembly.
8.
Lift the camera and microphone assembly out of the display cover.
Replacing the Camera and Microphone Assembly
1.
Follow the instructions in
Before You Begin
.
2.
Place the camera/microphone assembly on the display cover.
3.
Connect the camera cable connector to the camera/microphone assembly.
Back to Contents Page
CAUTION:
Before you begin the following procedure, follow the safety instructions in the Product Information Guide.

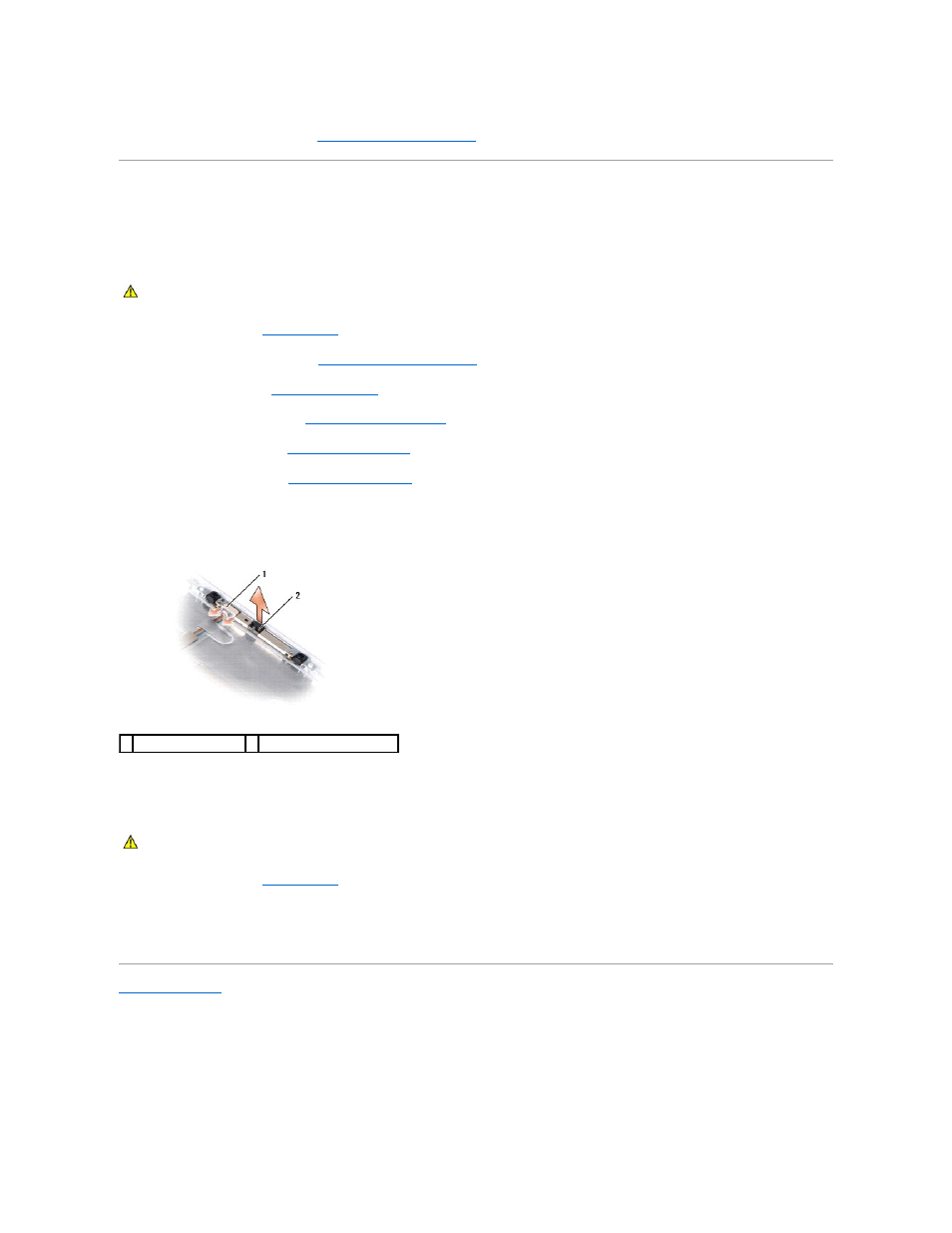

1 camera cable connector 2 camera/microphone assembly
