Palm Rest
Dell™ Inspiron™ 1420/Dell Vostro™ 1400
Service Manual
Removing the Palm Rest
1.
Follow the instructions in
Before You Begin
.
2.
Remove the optical drive (see
Removing the Optical Drive
).
3.
Remove the keyboard cover (see
Removing the Keyboard Cover
).
4.
Remove the keyboard (see
Removing the Keyboard
).
5.
Remove the display assembly (see
Removing the Display Assembly
).
6.

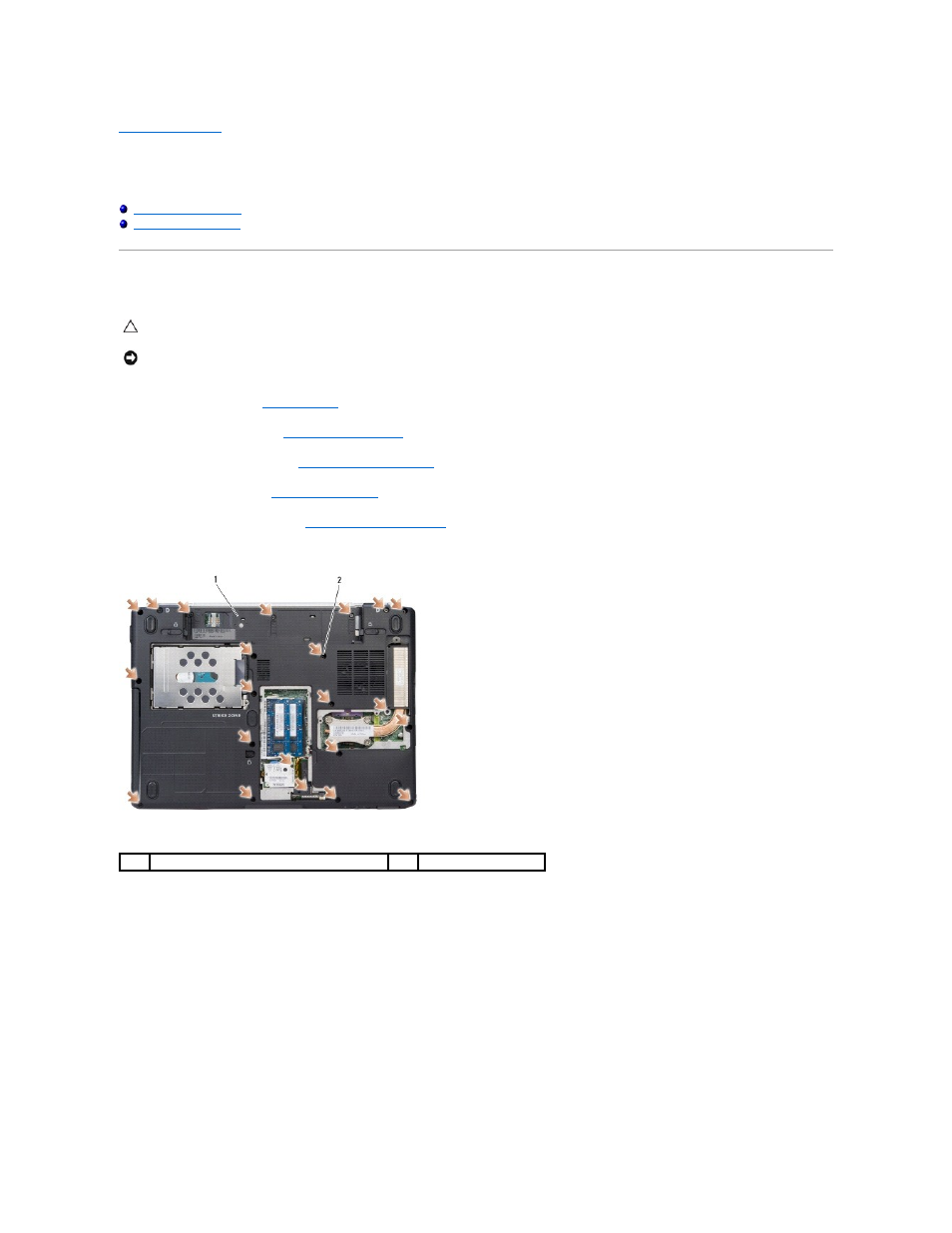

Turn the computer over and remove all the screws (22) from the bottom of the computer including the three screws from the battery bay.
7.
Turn the computer over and remove the three M2.5 x 5mm screws from locations marked P on top of the palmrest.
CAUTION:
Before you perform any of the procedures in this section, follow the safety instructions in the Product Information Guide.
NOTICE:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface, such as the back panel on the computer.
1
bottom of the system
2
screw (22)
