Dell PowerVault NX1950 - Manual (Page 7)

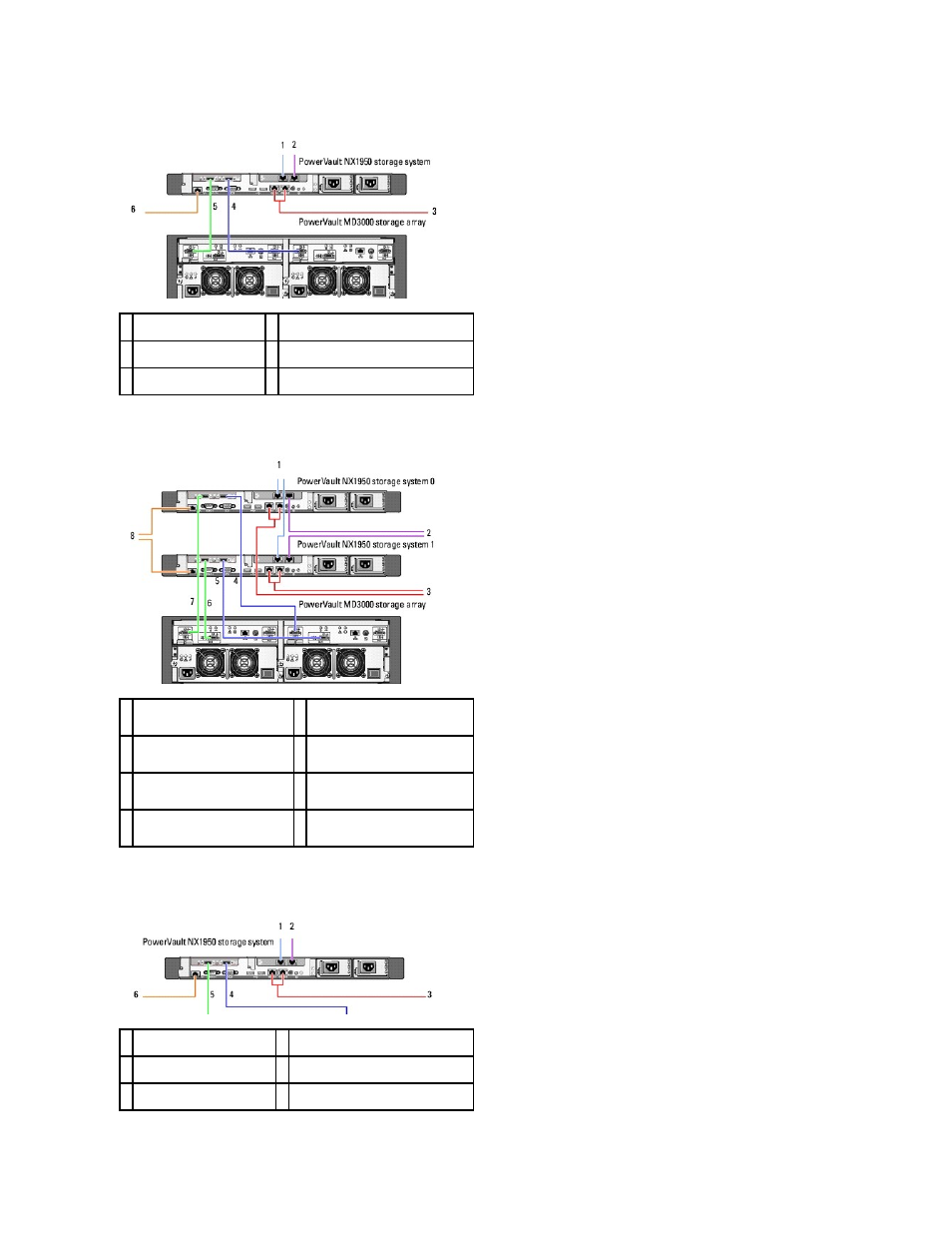

Figure 1-2. Example of Cabling a PowerVault NX1950 Cluster Configuration
Figure 1-3. Gateway Solution Configuration
1 NIC port A to Gb Ethernet
switch (optional)
4 Port 1 on SAS HBA to In-0 on controller 1
2 NIC port B to Gb Ethernet
switch (optional)
5 Port 0 on SAS HBA to In-0 on controller 0
3 Gb1 and Gb2 to Gigabit
Ethernet switch(es)
6 DRAC port to Ethernet switch for lights-
out management (optional)
1 NIC port A to Gb Ethernet switch
(optional) for MSCS heartbeat
5 Port 1 on PowerVault NX1950
storage system 1 SAS HBA to In-1
on controller 1
2 NIC port B to Gb Ethernet switch
(optional)
6 Port 0 on PowerVault NX1950
storage system 1 SAS HBA to In-1
on controller 0
3 On-board Gb1 and Gb2 to Gb
Ethernet switch(es)
7 Port 0 on PowerVault NX1950
storage system 0 SAS HBA to In-0
on controller 0
4 Port 1 on PowerVault NX1950
storage system 0 SAS HBA to In-0
on controller 1
8 DRAC port to Ethernet switch for
lights-out management (optional)
1 NIC port A to Gb Ethernet
switch (optional)
4 Port 2 on HBA to SAN
2 NIC port B to Gb Ethernet
switch (optional)
5 Port 1 on HBA to SAN
3 Gb1 and Gb2 to Gigabit
Ethernet switch(es)
6 DRAC port to Ethernet switch for lights-
out management
