5. Follow the procedures in After Working Inside Your Computer .
Removing the Expansion Card
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) cover.
b) fan shroud.

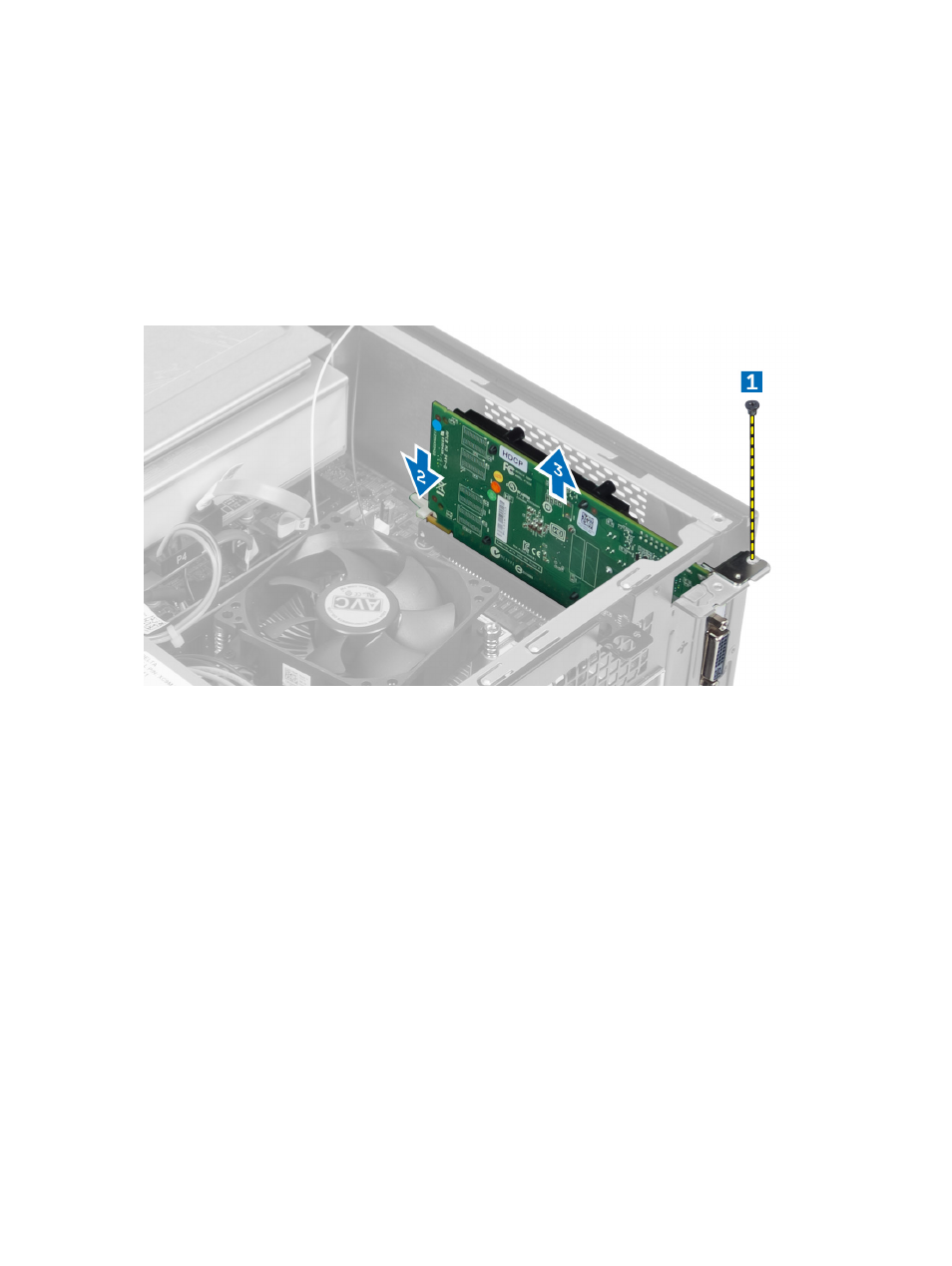

3. Remove the screw that secures the expansion card to the chassis. Press down the securing tab, grasp the card
and ease it out of its connector.
Installing the Expansion Card
1. Insert the expansion card into it's connector on the system board and press down until it is securely in place.
2. Tighten the screw to secure the expansion card to the chassis.
3. Install:
a) fan shroud.
b) cover.
4. Follow the procedures in After Working Inside Your Computer .
Removing the Coin-Cell Battery
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) cover
b) fan shroud
c) drive cage
3. Press the release latch away from the battery to allow the battery to pop-up and lift the coin-cell battery out of the
computer.
