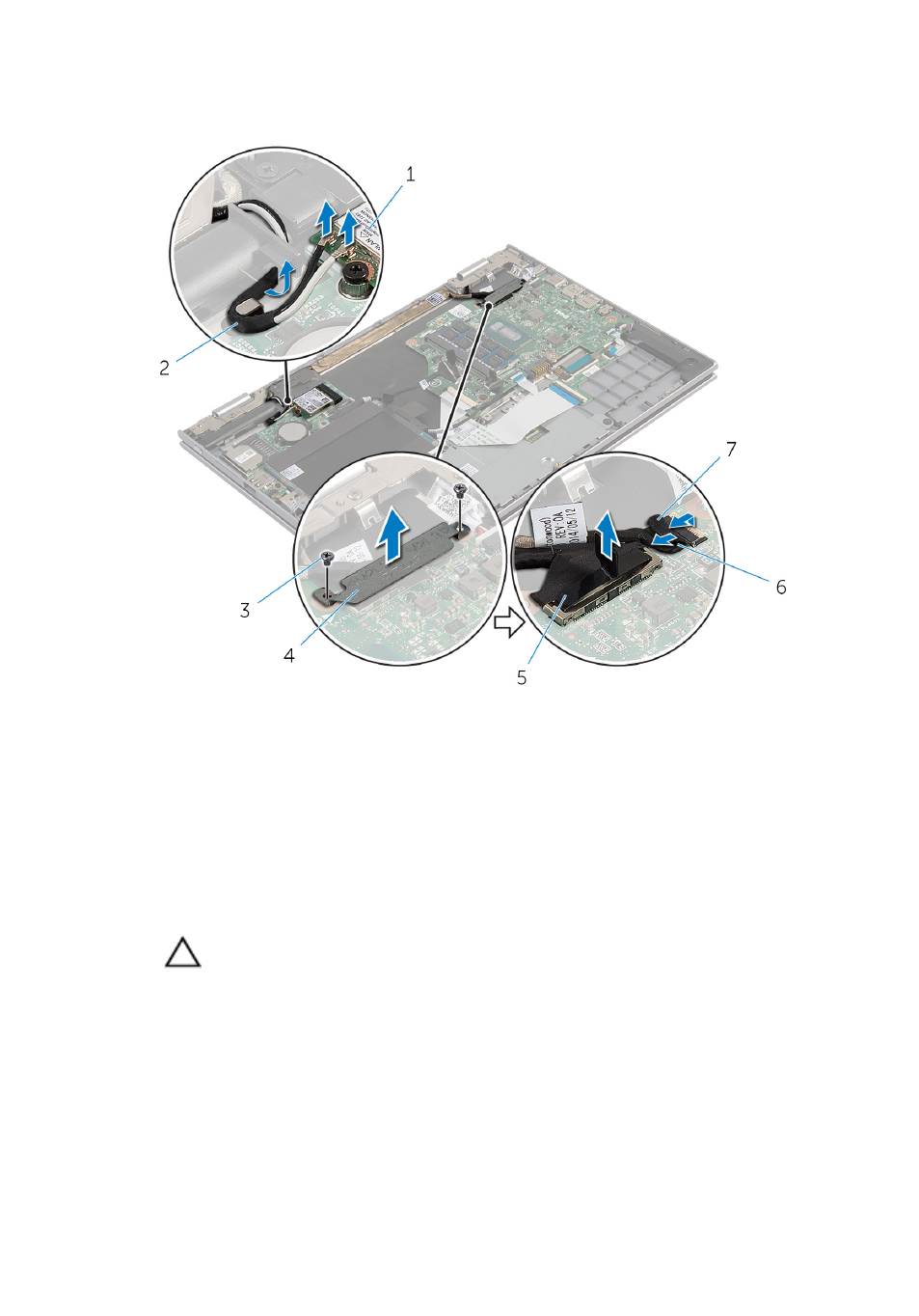

5 Peel off the adhesive tape on the Windows-button board connector and

disconnect it form the system board.

1

wireless card

2

antenna cables (2)

3

screws (2)

4

display-cable bracket

5

display cable

6

windows-button board
cable

7

adhesive tape

6 Turn the computer over and open the display as far as possible.

CAUTION: Place the computer on a soft and clean surface to avoid
scratching the display.

7

Place the computer face down on a flat surface.

8 Remove the screws that secure the display assembly to the palmrest and

keyboard assembly.

9 Peel off the adhesive tape that secures the the display cable to the

palmrest and keyboard assembly.
