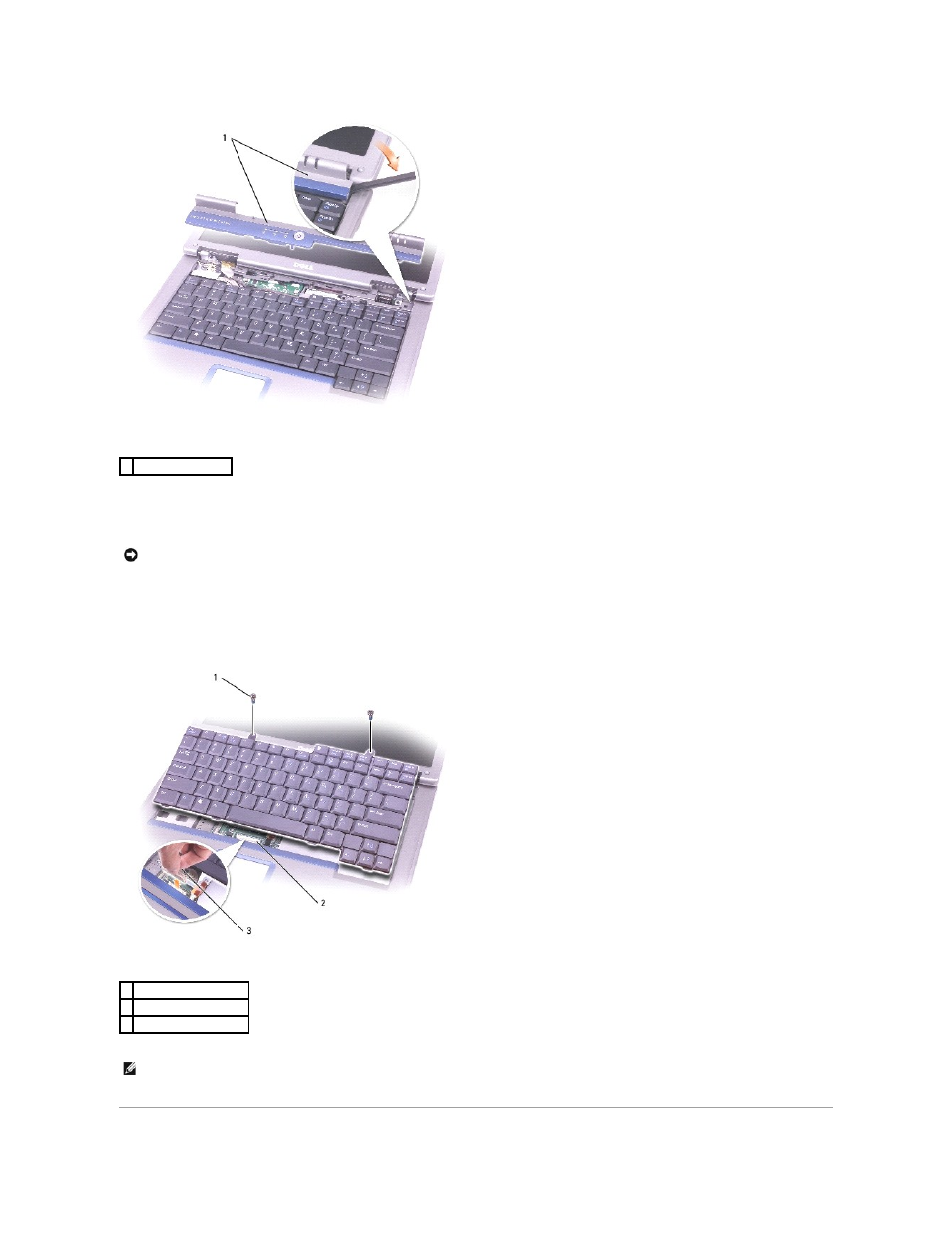

4.



Remove the keyboard:

a.



Remove the two M2.5 x 5-mm screws across the top of the keyboard.



b.



Rotate the keyboard up and slide it forward.

c.



Hold the keyboard up and slightly forward to allow access to the keyboard connector.

d.



Pull up on the keyboard connector tab to disconnect the keyboard connector from the system board.









1  center control cover

NOTICE:

The keycaps on the keyboard are fragile, easily dislodged, and time-consuming to replace. Be careful when removing and handling the

keyboard.

1  M2.5 x 5-mm screws (2)

2  keyboard connector

3  keyboard connector tab

NOTE:

When you replace the keyboard, ensure that the keyboard tabs are completely in place to avoid scratching the palm rest.
