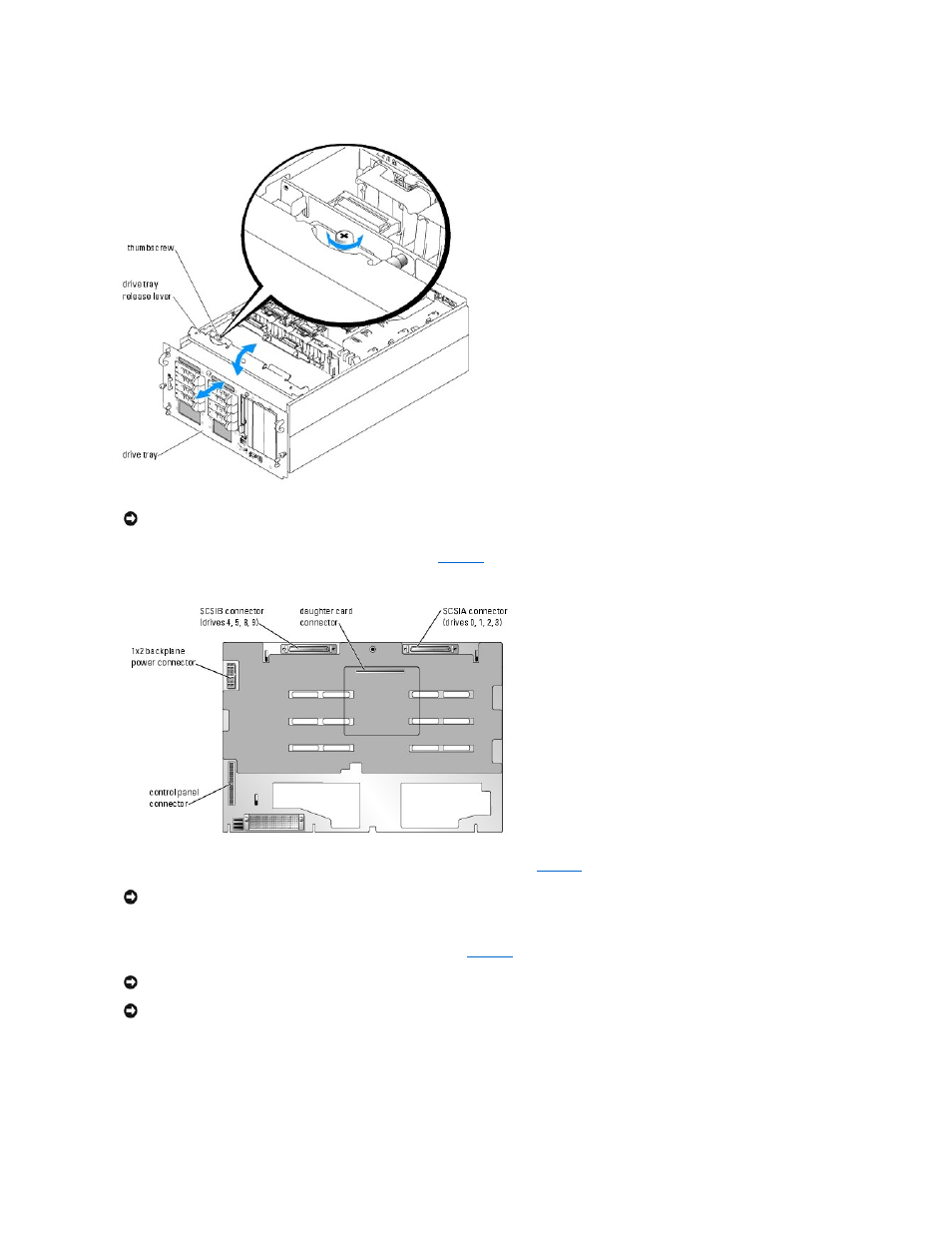

Figure 1-1. Moving the Drive Tray to the Maintenance Position
5. Disconnect the SCSI data cable(s) from the SCSI backplane. See Figure 1 -2 .
Figure 1-2. Connectors on Back of SCSI Backplane
6. If applicable, disconnect the 1x2 backplane power cable from the SCSI backplane. See Figure 1 -2 .
7. To disconnect the control panel cable from the SCSI backplane, grasp the cable's white plastic pull-tab and pull the cable connector directly away from
the backplane. For the location of the connector on the backplane, see
Figure 1 -2 .
8. Unlock and slide the SCSI hard drive(s) out of the system at least 5 cm (2 inches).
9. Slide the diskette/optical drive carrier out of the system at least 5 cm (2 inches), to disconnect the carrier from the backplane.
10. Remove the SCSI backplane:
NOTICE: Note the relative position of each SCSI data cable if more than one cable is attached to the SCSI backplane
NOTICE: When disconnecting the control panel cable, hold the white pull-tab next to the control panel cable connector to prevent damage to the SCSI
backplane or the cable itself.
NOTICE: To prevent damage to the drives and backplane, you must disengage or remove the SCSI drives from the system before removing the
backplane.
NOTICE: If you completely remove the drives from the system, you must note the number of each drive and temporarily label them before removal, so
you can replace them in the same locations.
