Connect the SAS cable from the DL2000 PowerEdge Expandable RAID Controller (PERC) to the primary Enclosure
Management Module (EMM) SAS In port on the MD1000.
1
Review preinstallation requirements.
2
Verify that your solution is complete.
5
Connect the power and attach the power cord retention brackets. Install the cable management arm and ramp
assembly, then route and secure the cables. For more information, see the documentation included with your rail kit.
4
Install the MD1000 in the rack and connect the power cords and power cord retention brackets.
Dell
™
PowerVault
™
DL Backup to Disk Appliance
—
Powered by Symantec Backup Exec
™
Setup Diagram
CAUTION:
Before you set up and operate your Dell hardware, review the safety instructions that came with your system.
Before You Begin
Before setting up your hardware, make sure you have met the necessary site requirements:
Network requirements
– An active network with available LAN cabling and connections is required.
– If not provided via Dynamic Host Control Protocol (DHCP), a static IP address is required.
– If not provided via DHCP, a DNS Server IP address is required.
– A Windows Domain Name is required for Managed Media Services (MMS) or Central Administration Server (CAS).
– A username and password with administrator privileges are required.
Licenses
– The Symantec Backup Exec™ Software License keys are shipped with the DL Backup to Disk Appliance and are located in the
Dell | Symantec media kit container.
– The Symantec Licensing Portal at lliic
ce
en
nssiin
ng
g..ssyym
ma
an
ntte
ec
c..c
co
om
m allows you to add licenses or activate additional agents/options.
N
NO
OT
TE
E:: IIff yyo
ou
u a
arre
e iin
nsstta
alllliin
ng
g a
a D
DLL B
Ba
ac
ckku
up
p tto
o D
Diisskk A
Ap
pp
plliia
an
nc
ce
e iin
n a
an
n e
exxiissttiin
ng
g B
Ba
ac
ckku
up
p E
Exxe
ec
c e
en
nvviirro
on
nm
me
en
ntt tth
ha
att u
usse
ess a
a C
CA
AS
S,, tth
he
e C
CA
AS
S m
mu
usstt b
be
e a
att
vve
errssiio
on
n 1122..55 o
orr h
hiig
gh
he
err..

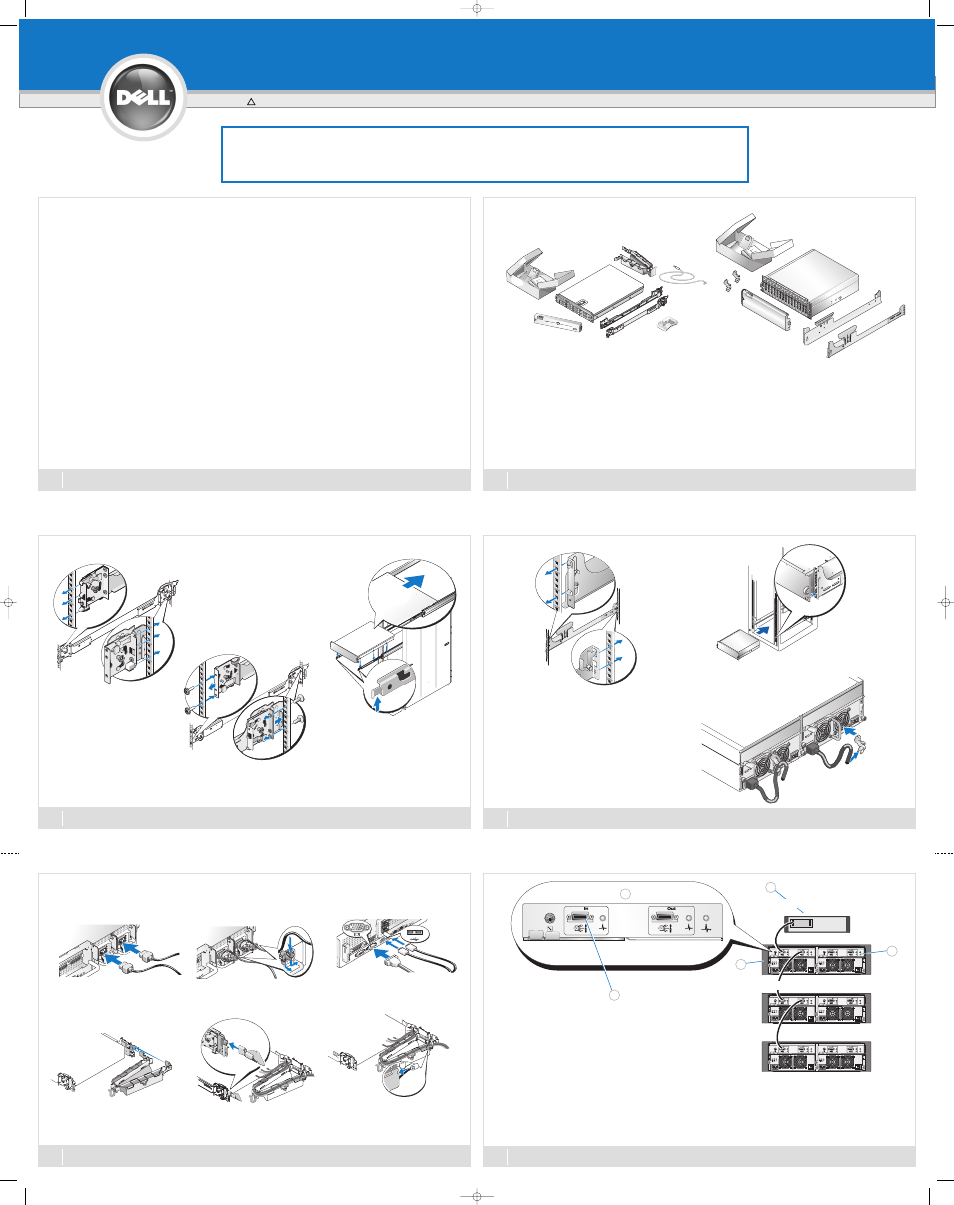

Solution Components
3
Install the DL2000 system in the rack. For information on specific rail type (RapidRails or VersaRails),
see the documentation included with your rail kit.
Install the RapidRails
Install the VersaRails
Install the System in the Rack
1.
DL2000 PowerEdge Expandable RAID
Controller (PERC)
2.
MD1000 expansion enclosure
3.
Primary Enclosure Management
Module (EMM)
4.
Secondary EMM
5.
Primary EMM SAS In port
NOTE:
If more than one MD1000 is used (up
to three per PERC connection is supported),
connect the SAS Out port on the primary EMM
to the SAS In port of the next down-chain
enclosure.
2
3
5
(optional)
(optional)
NOTE:
If a SCSI, SAS or Fibre Channel host adapter has been
installed for use with an optional tape device, see the Dell
PowerVault DL Backup To Disk Appliance Quick Start Guide for
information on adding the tape device.
Dell™ PowerVault™ DL2000 System
Dell™ PowerVault™ MD1000 Storage Enclosure
Includes:
- System bezel
- SAS cable
- Power cords (2)
- Power cord retention brackets (2)
- Mounting rails (2)
Includes:
- System bezel
- Power cords (2)
- Power cord retention brackets (2)
- Mounting rails (2)
- Cable management arm
- Status indicator cable (optional)
- System media and user documentation
PowerVault MD1000 Storage Enclosure(s)
End-User License Agreement (EULA)
•
Before using your system, please read the Dell End-User Software License Agreement (EULA) that came with your system. This agreement is also located at support.dell.com under "Terms of Sale."
•
You must consider any CD, DVD, or diskette set of Dell-installed software as BACKUP copies of the software installed on your system’s hard-disk drive.
•
If you do not accept the EULA terms, please call the customer assistance telephone number. For customers in the United States, call 800-WWW-DELL (800-999-3355). For customers outside the United States, visit
ssu
up
pp
po
orrtt..d
de
ellll..c
co
om
m, specify your country or region in the C
Ch
ho
oo
osse
e a
a C
Co
ou
un
nttrryy//R
Re
eg
giio
on
n drop-down menu, and click C
Co
on
ntta
ac
ctt U
Uss.
4
4. Install the Cable Management Arm
5. Attach the Cable Management
Arm Ramp Assembly
6. Route the Cables Through
the Cable Management Arm
3. Connect the Keyboard, Mouse,
Monitor, and Ethernet Cables
1. Connect the Power
2. Connect the Power Cord
Retention Brackets
1
PowerVault DL2000 System
