If your system does not use mounting hardware, check that the holes in the chassis are aligned with the holes in the side of the tape drive (see Figure 4).

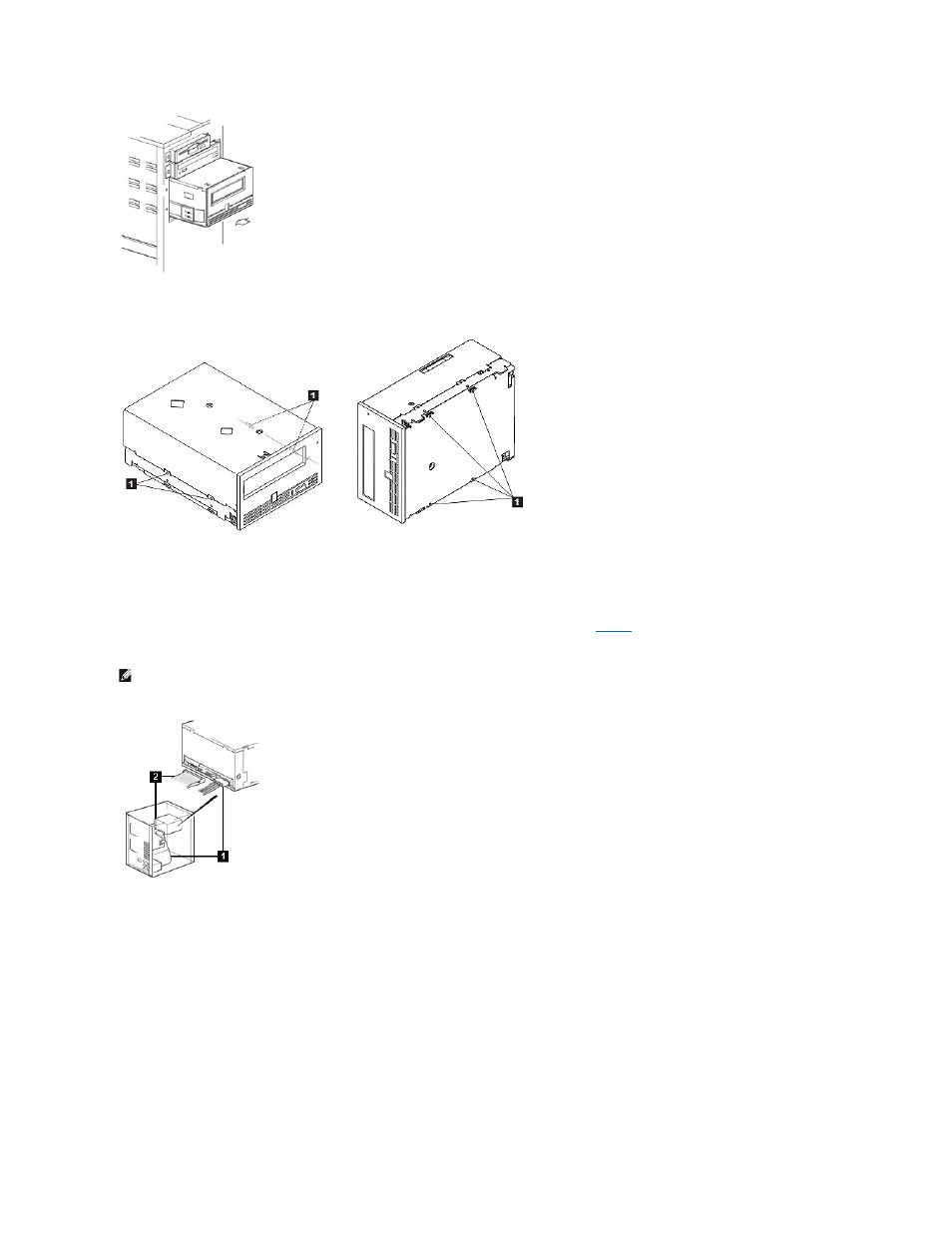

Figure 4. Mounting Holes on Tape Drive
1. M-3 mounting screw holes
Do not secure the drive with screws at this point because you may have to move the drive to get the cables in place.
Step 7 — Attaching Power and SCSI Cables
Attach a spare power cable from the system's internal power supply to the power connector, as shown in Figure 5 , number 1.
Attach a spare SCSI cable on the system's SCSI ribbon cable to the SCSI connector, as shown on Figure 5, number 2.
Figure 5. Attach Power and SCSI Cables
1. Power cable
2. SCSI cable
Step 8 — Securing the Drive
The tape drive can be mounted several ways. Ensure that you have the proper mounting rails or drive mounting sled and the correct screws (M-3). Some
systems require the drive to be inserted into a media bay and attached directly to the system.
Figure 6. Secure the Drive
NOTE: If the drive is the last device on the SCSI chain, it must be terminated.
