Replacing the Camera
1. Follow the instructions in Before You Begin .
2. Place the camera module on the display cover using the alignment posts.
3. Press down on the camera module to secure it to the display cover.
4. Place the WLAN antenna on the camera module and replace the two screws that secure the WLAN antenna to the display cover.
5. Connect the camera cable to the connector on the camera.
6. Replace the display bezel (see Replacing the Display Bezel ).
7. Replace the display assembly (see Replacing the Display Assembly ).
Back to Contents Page

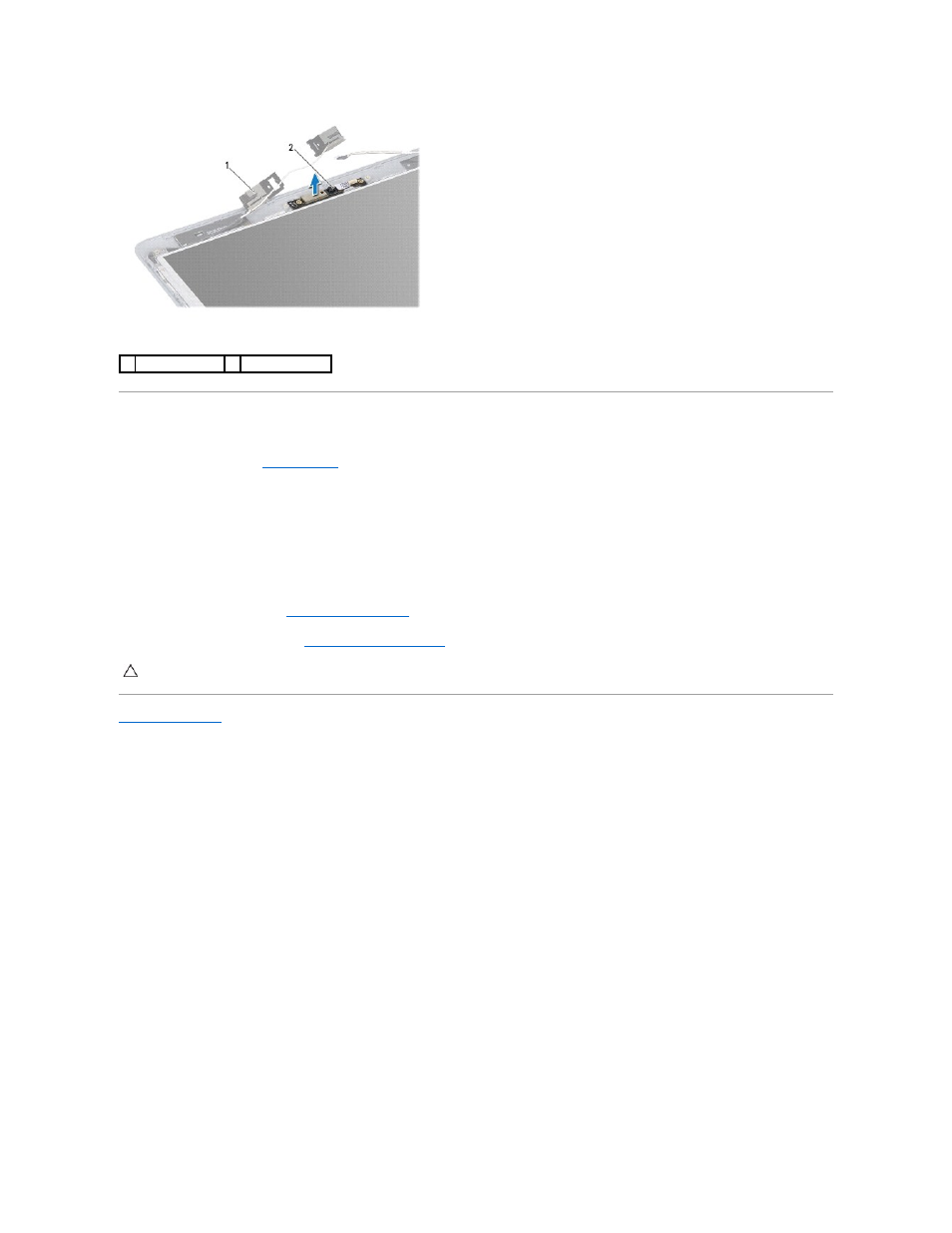

1 WLAN antenna 2 camera module
CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.
