24
Setting Up the Dell|EqualLogic PS Series SAN
To create a volume:
1 Click Create Volume in the Group Summary window. The Create Volume
window appears, as shown in Figure . Enter a unique volume name and the
volume size. Optionally, reserve snapshot space for the volume. The Space
Utilization table shows the current group capacity and the capacity with
the new volume.

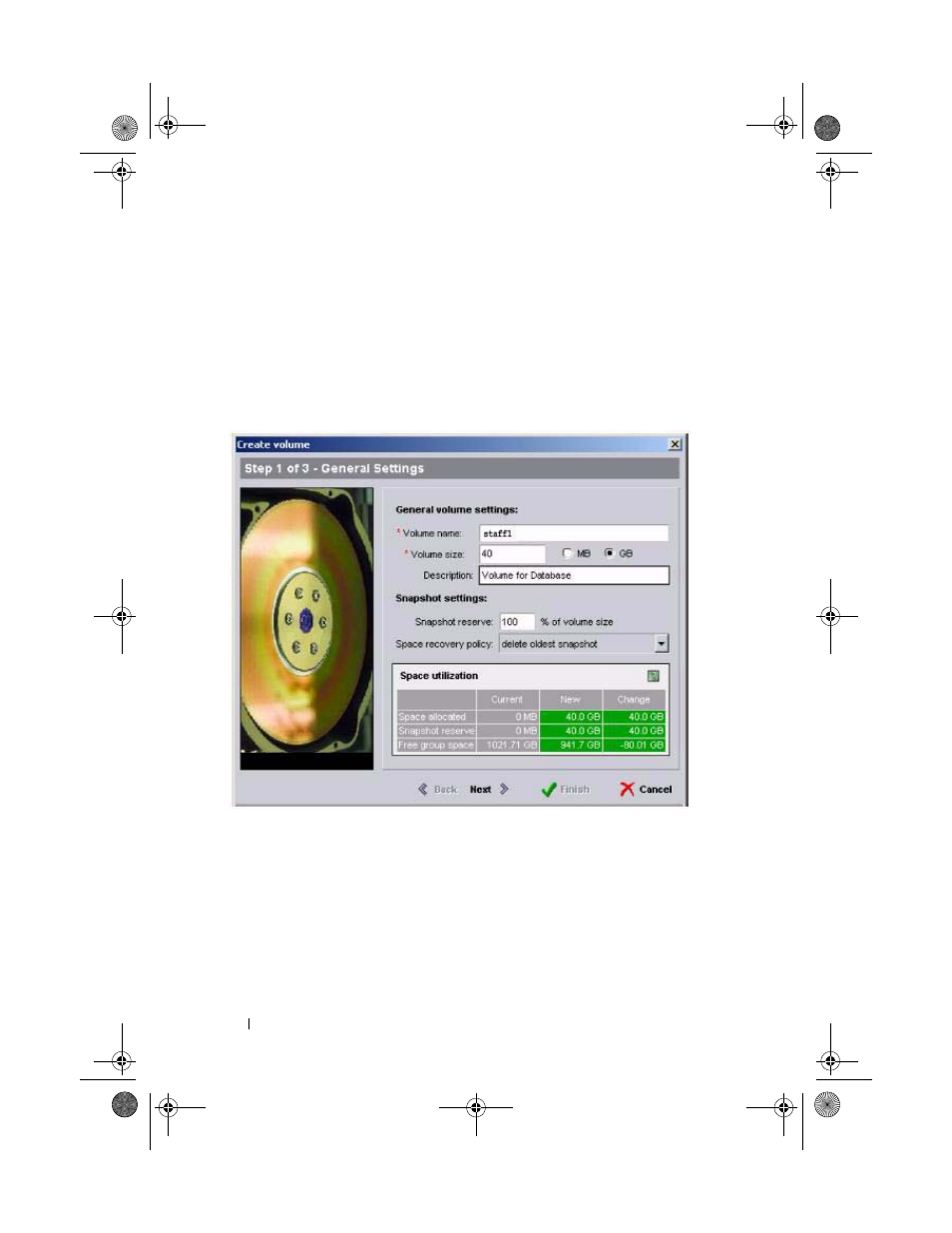

Figure 4-2. Group Manager - Create Volume
It is recommended that you select meaningful volume names such as
cluster1-quorum for the quorum volume, cluster1-data1 for a service volume,
and cluster1-test for a testing volume. This helps to eliminate confusion if
you have multiple clusters attached to the same PS Series group.
