6. Install the keyboard.
7. Install the battery.
8. Follow the procedures in After Working Inside Your Computer .
Removing the Power-Button Board
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) battery
b) keyboard
c) palmrest

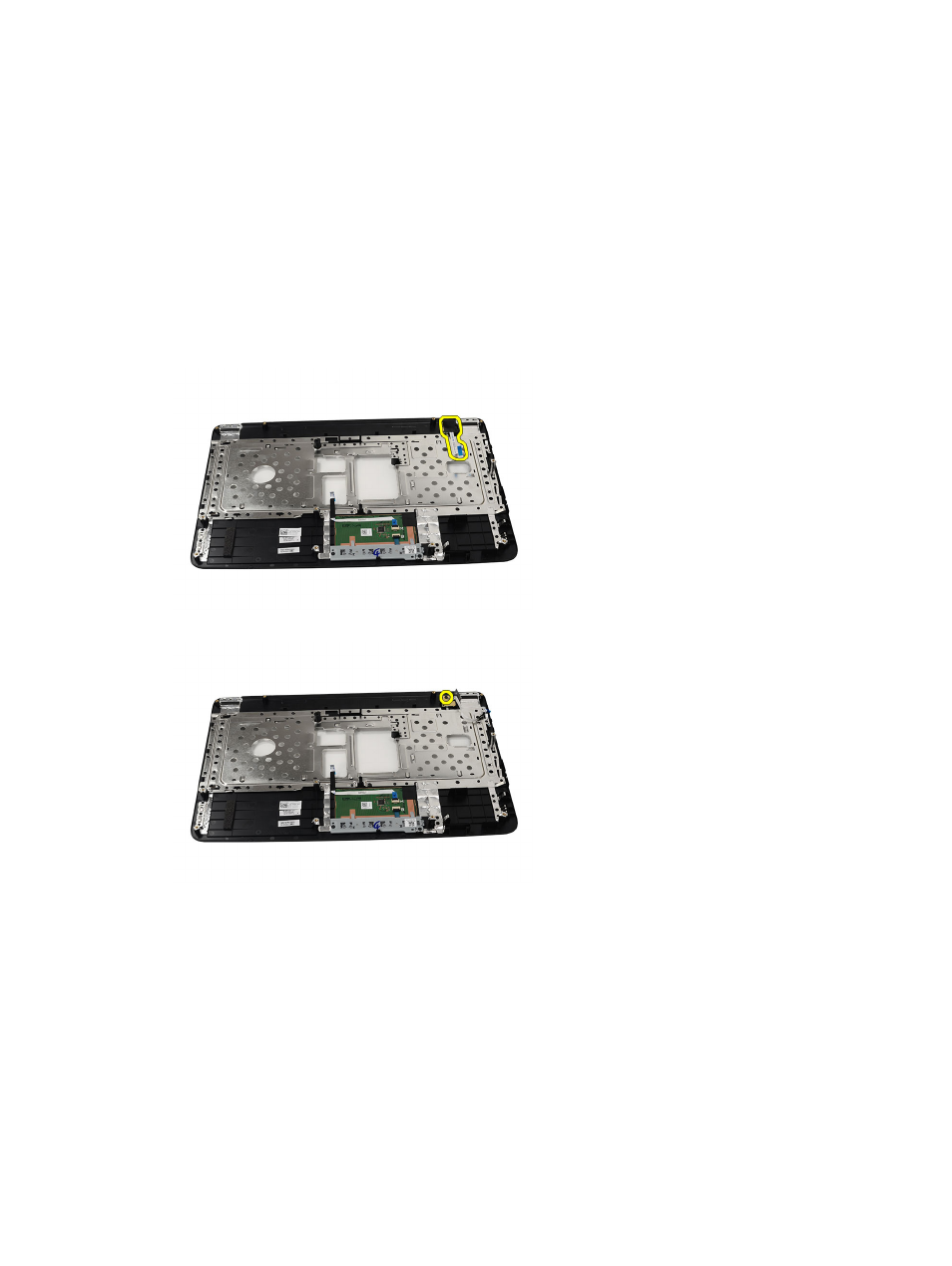

3. Peel the power-button board cable from the adhesive affixing it to the palmrest.
4. Flip the palmrest and remove the screw that secures the power-button board to the palmrest.
5. Lift up the power-button board and release the power-button board cable through the opening.
