RS232 Command Guide
for W3202MH/W3706MH DAO
1. Introduction
W3202MH and W3706MH are designed with control by wire capability via RS232. This
document describes the RS232 command protocol and command list.
2. RS232 Protocol
2.1 Communication Settings

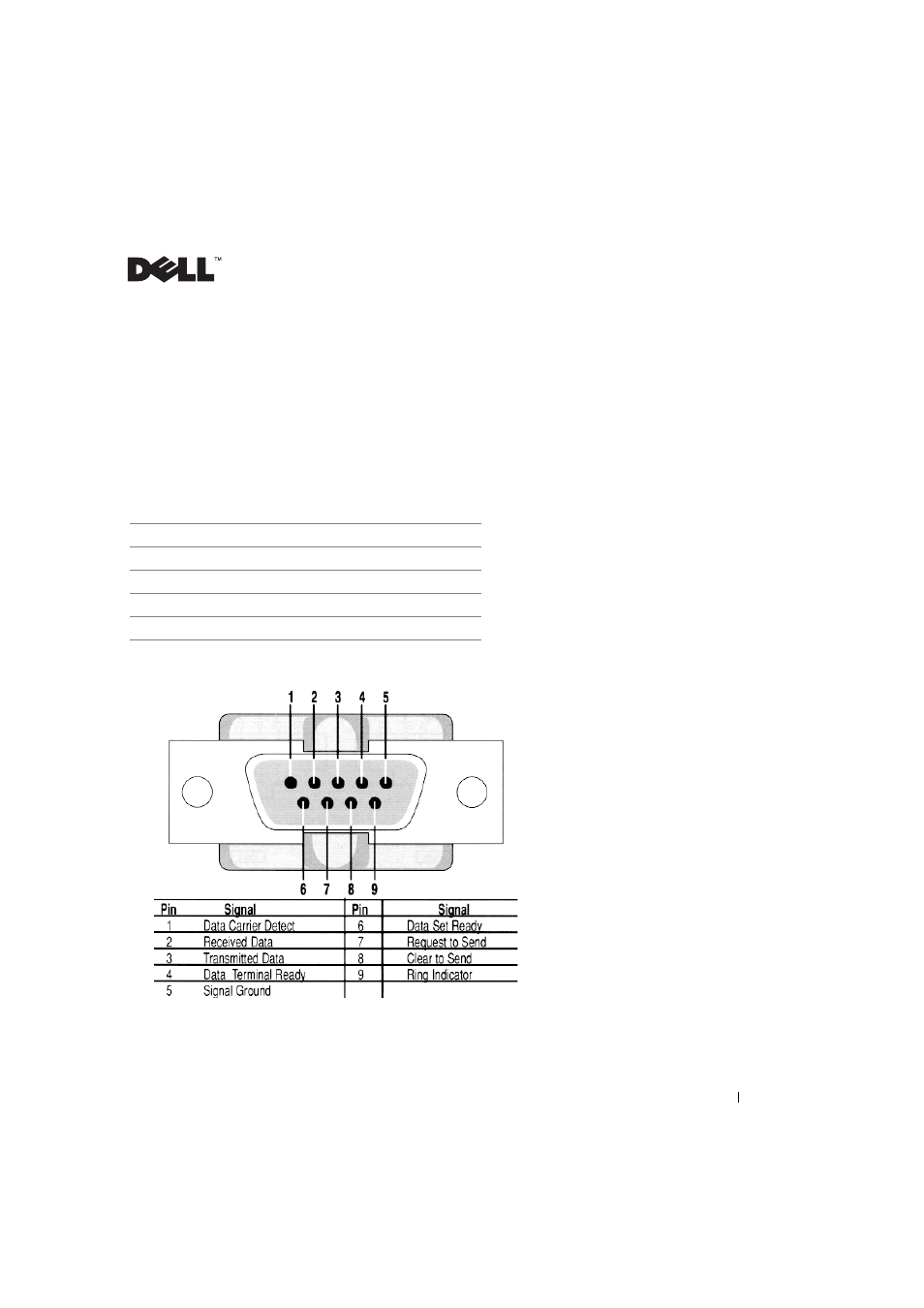

RS232 pin out DB-9 pin
NOTE: DELL generally use common RS232 connector,So you just plug in connector from PC to DTV.
Connection Settings Value
Baud Rate 19200
Data Bits 8
Parity None
Stop Bits 1
