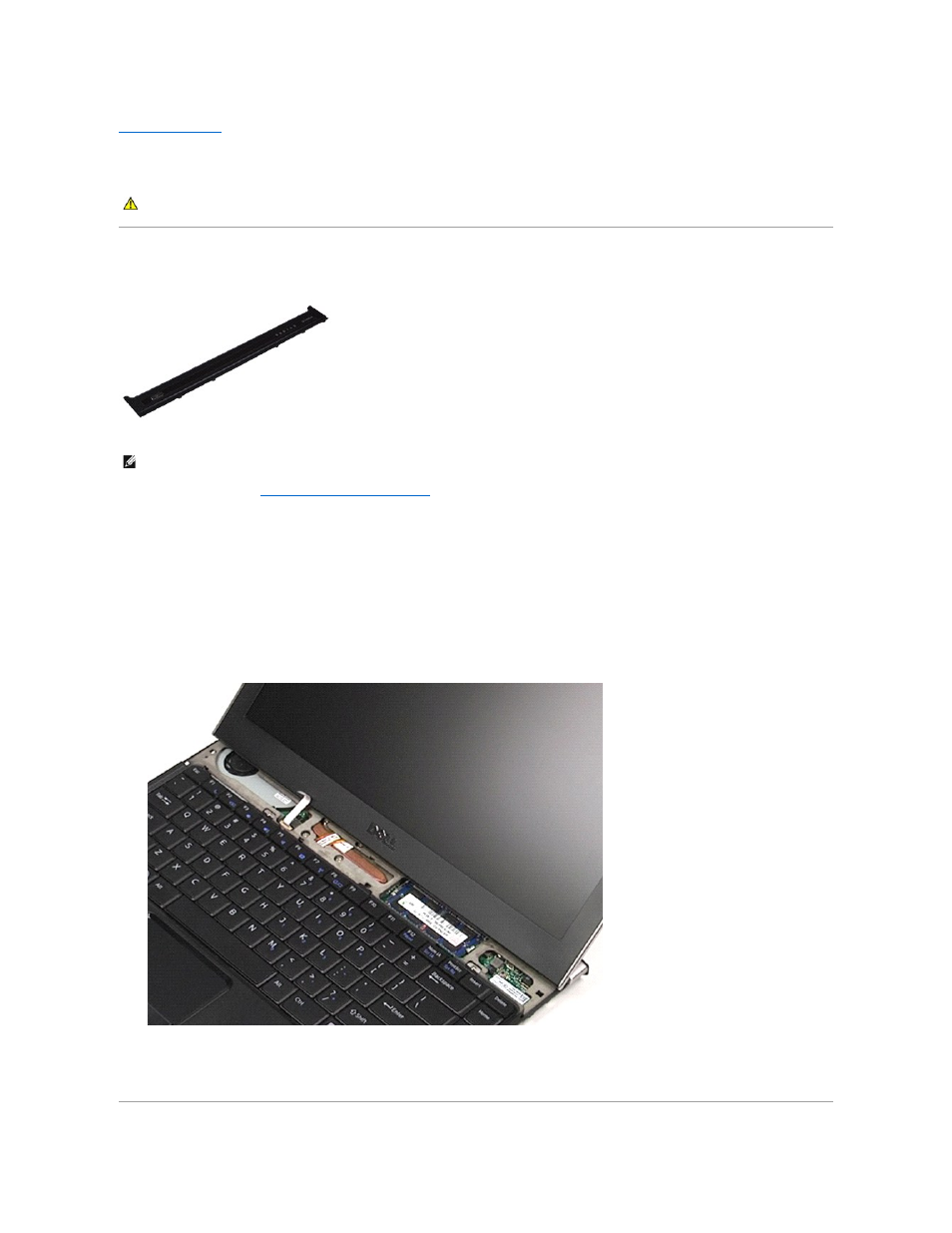

LED Cover
Dell™ Vostro™ V13 Service Manual
Removing the LED Cover
1. Follow the procedures in Before Working Inside Your Computer .
2. Starting from the right side of the computer, use a plastic scribe to gently pry up the LED cover from the computer chassis.
3. Carefully pull the LED cover toward the keyboard, then flip it up toward the display.
4. Disconnect the LED board cable from its connector on the LED cover.
5. Lift the LED cover up and away from the computer.
Replacing the LED Cover
To replace the LED cover, perform the above steps in reverse order.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTE: You may need to install Adobe® Flash® Player from Adobe.com in order to view the illustrations below.
