Dell Inspiron 660s (Early 2012) - Manual (Page 52)

48
Front I/O Panel
2 Remove the front I/O panel cables from the routing guide on the chassis.
3 Remove the screw that secures the front I/O panel to the front panel.
4 Slide the front I/O panel toward the side to release the clamps from the
front panel and pull the front I/O panel away from the computer.

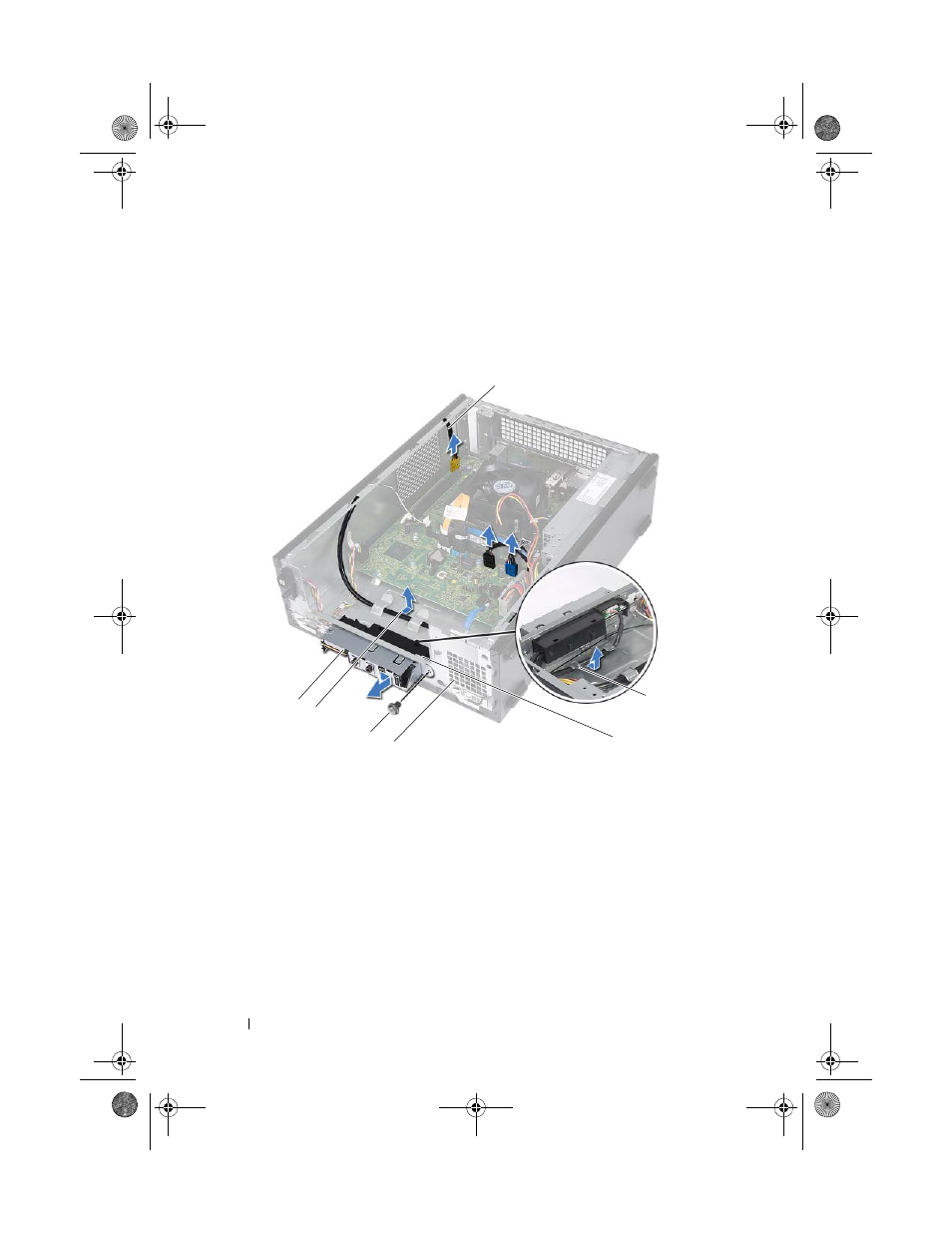

1 front I/O panel 2 cable routing
3 screw 4 front panel
5 front I/O panel clamps (4) 6 routing guides
7 front I/O panel cables (3)
3
2
1
7
5
6
4
