Vehicle care 9-101 – Cadillac 2010 Cadillac CTS/CTS-V User Manual
Page 401

Vehicle Care
9-101
5. Slide both D-rings (E) on each
side of the vehicle as far
rearward as they will go.
6. Route one hook (A) under the
wheel spoke (C) and place the
hook into the slot in the cargo
rail on the driver side of the
vehicle.
7. Slide the D-ring (E) on that side
forward to engage the hook.
8. Route the other hook under the
wheel spoke (D) and place the
hook into the slot in the cargo
rail on the passenger side of the
vehicle.
9. Slide the D-ring (E) on that side
forward to engage the hook.
Compact Spare Tire and Tools
(Sedan)

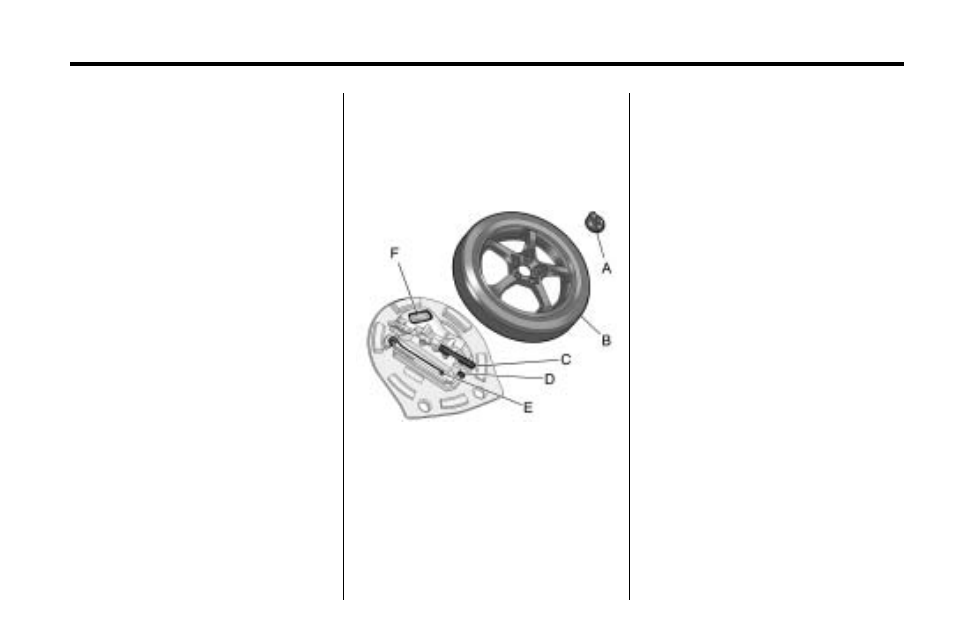

Use the following diagram as a
guide for storing the compact spare
tire and tools in the trunk:
A. Wing Nut
B. Compact Spare Tire or
Flat Tire (valve stem down)
C. Jack
D. Wheel Wrench
E. Extension
F. Strap
Reverse the instructions for
removing the spare tire and tools to
store the compact spare tire.
