Engine Compartment
Fuse Block (CTS-V)

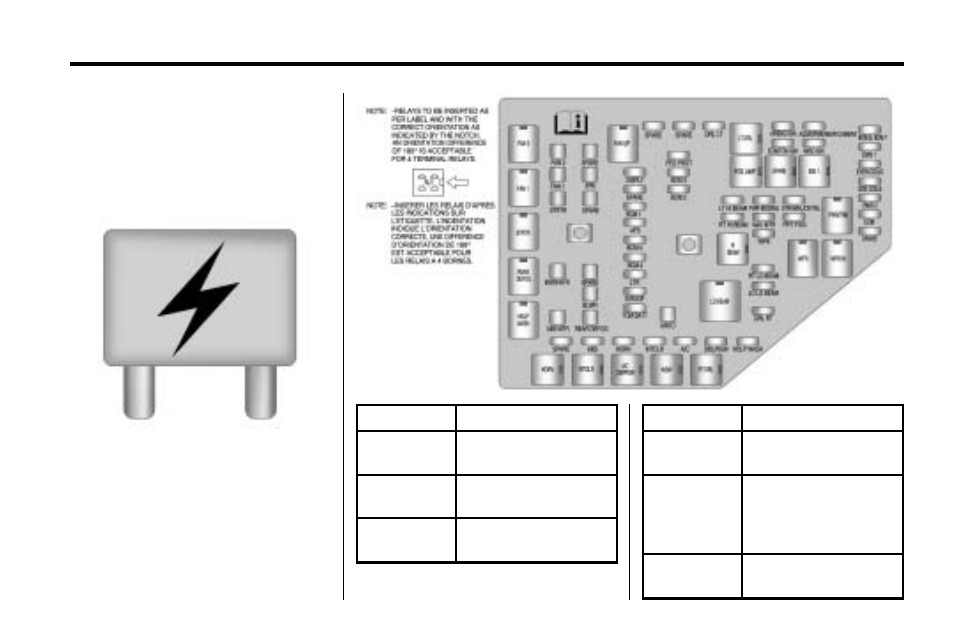

The underhood fuse block is located
on the passenger side of the engine
compartment.
Lift the fuse block cover to access
the fuses.
Notice: Spilling liquid on any
electrical components on the
vehicle may damage it. Always
keep the covers on any electrical
component.
Mini-Fuses
Usage
A/C CLTCH
Air Conditioning
Clutch
ABS
Antilock Braking
System (ABS)
AFS
Adaptive Forward
Lighting System
Mini-Fuses
Usage
AIRBAG
IGN
Airbag Switch
AQS/
ISRVM/
REAR
CAMERA
Air Quality Sensor/
Inside Rear View
Mirror/Rear View
Camera
BCM 1
Body Control
Module 1
