Cabling Your Solution
13

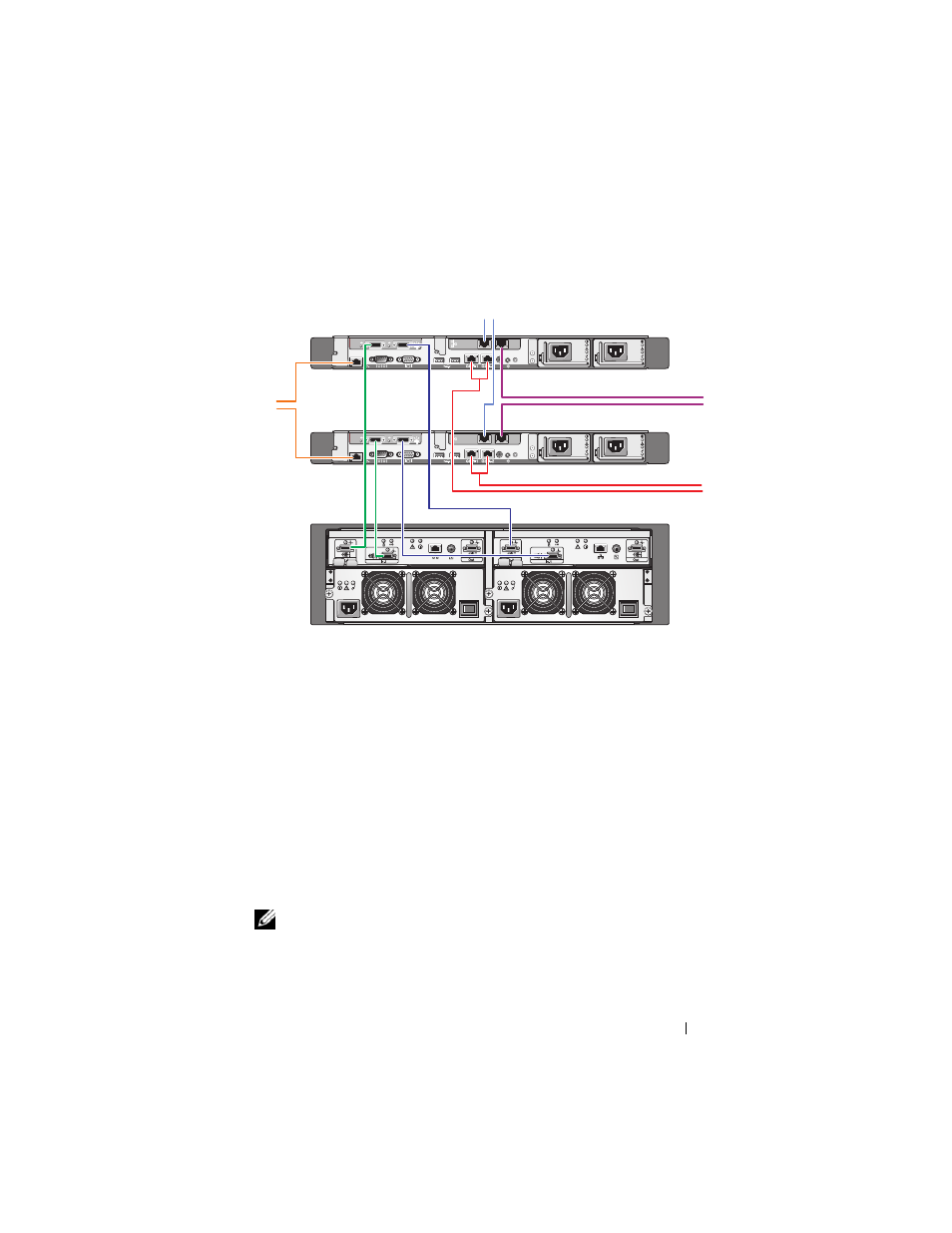

Figure 2-2. Two-Node Configuration
NOTE:
Setting up the cluster using Microsoft
®
Cluster Services (MSCS) is
supported only on the Microsoft Windows
®
Unified Data Storage Server 2003,
Enterprise Edition operating system. If you did not purchase the Enterprise
Edition, contact your sales representative to obtain an upgrade kit.
1 NIC port A to Gb Ethernet
switch (optional) 5 Port 1 on PowerVault NX1950 storage
system 1 SAS HBA to In-1 on
controller 1
2 NIC port B to Gb Ethernet
switch (optional) 6 Port 0 on PowerVault NX1950 storage
system 1 SAS HBA to In-1 on
controller 0
3 Gb1 and Gb2 to Gigabit
Ethernet switch(es) 7 Port 0 on PowerVault NX1950 storage
system 0 SAS HBA to In-0 on
controller 0
4 Port 1 on PowerVault NX1950
storage system 0 SAS HBA to
In-0 on controller 1 8 DRAC port to Ethernet switch for
lights-out management (optional)
1
2
3
4
7
8
PowerVault NX1950 storage system 0
PowerVault MD3000 storage array 6
5
PowerVault NX1950 storage system 1
controller 1 controller 0
