40" ELECTRIC RANGE INSTALLATION INSTRUCTIONS
Anti-tip Bracket Installation
Instructions
Important Safety Warning
To reduce the risk of tipping of the range, the range must
be secured to the fl oor by the properly installed anti-tip
bracket and screws packed with the range. Failure to
install the anti-tip bracket will allow the range to tip over
if excessive weight is placed on an open door or if child
climbs upon it. Serious injury might result from spilled hot
liquids or from the range itself.
If range is ever moved to a different location, the anti-tip
brackets must also be moved and installed with the range.
Instructions are provided for installation in wood or
cement fl oor. When fastening to fl oor, be sure that screws
do not penetrate electrical wiring or plumbing.

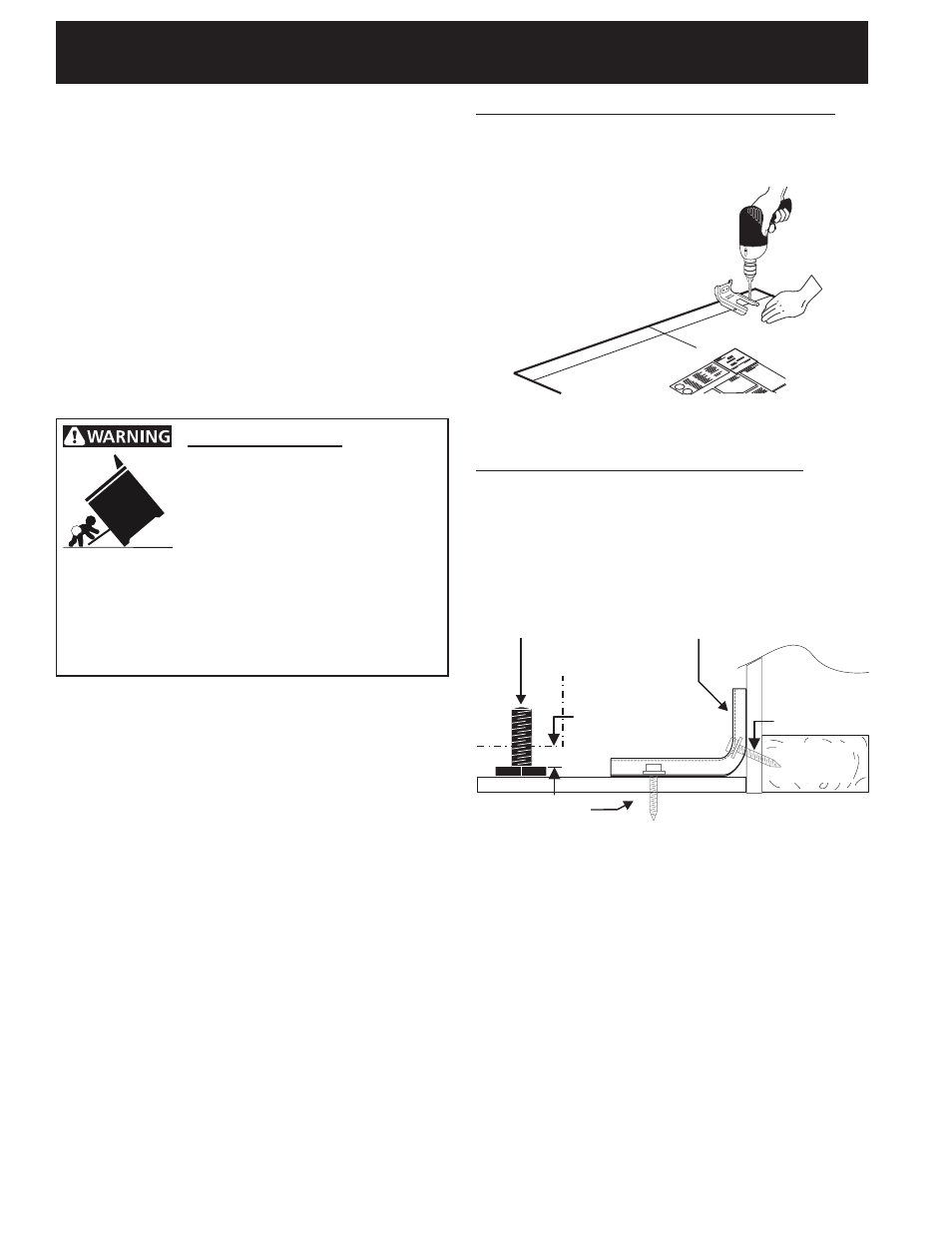

Figure 10
Figure 11
A. Locate the Bracket Using the Template
-
Locate the bracket position by placing the template on
the fl oor, against the back wall and on the right edge of
cabinet. Mark the location of the screw holes, shown on
template.
A child or adult can tip the range •
and be killed.
Verify the anti-tip device has been
•
installed to fl oor or wall.
Tip Over Hazard
Ensure the anti-tip device is re-engaged to fl oor •
or wall when the range is moved.
Do not operate the range without the anti-tip
•
device in place and engaged.
Failure to follow these instructions can result in
•
death or serious burns to children and adults.
Leveling Leg Anti-Tip Bracket
Floor Mount
1/8" Minimum
Wall Plate
Wall Mount
B. Drill Pilot Holes and Fasten Bracket - Drill
a 1/8" pilot hole where screws are to be located. If
bracket is to be mounted to the wall, drill pilot hole at
an approximate 20° downward angle. If bracket is to be
mounted to masonry or ceramic fl oors, drill a 3/16" pilot
hole 1-3/4" deep. The screws provided may be used in
wood or concrete material. Use a 5/16" nut-driver or fl at
head screwdriver to secure the bracket in place.
