LaserMax LMS-UNI-MAX RED User Manual
Uni-max, Lms-uni), Installation guide

installation guide

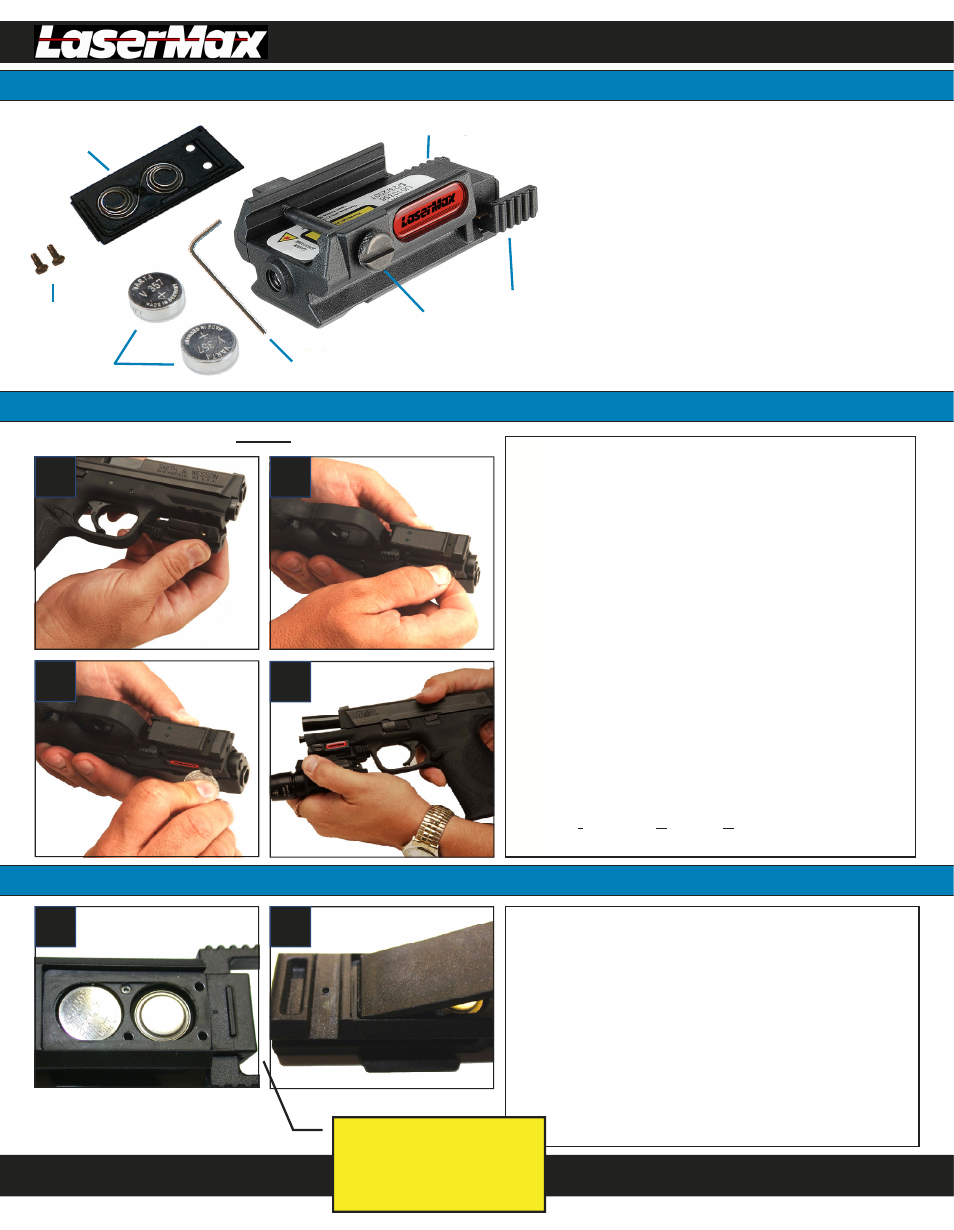

LASER HOUSING
CLAMPING SCREW
BATTERY COVER*
FLAT HEAD SCREWS(2)
BATTERIES 357(2)
ADJUSTMENT TOOL(2)
ACTIVATION SWITCH
What’s in the Box
1.800.527.3703
c
d
e
\
\
installation guide
Installing the Uni-Max Laser System
Remove the magazine from your firearm and clear
the action. Make sure your gun is unloaded.
Check again.
Slightly loosen the Clamping Screw on the Laser
Housing to open rail grips. Do not remove Clamping
Screw. Mount Uni-Max on the rail of your firearm,
making sure the rail grips on the Uni-Max are firmly
set into the grooves on rail, and Clamping Screw is in
line with notch in rail. (See Figure a)
Tighten Clamping Screw with fingers (See Figure b).
To ensure a secure fit, further tighten Clamping Screw
with a screwdriver or coin (a quarter works best).
(See Figure c)
Turn on the laser by pressing in on the Activation
Switch from the right or the left side. The center
position is off.
Follow the manufacturer’s instructions to attach your
choice of additional accessories onto the Uni-Max
IPR (Integrated Picatinny Rail). (See Figure d)
Changing the Batteries
a
b
Unscrew and remove both Flat Head Screws
from Battery Cover.
Remove Battery Cover from Laser Housing and
insert Batteries into unit as shown. (See Figure e)
Put Battery Cover back in place on Laser Housing,
making sure the lip on the cover first engages slot in
Laser Housing. (See Figure f)
Install and tighten both Flat Head Screws into
Battery Cover. Do not over tighten.
Note correct orientation as
printed inside laser housing!
(Left)
negative side down. (Right) positive side down.
Ⓕ
Ⓔ
Ⓑ
Ⓐ
Ⓒ
Ⓓ
Ⓖ
f
TIME OUT!
To avoid unintentional
battery drain, the Uni-Max is set to turn
off after 30 minutes of constant use.
While in the time out mode, simply
cycle the activation switch off to refresh
the laser, and turn it back on.
Uni-Max
®
(LMS-UNI)
Parts:
Figures:
*contains 2
nd
adjustment tool
Ⓐ
Ⓑ
Ⓒ
Ⓓ
Ⓔ
Ⓕ
Ⓖ
(LMS-UNI-CS)
(LMS-UNI-AS)
(LMS-2X357)
(LMS-UNI-SKN)
(LMS-UNI-SKN)
