2.2 Version B
Situation:
Scatec can be moved along the conveyor
Position of the synchronization sensor is fixed
Test objects:
Put bright products in gripper
Adjustment:
Move the gripper slowly and stop immediately when the synchronization sensor switchs ON.
Adjust the position of the Scatec along the conveyor until the laser spot lies about 5 mm (b) behind the
holding point. Behind the gripper means, that the light spot is lower than the holding point. . The optimum
setting accuracy is + / - 5 mm.

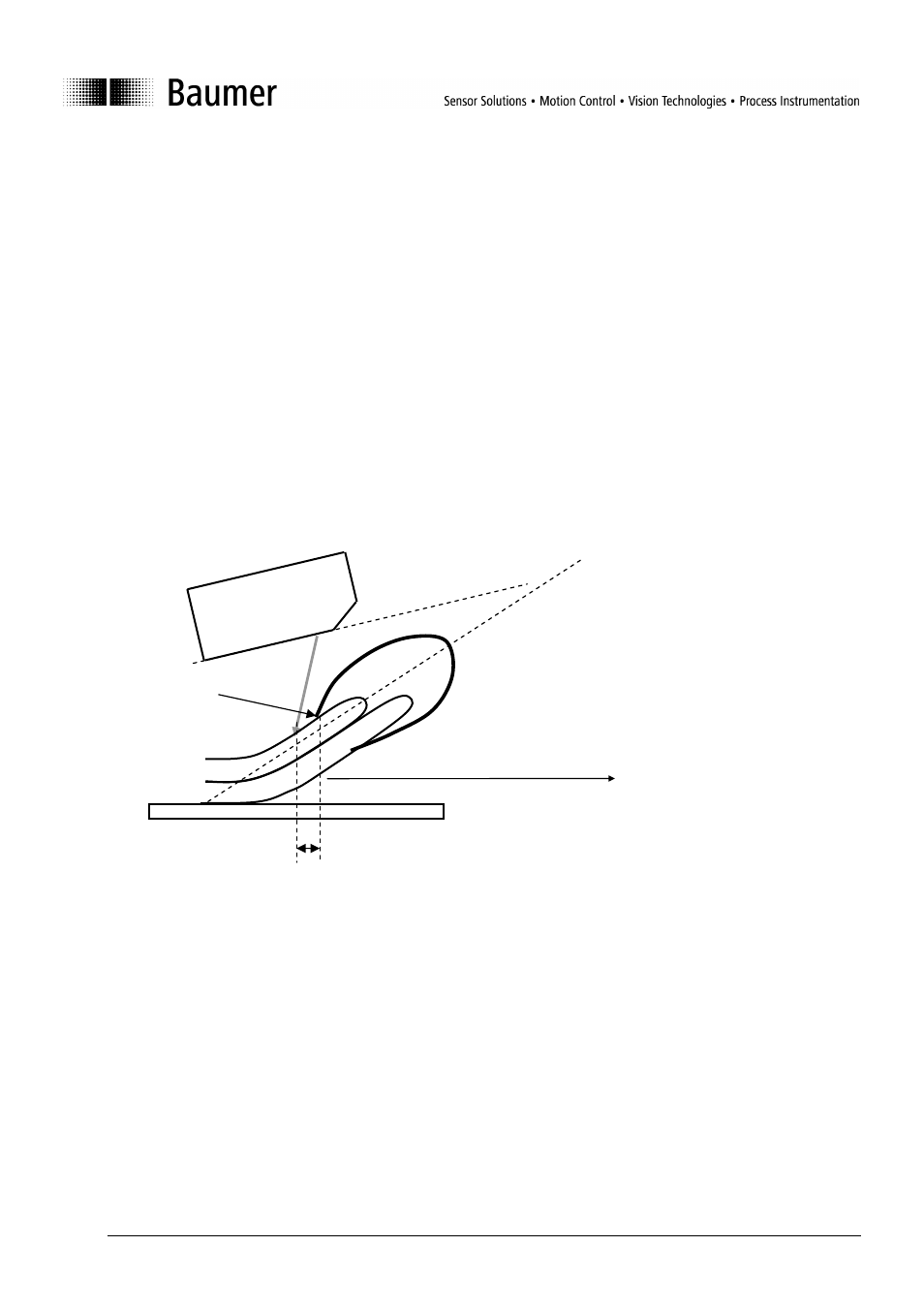

Scatec
Leading plate
magazines
gripper
Holding point
direction of
transport
b
