CY14B101K
Document Number: 001-06401 Rev. *I Page 16 of 28
Data Retention and Endurance
Parameter Description Min Unit
DATA
R
Data Retention 20 Years
NV
C
Nonvolatile STORE Operations 200 K
Capacitance
These parameters are guaranteed but not tested.
Parameter Description Test Conditions Max Unit
C
IN
Input Capacitance T
A
= 25
°C, f = 1 MHz,
V
CC
= 0 to 3.0 V
7 pF
C
OUT
Output Capacitance 7 pF
Thermal Resistance
These parameters are guaranteed but not tested.
Parameter Description Test Conditions 48-SSOP Unit
Θ
JA
Thermal Resistance
(junction to ambient) Test conditions follow standard test methods
and procedures for measuring thermal
impedance, in accordance with EIA/JESD51. 34.85
°C/W
Θ
JC
Thermal Resistance
(junction to case) 16.35
°C/W

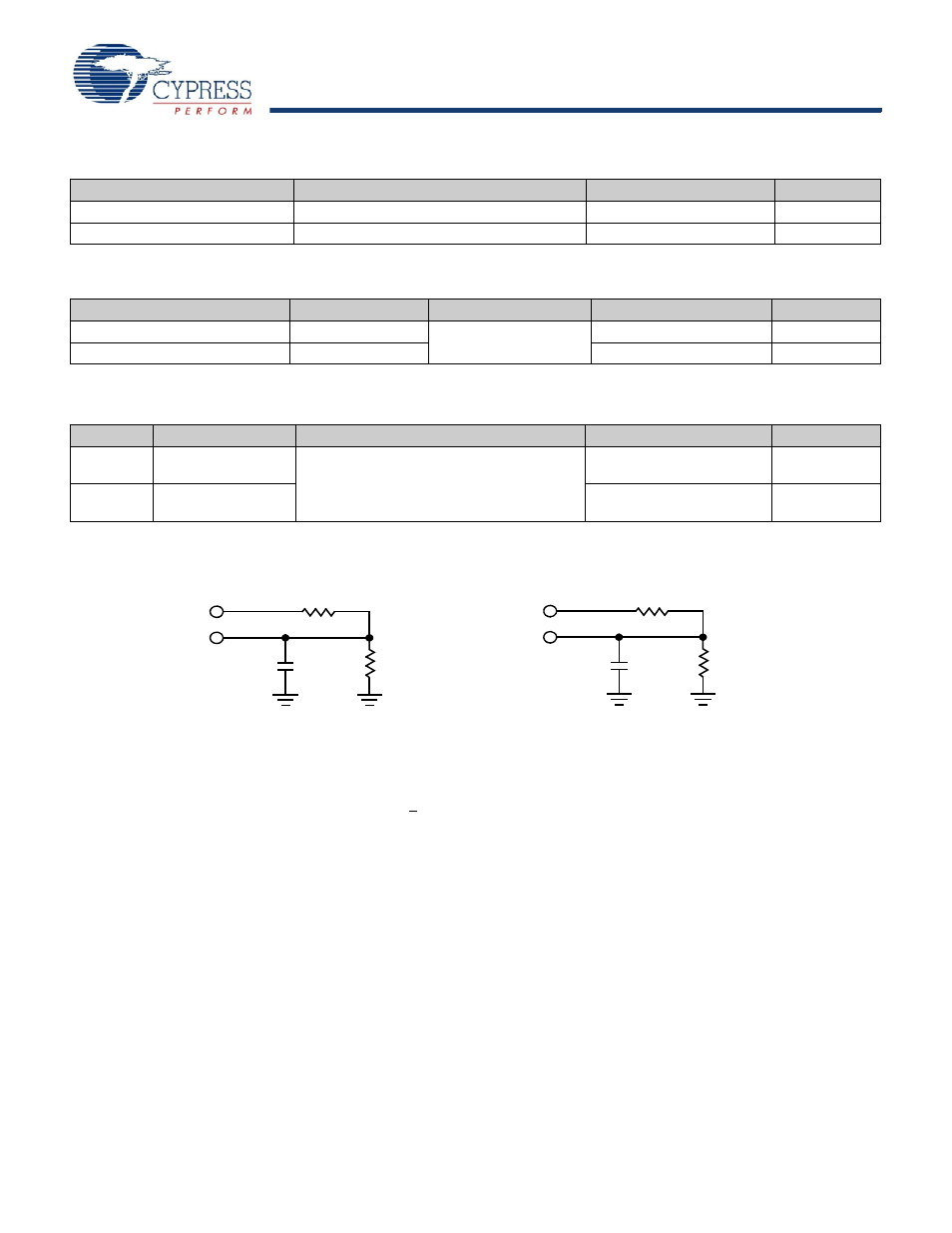

Figure 7. AC Test Loads
AC Test Conditions
3.0V
OUTPUT
5 pF
R1 577
Ω
R2
789
Ω
3.0V
OUTPUT
30 pF
R1 577
Ω
R2
789
Ω
For Tri-state Specs
Input Pulse Levels ..................................................0 V to 3 V
Input Rise and Fall Times (10% - 90%) ........................ <5 ns
Input and Output Timing Reference Levels ................... 1.5 V
