Kraus FVS-1002 - Manual (Page 7)

Step 3
Step 4

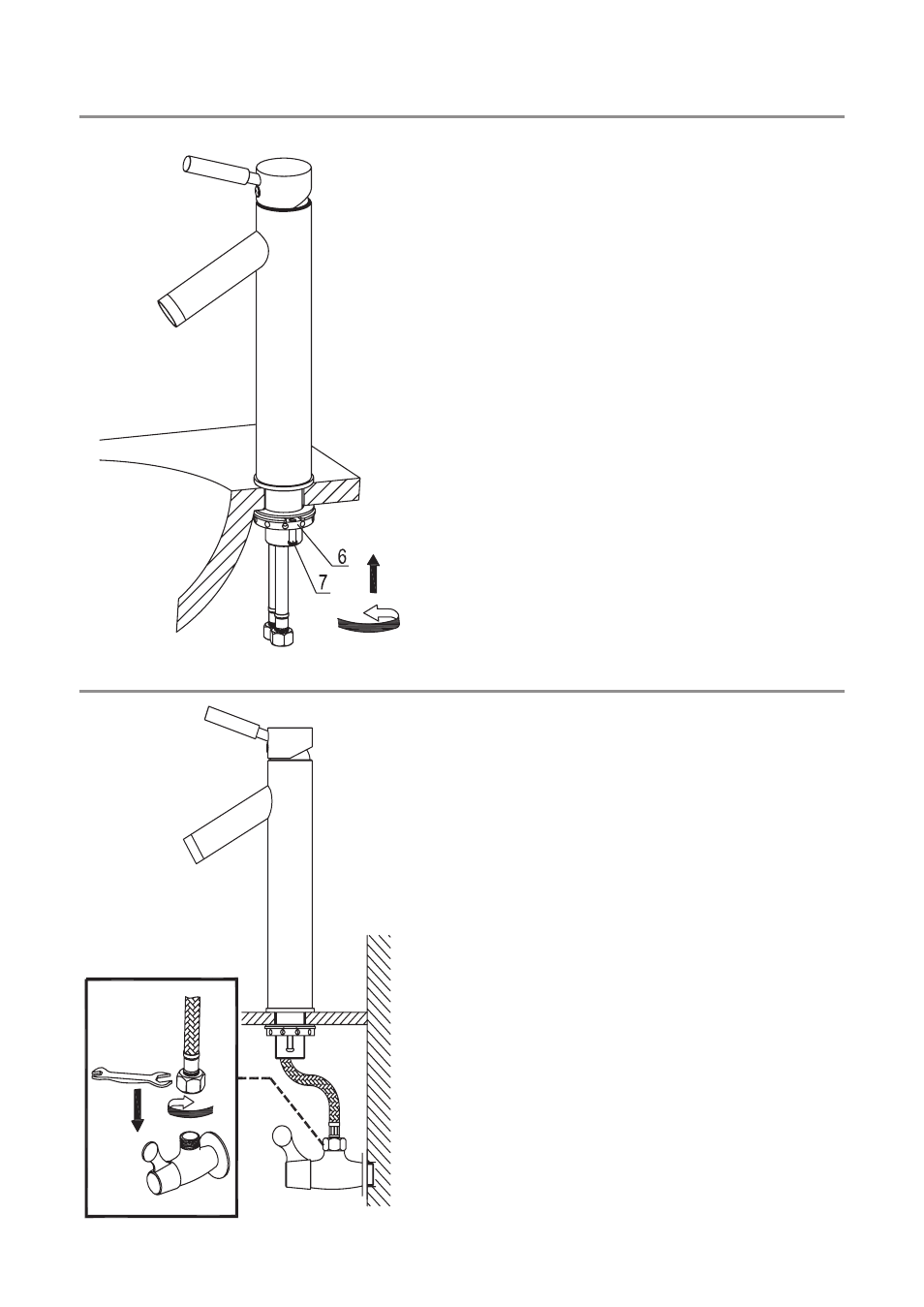

After adjusting the direction
of the faucet body (1), tighten
the mounting nut (6) until snug
and then tighten the mounting
screws (7) to the nut with a
Phillips head screw driver until
snug.
Connect hot and cold waterlines
(8) to the angle stops and
tighten with a wrench. Unscrew
the aerator cover by hand, and
remove the aerator, then turn on
the water to remove any leftover
debris
