Kraus FVS-1002 - Manual (Page 6)

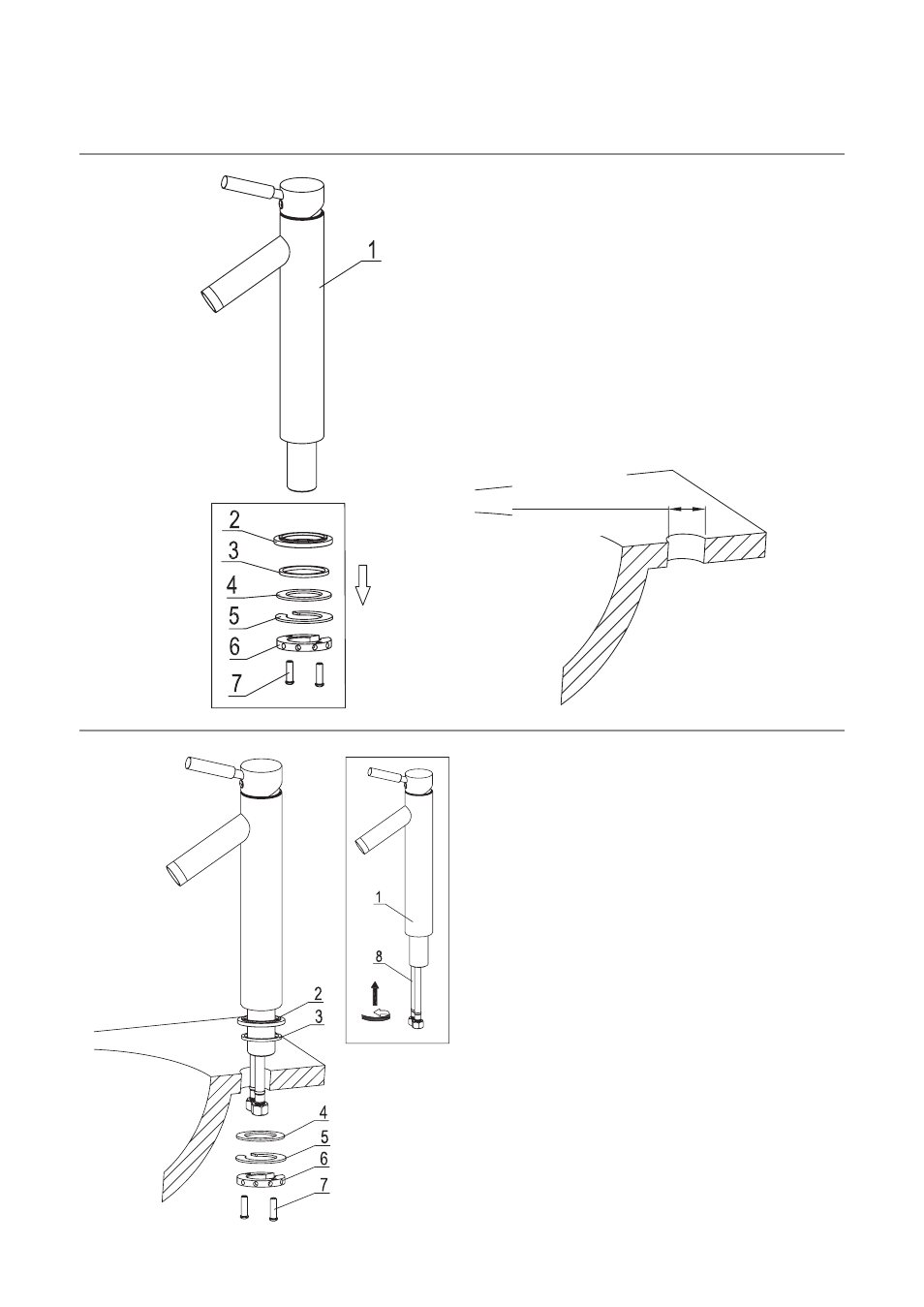

Step 1
Step 2
Remove rubber washer (4),
metal washer (5), mounting nut
(6) and mounting screws (7).
Keep the base trim ring (2) and
base O-ring (3) on the base of
the faucet.
Screw and hand-tighten the
hot and cold waterlines (8)
into the faucet body (1), hot
side left & cold side right when
spout is facing up. Install the
faucet body (1) through the
1-3/8” predrilled hole in the
countertop. Attach the rubber
washer (4), metal washer
(5), mounting nut (6), and
mounting screws (7) from
underneath the sink.
FVS-1002 Installation Procedures
1
2
3
4
5
6
7
8
9
Flush the
pipes
Do
not
Disassemble
Hot Water Cold Water
348
109 226
60 º
4 9/32” 8 7/8”
13 11/16”
Max x 35 Max
1 3/8”
Ш33-Ш35
Ш1 5/6”~Ш1 3/8”
(Suggested)
Ш1.29”~Ш1.37”
Ш33~Ш35 hole
1
2
3
4
5
6
7
8
9
Flush the
pipes
Do
not
Disassemble
Hot Water Cold Water
348
109 226
60 º
4 9/32” 8 7/8”
13 11/16”
Max x 35 Max
1 3/8”
Ш33-Ш35
Ш1 5/6”~Ш1 3/8”
(Suggested)
Ш1.29”~Ш1.37”
Ш33~Ш35 hole
1
2
3
4
5
6
7
8
9
Flush the
pipes
Do
not
Disassemble
Hot Water Cold Water
348
109 226
60 º
4 9/32” 8 7/8”
13 11/16”
Max x 35 Max
1 3/8”
Ш33-Ш35
Ш1 5/6”~Ш1 3/8”
(Suggested)
Ш1.29”~Ш1.37”
Ш33~Ш35 hole
1
2
3
4
5
6
7
8
9
Flush the
pipes
Do
not
Disassemble
Hot Water Cold Water
348
109 226
60 º
4 9/32” 8 7/8”
13 11/16”
Max x 35 Max
1 3/8”
Ш33-Ш35
Ш1 5/6”~Ш1 3/8”
(Suggested)
Ш1.29”~Ш1.37”
Ш33~Ш35 hole
1
2
3
4
5
6
7
8
9
Flush the
pipes
Do
not
Disassemble
Hot Water Cold Water
348
109 226
60 º
4 9/32” 8 7/8”
13 11/16”
Max x 35 Max
1 3/8”
Ш33-Ш35
Ш1 5/6”~Ш1 3/8”
(Suggested)
Ш1.29”~Ш1.37”
Ш33~Ш35 hole
