Kraus KPF-1630 - Manual (Page 9)

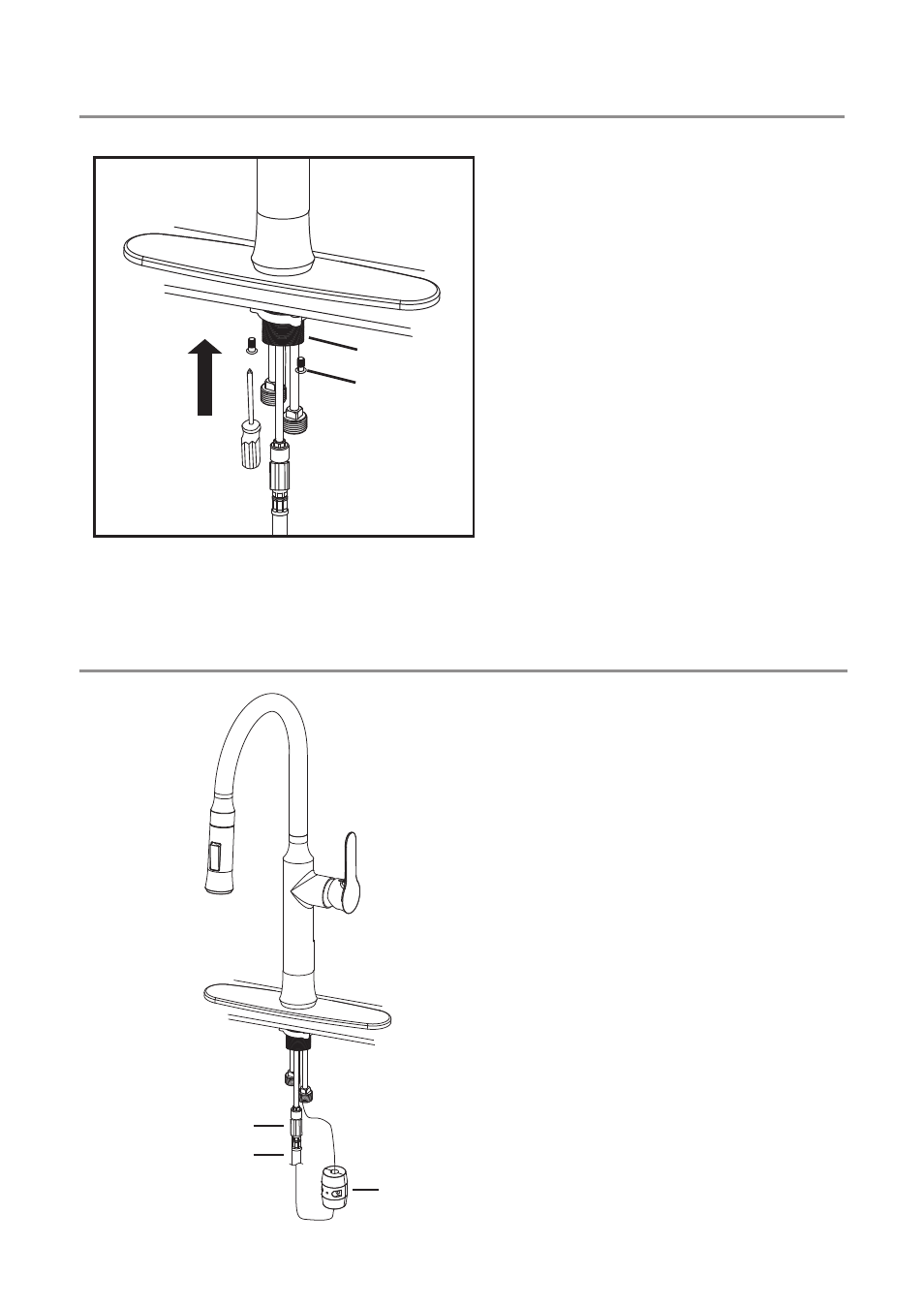

Step 4: Secure mounting hardware
Adjust direction of faucet
body (2) so that handle is on
right side of faucet. Tighten
mounting nut (4B) until snug.
Tighten mounting screws
(4C) to nut with a Phillips
screwdriver until snug
Step 5: Attach spray hose and counterweight
Connect spray hose (5) to
check valve (7) attached to
supply line. Install weight
(6) on lowest vertical point
on spray hose (5)
