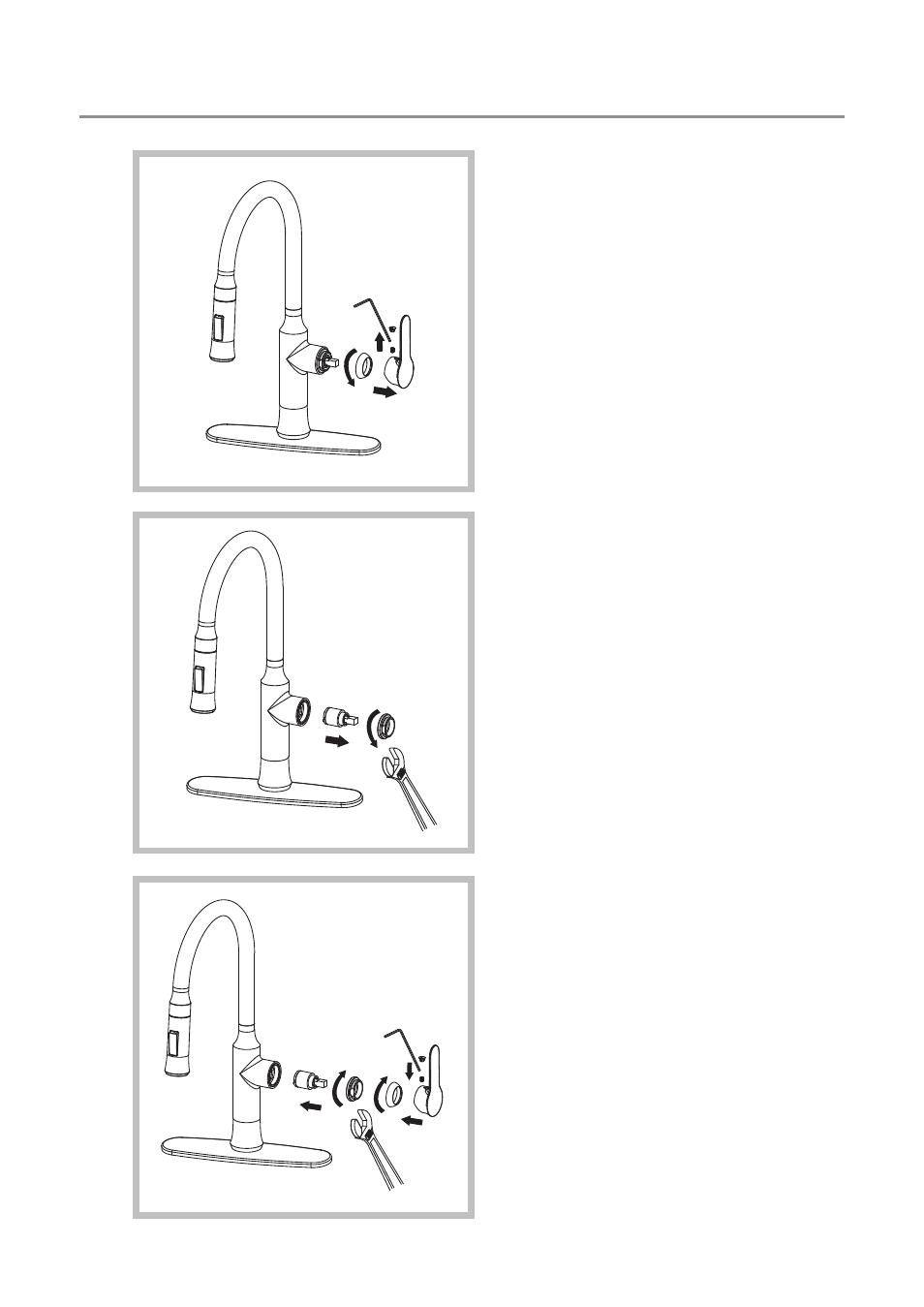

Step 1: Remove button
located at the top of the
handle. Loosen the set
screw with a hex wrench.
Remove the handle and
unscrew cartridge cover by
hand

Step 2: Unscrew the
locking nut with an
adjustable wrench. Remove
ceramic disc cartridge

Step 3: Place the new
cartridge in the handle
seat. Secure the cartridge
with the locking nut and
assemble the handle

Maintenance - Cartridge Replacement
