2.2 - Wash
The RapidWash can support up to 20 dispense programs. Press the Next or Prev
key (Figure 8) on the Touch Panel to select the program number you would like to
setup.

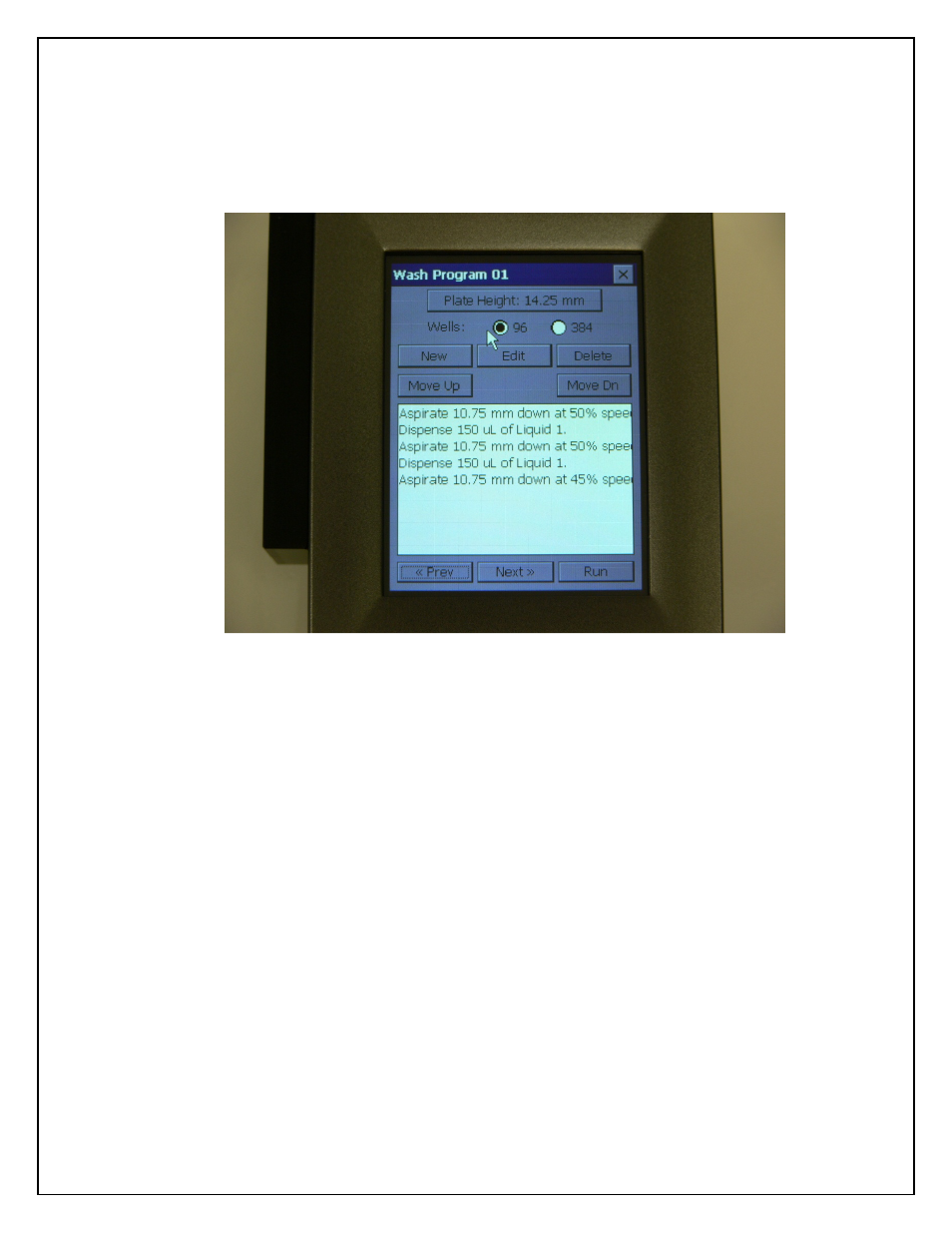

Figure 8
Wells – Select the well pattern of the plate used in this program by pressing the
appropriate screen button (Figure 8)
Plate Height
– Enter the height of the plate used in this program, in mm above the
base of the plate nest (see also Figure 9)
New
– This will add a new Aspirate, Dispense, or Delay step in your Wash
Program (see also Figure 10)
Move Up
– Allows you to move the position of the highlighted line up one line
in the program.
Move Dn
– Allows you to move the position of the highlighted line down one line
in the program.
