15

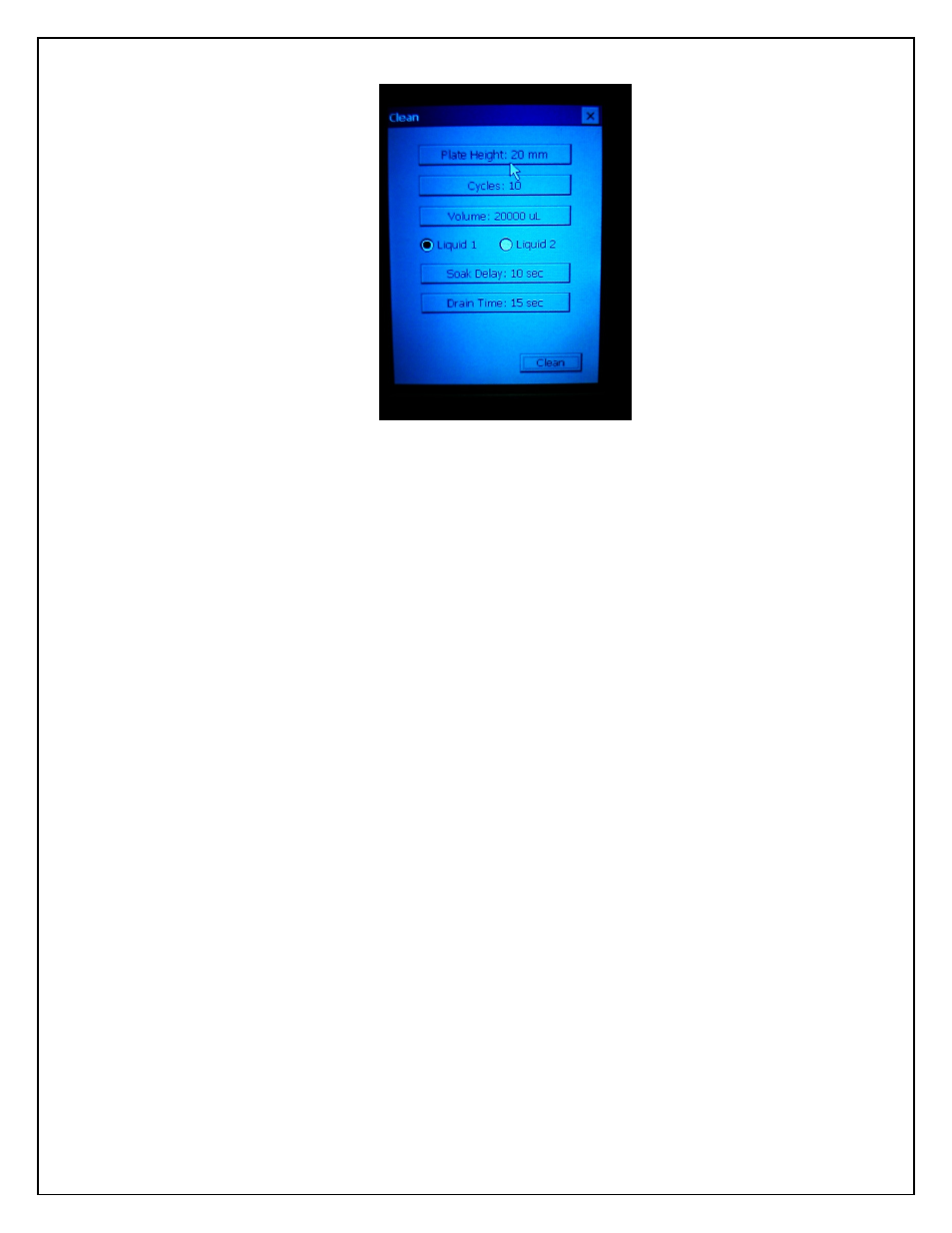

Figure 18
Plate Height - Operates as described previously
Cycles
- The number of times the cleaning process will be performed
Volume
- This is the volume dispensed through the system: because the fluid path
could be empty after your first cycle you should pay close attention to
this volume to avoid under or over dispensing into your wash plate
Liquid 1, Liquid 2
- Operates as described previously
Soak Delay
- Number of seconds the dispense manifold will soak in the dispensed
liquid
Drain Time
- The number of seconds the Dispense manifold will aspirate to waste
Empty Manifold
– This feature is used to pull vacuum on the aspirate manifold.
The unit does not move and only turns on the vacuum. This feature is typically
used when cleaning the manifold. The manifold does not need to be mounted
on the unit. On the run screen enter time in seconds and press “Run”.
Empty Trough
– This feature is used to pull vacuum on the priming trough. The
unit does not move and only turns on the vacuum to the trough. This feature is
used to clear excess fluid from the trough. On the run screen enter time in
seconds and press “Run”.
Dispense Liquid
– This feature is used to dispense liquid from unit. The unit does
not move, does not turn on any vacuum, and only dispenses liquid at the current
location. This feature is used to quickly test dispensing functionality. The net
volume dispensed from the unit is exactly as defined in the step, it is not defined
