Bracket, Drive, & Host Installation Page 8
Removing the DVD Drive & Fan Assembly

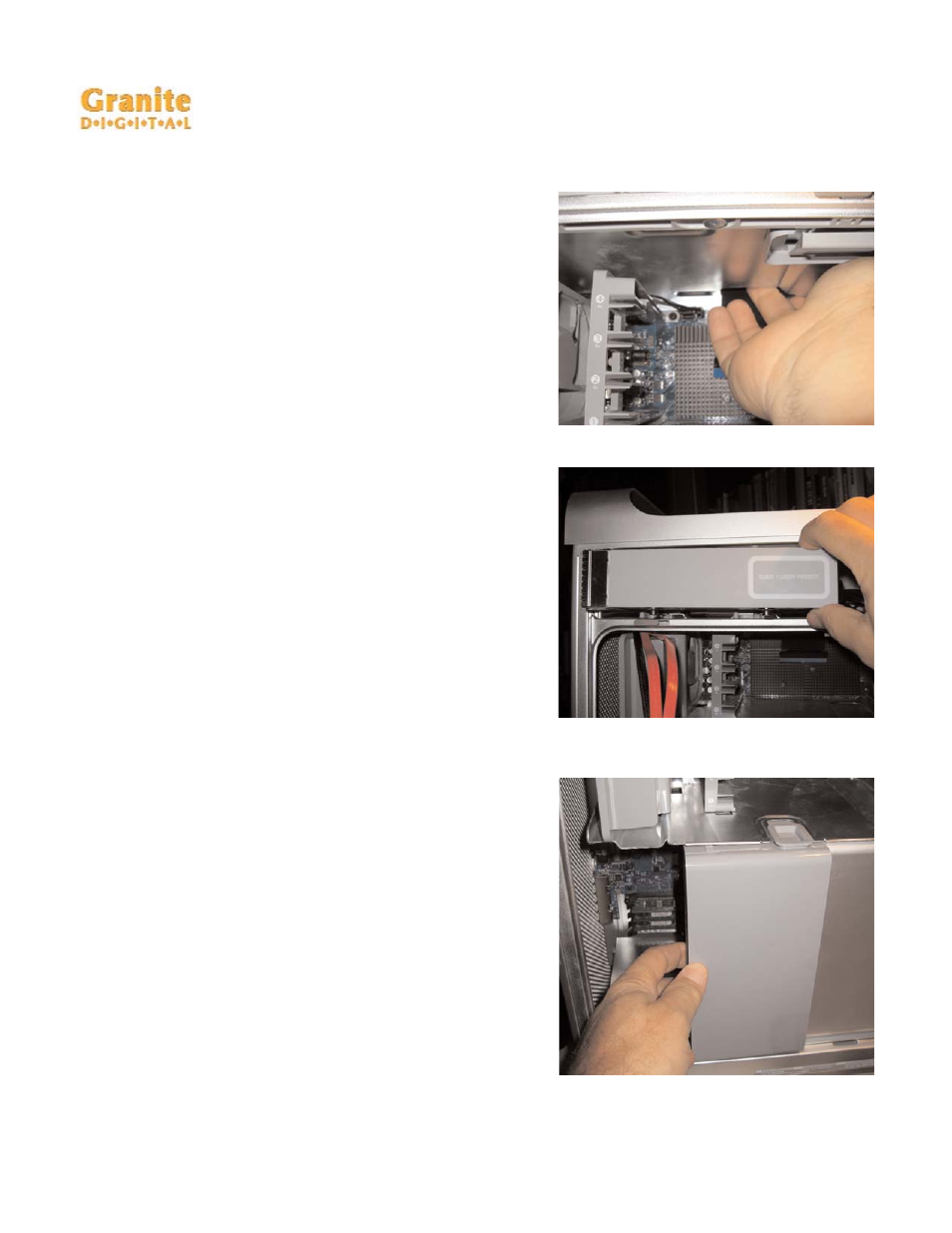

Use the data cables cut-out hole to
dislodge the DVD from it’s guides. The
DVD needs to be broken loose from it’s
locating pads. A little pressure on the
DVD’s rear quarter and the drive will pop
free.
Caution: gently feed the 40 pin
data cable through the hole.
The fan assembly pulls straight out.
Once the DVD has been dislodged
simply slide it out of the computer. The 4
pin power cable will need to be
disconnected before the DVD can be totally
removed. Caution should be taken with the
40 pin data cable as it feeds through the
hole.
