Page 11 Bracket, Drive, & Host Installation
Installing the Drives & Bracket

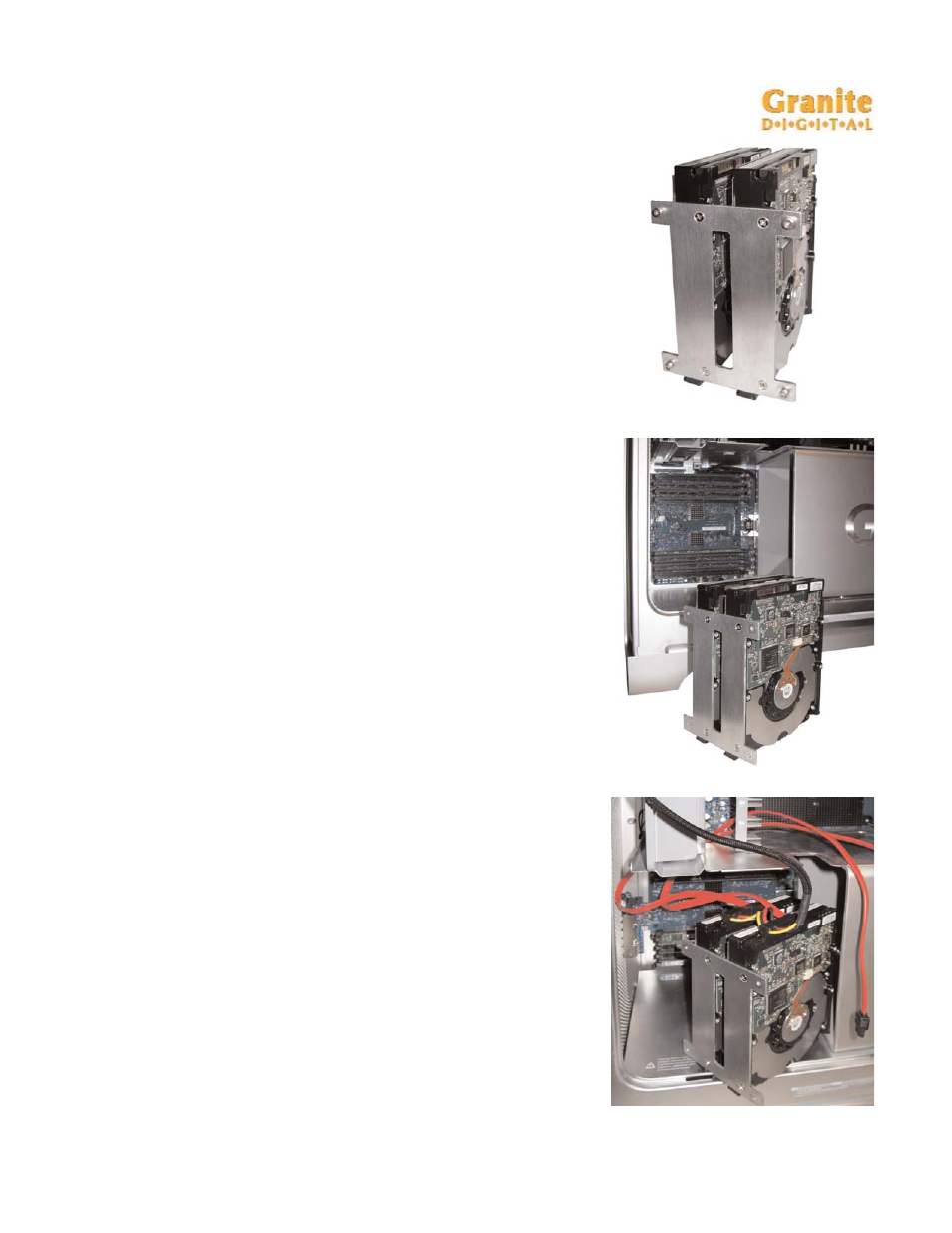

Attach the two SATA Drive Mechanisms to
the mounting plate using the supplied 6/32” flat
head screws.
Plug the two SATA Data Cables and the
SATA Power Cable into the drive mechanisms.
Note that the connectors only plug in one way.
Position the drive assembly so that you have
room to plug in the data and power connectors.
