Included in the Kit
The SATA Double Drive Internal Mounting Kit contains all the
necessary components to allow for installation of up to 2 SATA drives. The
only tools necessary are a metric set of Allen Wrenches and a #2 Phillips
Head Screwdriver.
Granite Digital • 3101 Whipple Rd. • Union City, Ca. 94587
www.granitedigital.com
Bracket, Drive, & Host Installation
Page 6

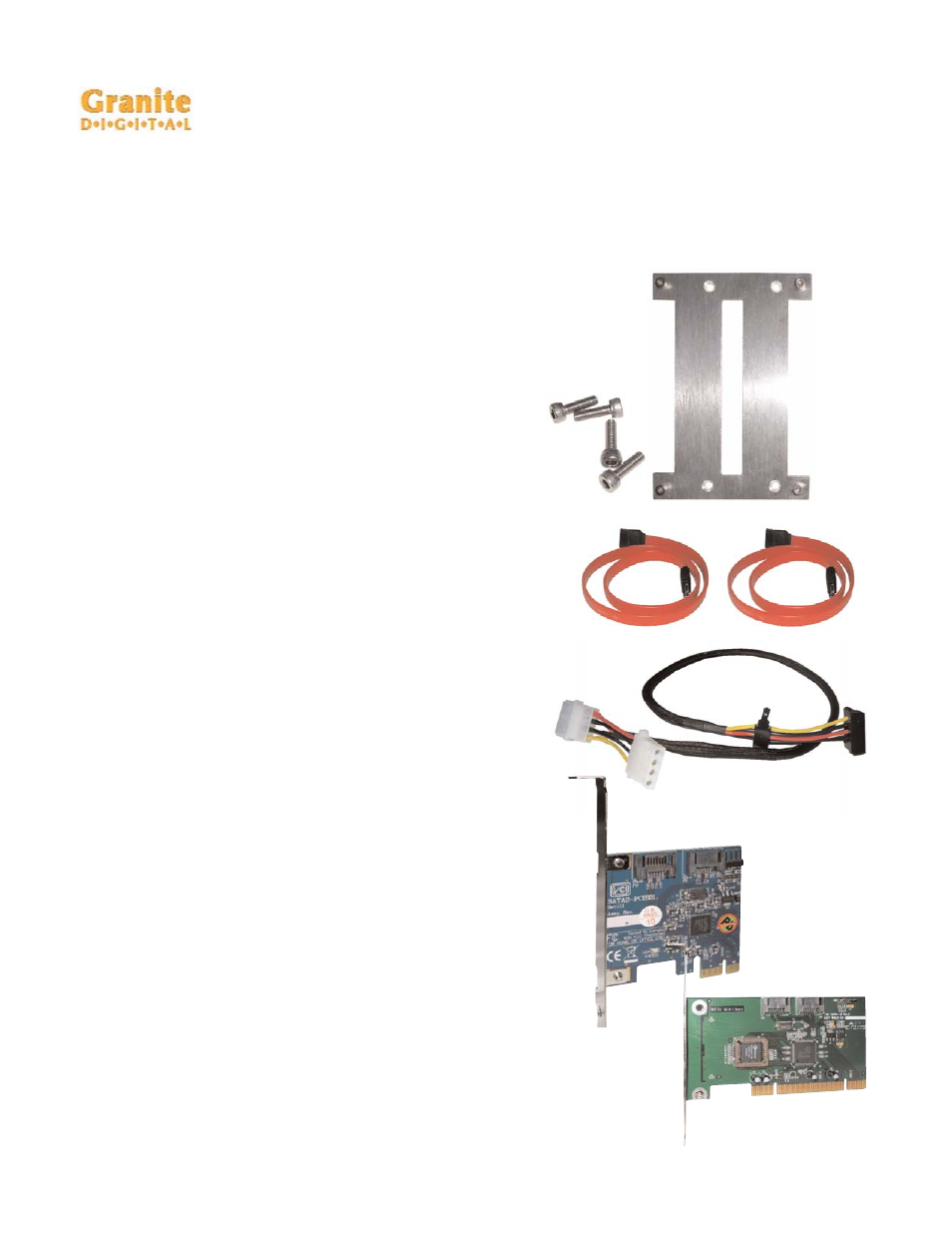

Drive Mounting Bracket & Screws
The SATA Double Drive Bracket holds up to
two standard 3.5” SATA Drive Mechanisms.
SATA 7 Pin Data Cables
Two SATA Data Cables are supplied
with the kit. The right angle side plugs into
the drive mechanism while the straight
connector plugs into the PCI Host.
SATA 4 Pin Power Cable
The SATA Power Cable is installed
between the DVD drive and the current power
cable. We are simply patching into the existing
power to supply power to the two SATA Drives.
Optional SATA PCI Host Adapters
The G5 uses two types of PCI buses. The
newer models introduced in late 2005 use the
PCI-e (Express) bus while the older G5’s use the
PCI / PCI-X type bus. These cards are totally
different and you must know which one the
computer uses before installation.
PCI-e (Express)
PCI
