Vehicle width guide lines
᭺
5 :
Indicate the vehicle width when backing up.
Predictive course lines
᭺
6 :
Indicate the predictive course when operating
the vehicle. The predictive course lines will be
displayed on the monitor when the steering
wheel is turned. The predictive course lines will
move depending on how much the steering
wheel is turned and will not be displayed while
the steering wheel is in the straight ahead posi-
tion.
The front view will not be displayed when the
vehicle speed is above 6 mph (10 km/h).
NOTE:
When the monitor displays the front view
and the steering wheel turns about 90 de-
grees or less from the straight ahead posi-
tion, both the right and left predictive
course lines
᭺
6 are displayed. When the
steering wheel turns about 90 degrees or
more, a line is displayed only on the oppo-
site side of the turn.

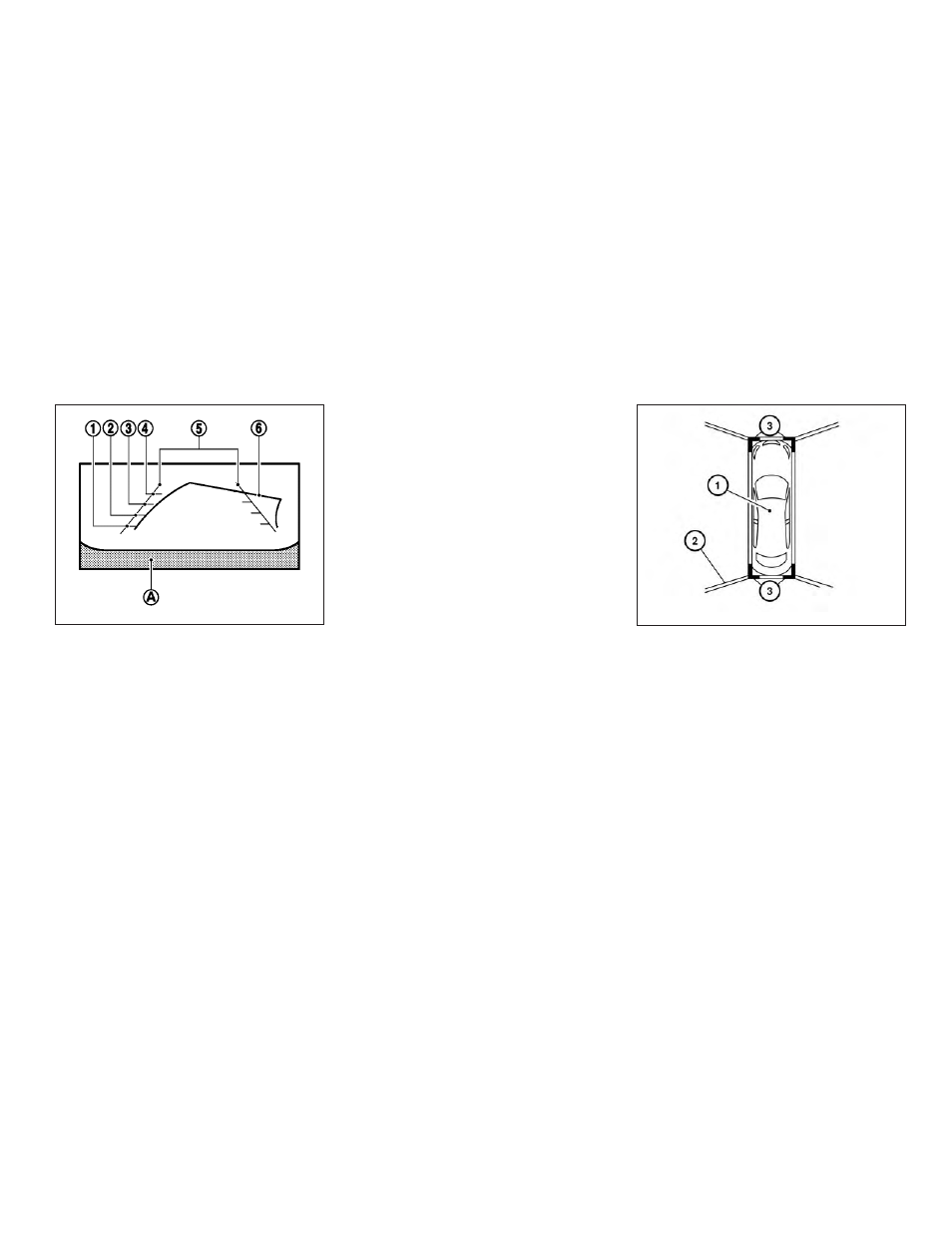

Bird’s-eye view
The bird’s-eye view shows the overhead view of
the vehicle, which helps confirm the vehicle po-
sition and the predicted course to a parking
space.
The vehicle icon
᭺
1 shows the position of the
vehicle. Note that the distance between objects
viewed in the bird’s-eye view may differ some-
what from the actual vehicle.
The areas that the cameras cannot cover
᭺
2 are
indicated in black.
After the ignition switch is placed in the ON
position, the non-viewable area
᭺
2 is highlighted
Rear view
SAA1896 LHA2547
