Instrument cluster – FORD 2011 Edge v.1 User Manual
Page 34

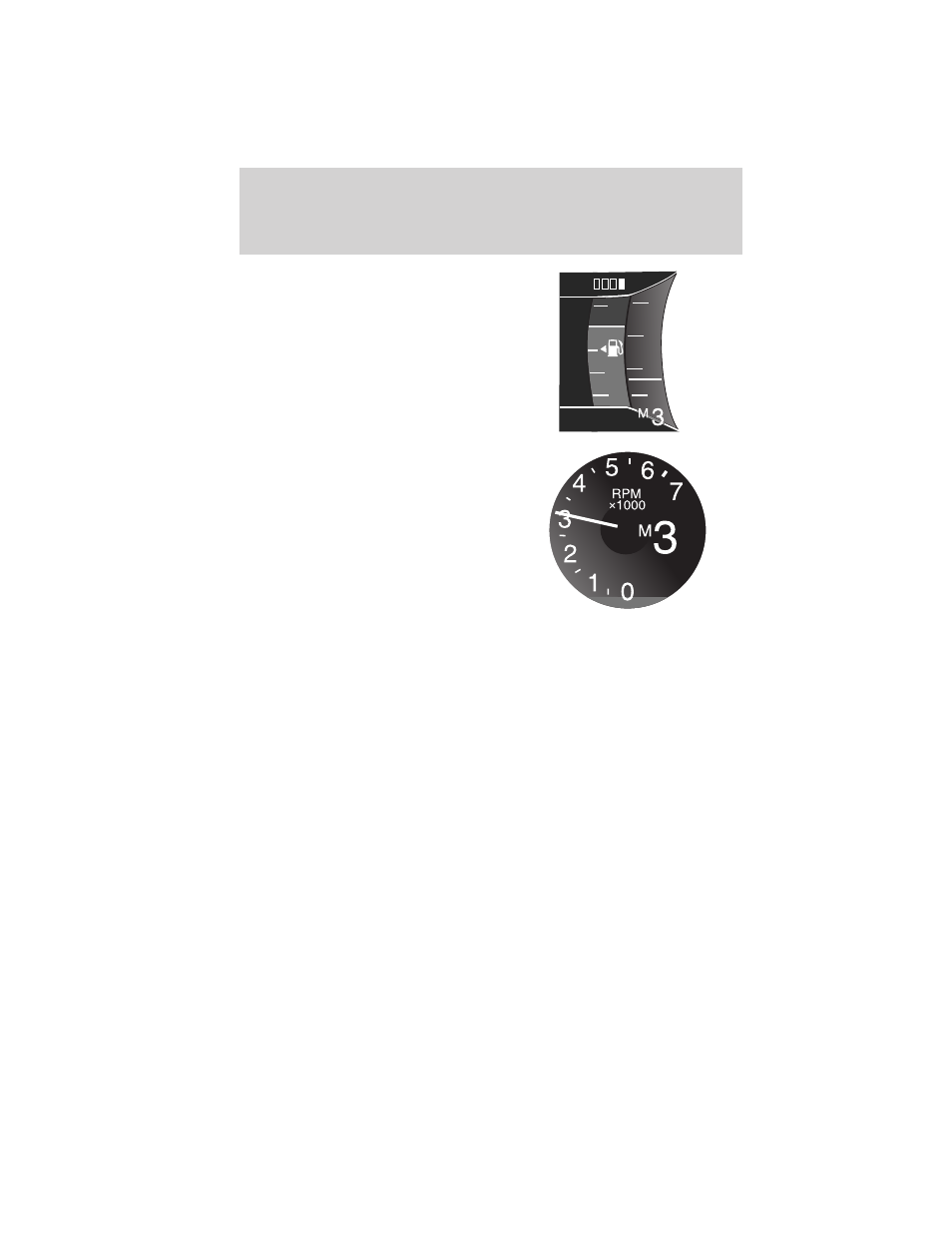

The selected gear will be displayed
at the bottom of the vertical bar
tachometer (if selected).
The selected gear will be displayed
within the full analog tachometer (if
selected).
Trip 1 & 2
Press the right arrow on the left steering wheel mounted button when
trip 1 & 2 is selected. The boxes in the upper right corner of the screen
indicate that there are multiple screens that you can navigate through.
Each press of the right arrow will navigate to the next screen until the
last screen is reached. The white highlighted box indicates which of the
screens you are currently viewing:
Choose the standard or enhanced display. See the Settings chart
following to reach the trip display settings.
F
6
4
RPM
1000
+
2
0
E
Instrument Cluster
34
2011 Edge (edg)
Owners Guide, 1st Printing
USA (fus)
